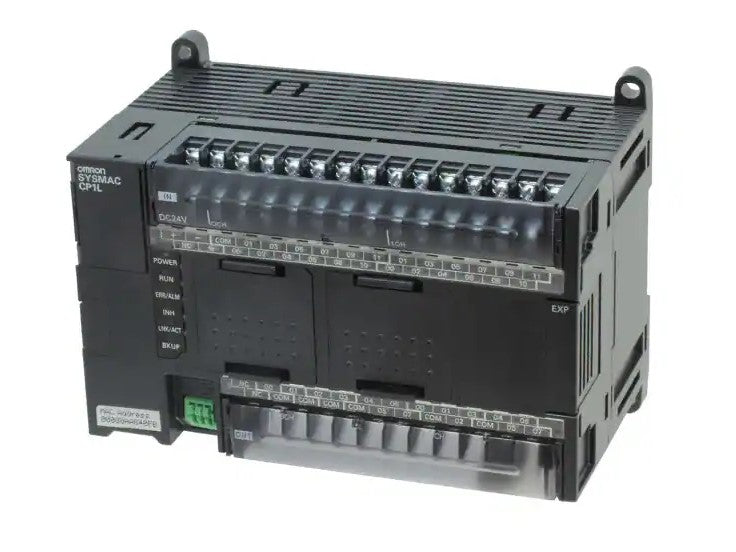

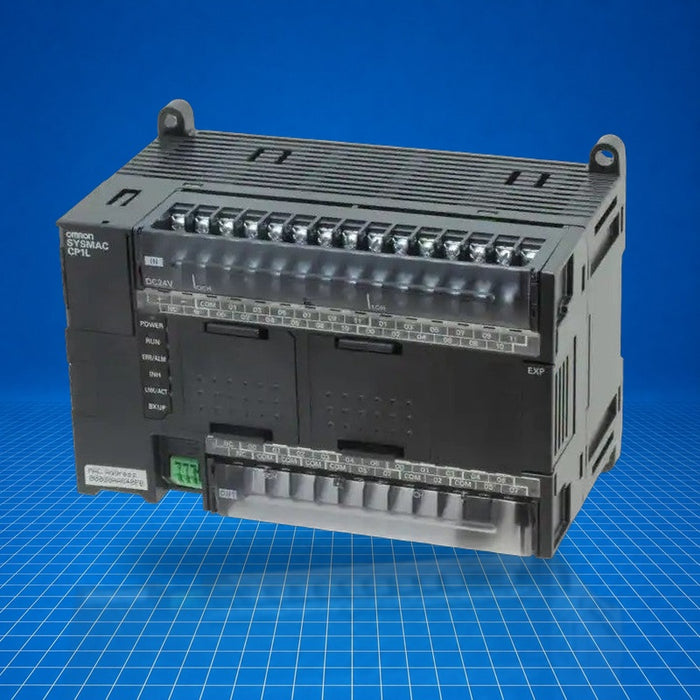

CP1L-EM40DR-D Omron
Original price
$450.00
-
Original price
$2,765.25
Original price
$450.00
$450.00
-
$2,765.25
Current price
$450.00
Trusted By
Product Details
Specifications provided for reference. Verify critical details against official manufacturer documentation before installation.
Product Overview
The CP1L-EM40DR-D is an Omron CP1L-EM series programmable logic controller (PLC) with embedded Ethernet and 40 built-in I/O points (24 inputs, 16 outputs, relay type). It serves as a compact CPU unit within mid-scale machine control systems. With 10K step program memory, high-speed counters up to 100 kHz on four axes, and two 100 kHz pulse outputs, it is applied in localized automation, packaging, and conveyor control where integrated Ethernet communications and moderate I/O density are sufficient. CP1L-EM40DR-D integrates control logic, I/O, and Ethernet communications in a single module.
Best Suited For
- Ethernet-connected localized machine control
- Packaging line sequence control
- Conveyor or indexing control with moderate I/O count
- High-speed counter and pulse output applications
Built-in I/O (IN/OUT)
24 / 16 (relay outputs)
Program memory
10K steps
High-speed counters
100 kHz, 4 axes
Pulse outputs
100 kHz, 2 axes
Power supply
24 V DC
Technical Specifications
I/O & Electrical
Inputs
24 (built-in)
Outputs
16 (relay outputs)
Communication & Power
Ethernet
Embedded Ethernet port (FINS/TCP, UDP)
Input voltage
24 V DC
Power consumption
20 W max
Physical & Environmental
High-speed counters
100 kHz, 4 axes
Pulse outputs
100 kHz, 2 axes
