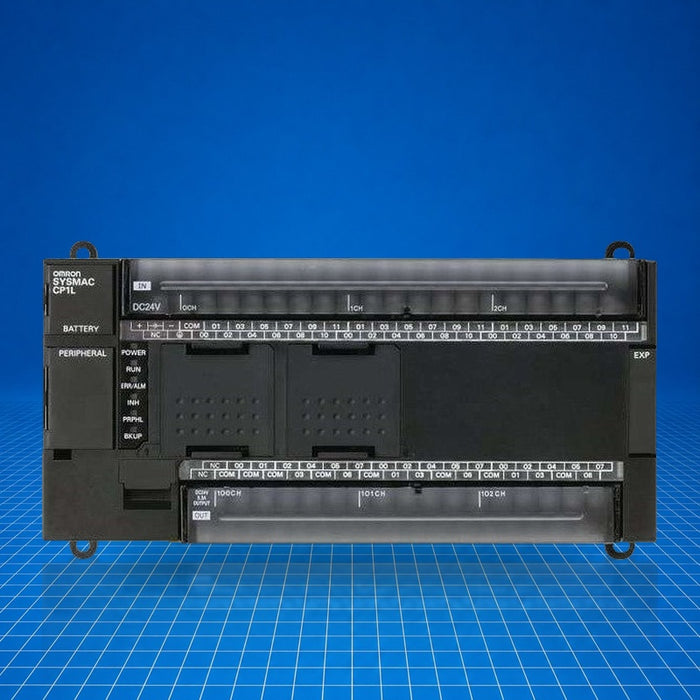

CP1L-M60DR-D Omron
Original price
$0.00
-
Original price
$627.41
Original price
$627.41
$0.00
-
$627.41
Current price
$627.41
Trusted By
Product Details
Specifications provided for reference. Verify critical details against official manufacturer documentation before installation.
Product Overview
The OMRON CP1L-M60DR-D is a compact micro programmable logic controller (PLC) from the CP1L series, featuring 60 built-in I/O points (36 inputs, 24 outputs) with sunk-transistor outputs and 24 V DC power supply. It provides a stored-program control method with ladder and structured text support, 10 K step program capacity, high-speed counters and pulse outputs, and connects via USB. It is typically used for mid-size machine control, discrete automation, and applications requiring compact I/O density.
Best Suited For
- Mid-size machine automation
- Discrete control with up to 60 I/Os
- Applications needing high-speed count and pulse output
- Installations powered by 24 V DC
Built-in I/O (In/Out)
36/24
Program capacity
10 K steps
High-speed counters
100 kHz, 4 axes
Pulse outputs
100 kHz, 2 axes
Technical Specifications
I/O & Electrical
Input voltage range
20.4 - 26.4 V DC
Power consumption
20 W max
Inrush current
30 A max (cold start, room temperature)
Communication & Power
USB port
Yes (built-in)
Memory capacity
10 K steps
Physical & Environmental
Ambient operating temperature
0 °C to 55 °C
Ambient humidity
10 % to 90 % (no condensation)
Vibration resistance
JIS C60068-2-6, 10-57 Hz 0.075 mm; 57-150 Hz 9.8 m/s², 80 min each axis
Shock resistance
JIS C60068-2-27, 147 m/s², 3 times each axis
Certifications
EN 61131-2
Conforms to EN 61131-2 (self-declaration)
