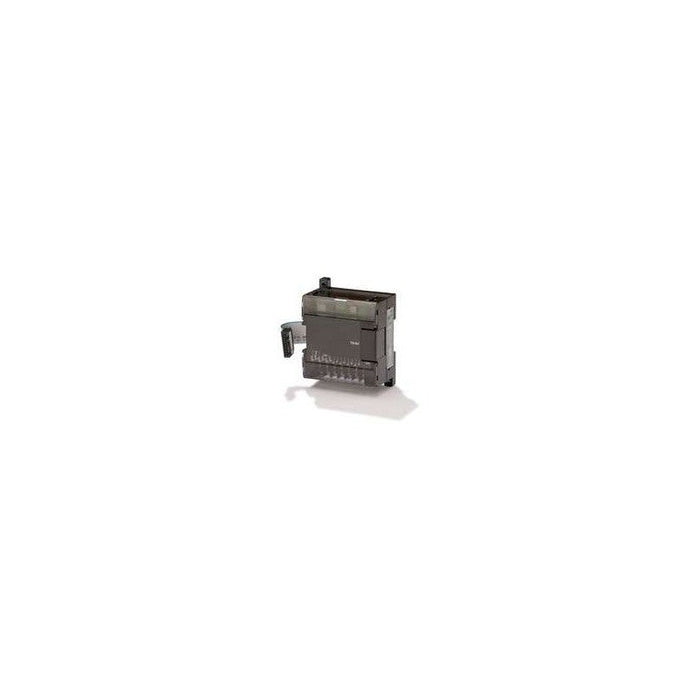

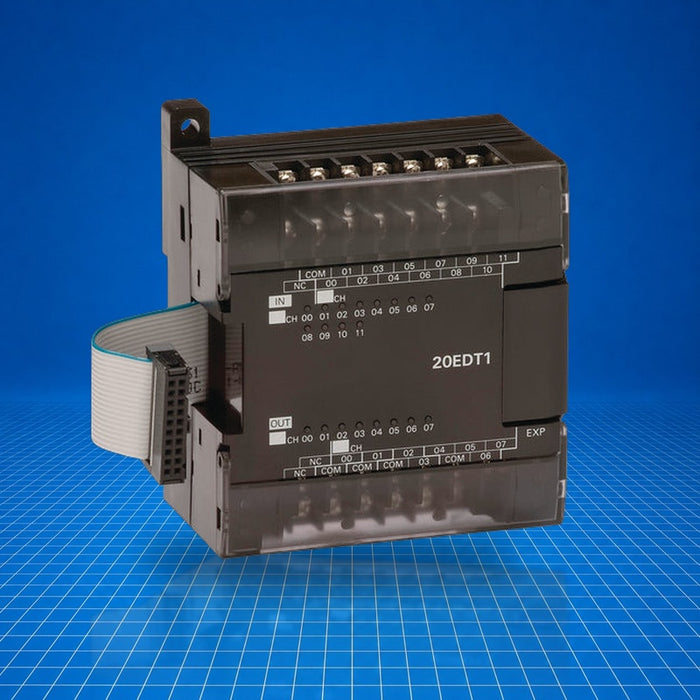

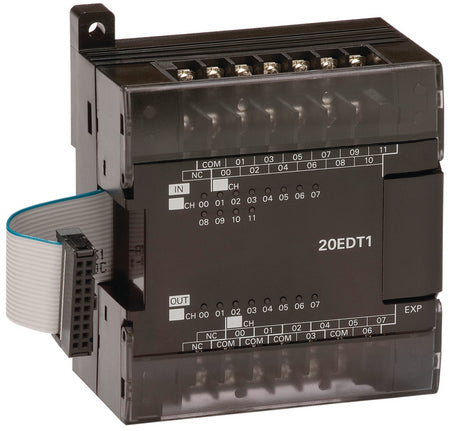

CP1W-20EDT1 Omron
Original price
$440.97
-
Original price
$479.97
Original price
$440.97
$440.97
-
$479.97
Current price
$440.97
Trusted By
Product Details
Specifications provided for reference. Verify critical details against official manufacturer documentation before installation.
Product Overview
The CP1W-20EDT1 is an Omron CP1 series Expansion I/O Unit providing 12 inputs and 8 transistor outputs (sourcing type). It attaches to CP1 and CP1H programmable controllers to add standard I/O capability for machine control. The module processes 24 VDC inputs and supplies sourcing outputs for actuator or signal interfacing. It is typically used in mid-size industrial applications such as packaging equipment, assembly machinery, and general automation where modular I/O expansion is required. CP1W-20EDT1 supports CP1-series controllers.
Best Suited For
- Expanding digital I/O capacity of CP1 or CP1H controllers
- Machine control where sourcing outputs are required
- 12-channel input plus 8-channel output expansion capability
- Standard industrial automation tasks with 24 VDC systems
Inputs / outputs
12 inputs / 8 sourcing outputs
Input voltage
24 V DC ± 10 %/-15 %
Output current
0.3 A per output (0.9 A per common)
Current consumption (24 V)
0.130 A
Technical Specifications
I/O & Electrical
Number of inputs
12
Number of outputs
8 sourcing transistor
Input voltage
24 V DC, +10 %, -15 %
Input impedance
4.7 kΩ
Input current
5 mA typical
ON/OFF voltage thresholds
ON ≥ 14.4 V DC; OFF ≤ 5.0 V DC
Output rating
0.3 A per output; 0.9 A per common; 1.8 A per unit
Leakage current
≤ 0.1 mA
Residual voltage
≤ 1.5 V
Output ON delay
≤ 0.1 ms
Output OFF delay
≤ 1 ms
Maximum simultaneous ON outputs
8 outputs (100 % load)
Communication & Power
Current consumption (24 V)
0.130 A
Physical & Environmental
Mounting
Backplane-mounted on CP1/CP1H rack
Weight
300 g
