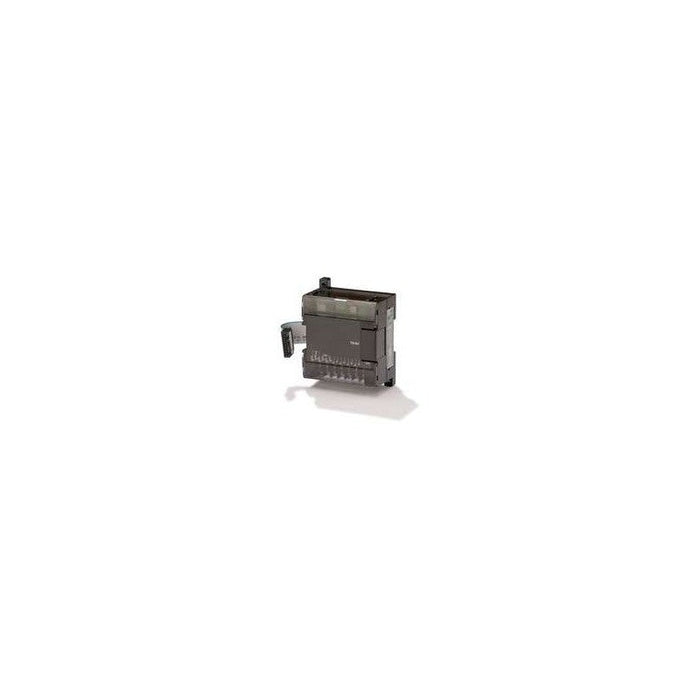

Product image is representative; revision or series may vary.
Contact us to request a specific version.
Contact us to request a specific version.

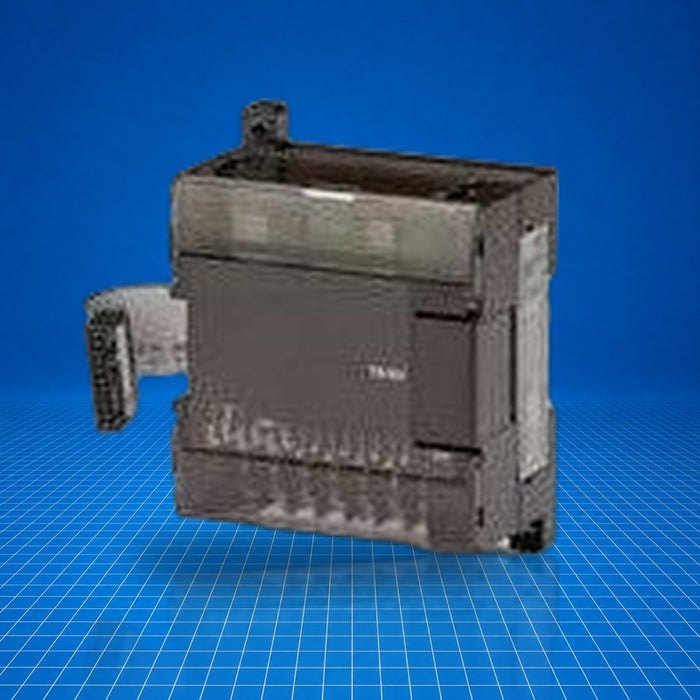

CP1W-40EDT Omron
Original price
$449.97
-
Original price
$824.97
Original price
$824.97
$449.97
-
$824.97
Current price
$824.97
Trusted By
Product Details
Specifications provided for reference. Verify critical details against official manufacturer documentation before installation.
Product Overview
The Omron CP1W-40EDT is a CP1E series expansion I/O unit providing 24 V DC transistor-type outputs (sinking) for compact PLC systems. It attaches to CP1E (E-type) CPU units to expand digital output capacity. In control systems, it adds up to 16 transistor outputs and is used in mid-scale machine control, discrete sequence automation, and modular I/O architectures. CP1W-40EDT units serve when additional digital outputs are required beyond the base CPU.
Best Suited For
- Mid-scale machine control requiring additional digital outputs
- Discrete logic sequencing expansions
- Modular I/O system scaling
- Compact PLC applications with sinking transistor outputs
Output type
Transistor (sinking)
Output points
16
Voltage range
4.5 to 30 V DC
Current per output
0.3 A
Unit common current
0.160 A (24 V supply)
Technical Specifications
I/O & Electrical
Output type
Transistor (sinking)
Output voltage range
4.5-30 V DC
Current per output
0.3 A
Common total current
0.9 A per common (ambient <50 °C)
Unit current consumption
0.160 A at 24 V DC
Leakage current
0.1 mA max.
Residual voltage
1.5 V max.
ON delay
0.1 ms max.
OFF delay
1 ms max.
Communication & Power
Power supply
24 V DC
Certifications
EN61131-2
Complies with EN61131-2 (self-declaration) per Omron specifications.
