Product Overview

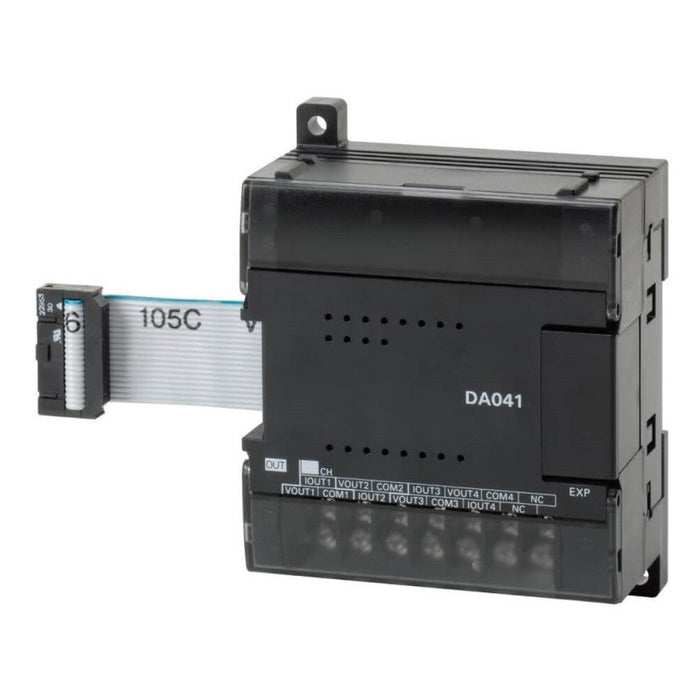

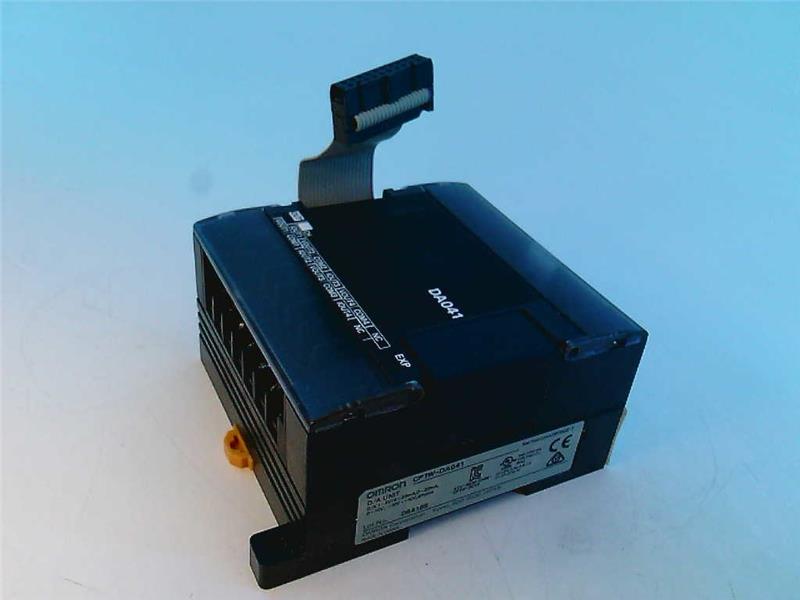

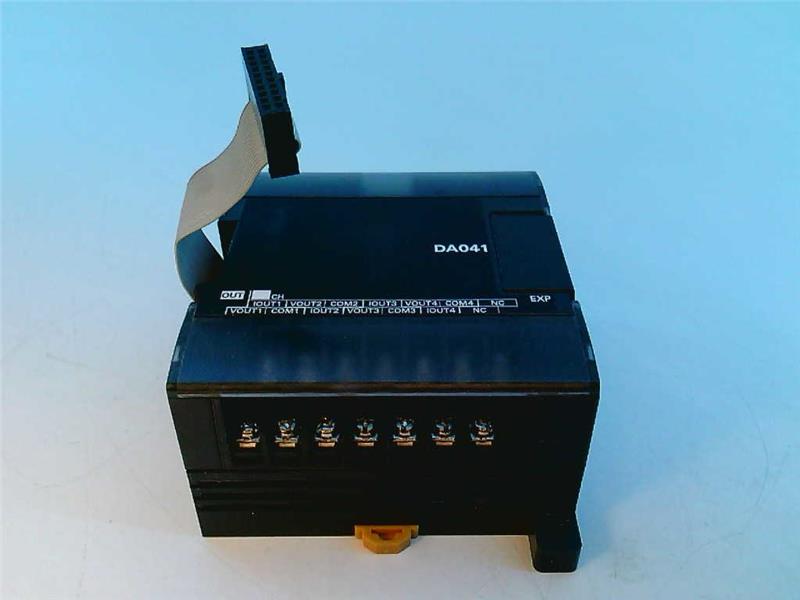

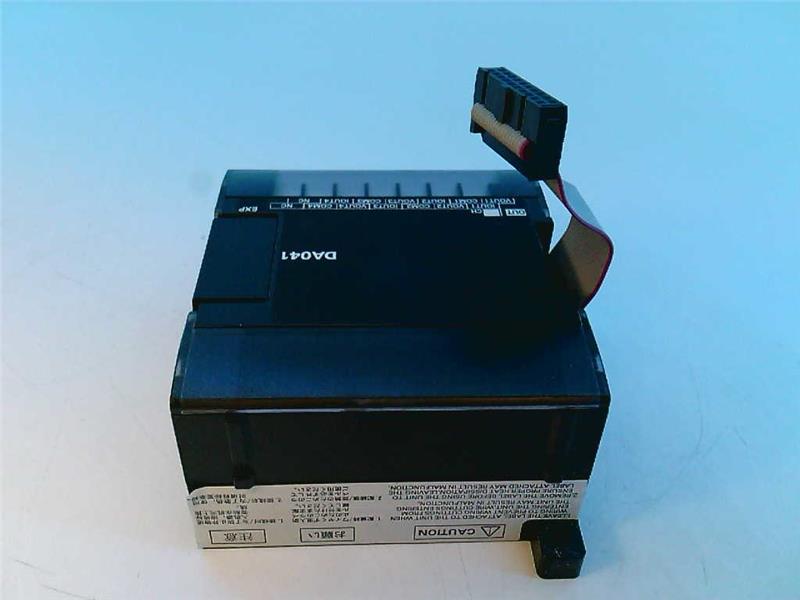

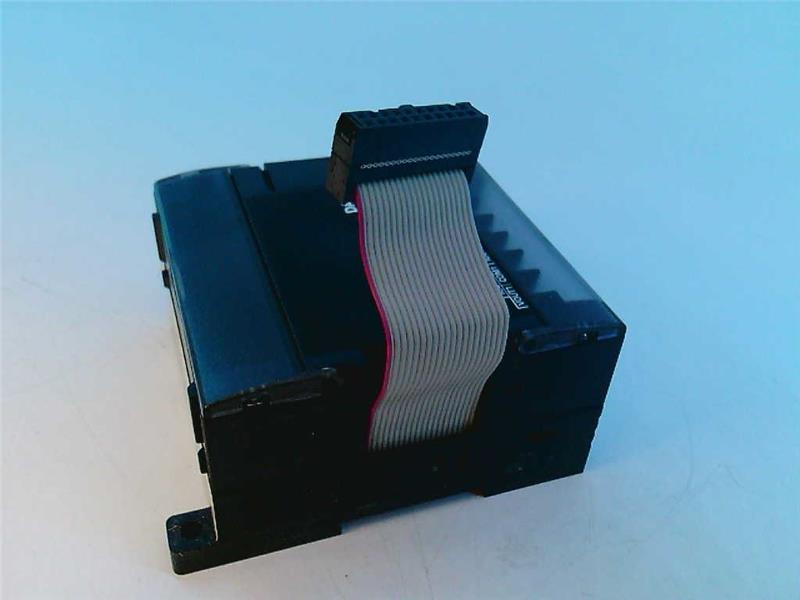

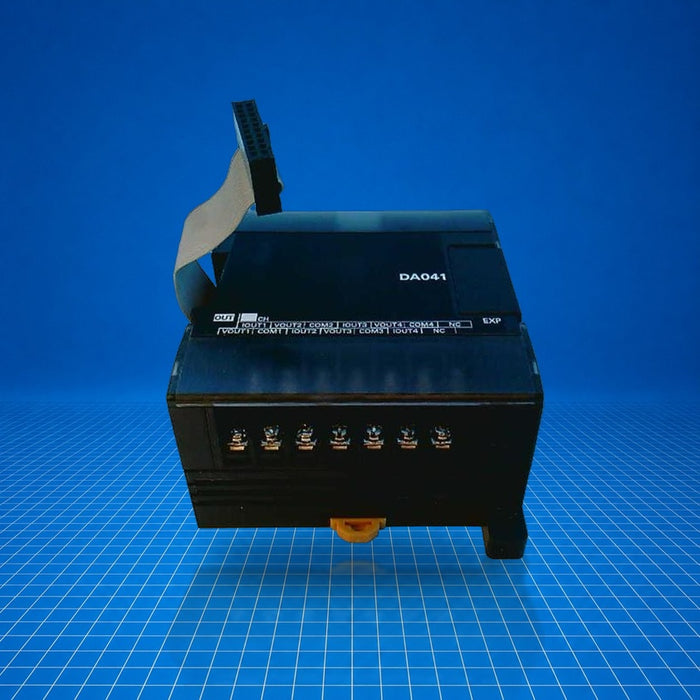

The CP1W-DA041 is an Omron CP1 series analog output expansion unit providing four independent analog outputs. It connects to CP1 programmable logic controllers to extend the system's ability to drive analog processes. The unit supports both voltage and current output types and is commonly applied in industrial control tasks such as proportional control of valves or actuators, process setpoint generation, and analog signal interfacing with field devices. CP1W-DA041 integrates seamlessly as part of the CP1 expansion ecosystem.
Best Suited For
- Proportional control of pneumatic or hydraulic valves
- Analog setpoint generation for variable frequency drives
- Signal output to recorders or chart recorders
- Testing or calibration systems requiring multiple analog outputs
Analog outputs
4 channels
Output ranges
1-5 V, 0-10 V, ±10 V, 0-20 mA, 4-20 mA
Resolution
1/6000 (full scale)
Conversion time
2 ms per point (8 ms for all)
Current consumption
5 V DC: 80 mA max; 24 V DC: 124 mA max
Technical Specifications
I/O & Electrical
Number of analog outputs
4
Output signal ranges
1-5 V, 0-10 V, -10-10 V, 0-20 mA, 4-20 mA
External load resistance (voltage output)
≥ 2 kΩ
External load resistance (current output)
≤ 350 Ω
Resolution
1/6000 (full scale)
Overall accuracy at 25 °C
±0.4 % full scale
Overall accuracy 0 °C to 55 °C
±0.8 % full scale
Communication & Power
D/A conversion time
2 ms per point (8 ms for all points)
Isolation
Photocoupler between analog outputs and internal circuits; no isolation among I/O
Power consumption (5 V DC)
80 mA max
Power consumption (24 V DC)
124 mA max
