CP1W-MAD11 Omron

Name: CP1W-MAD11 Omron
Brand: Omron
SKU: CP1W-MAD11
Price: 374.97 USD
Availability: InStock

$0.00 - $374.97

$374.97

$0.00 - $374.97

$374.97

Ships today if ordered by 1 PM CST

Overnight shipping available

Qty Available: (2) ✓ Verified Stock every 24hrs

Questions? (833) 800-7748

All products listed are sold by PLC Department, an independent supplier — not an authorized Omron distributor. Covered by our 1-year warranty. By purchasing you acknowledge our full disclaimer. Read & agree ↓

Ships from Texas, USA

Same-day by 1 PM CST

Tested & inspected

Every unit, before it ships

1-year warranty

Backed direct by us

30-day returns

Hassle-free RMA

Stock verified / 24 hrs

Real-time availability

Photos on request

Your exact unit, ~5 min

Trusted By

Product Details

Description · Specifications · Product Overview

Specifications provided for reference. Verify critical details against official manufacturer documentation before installation.

Product Overview

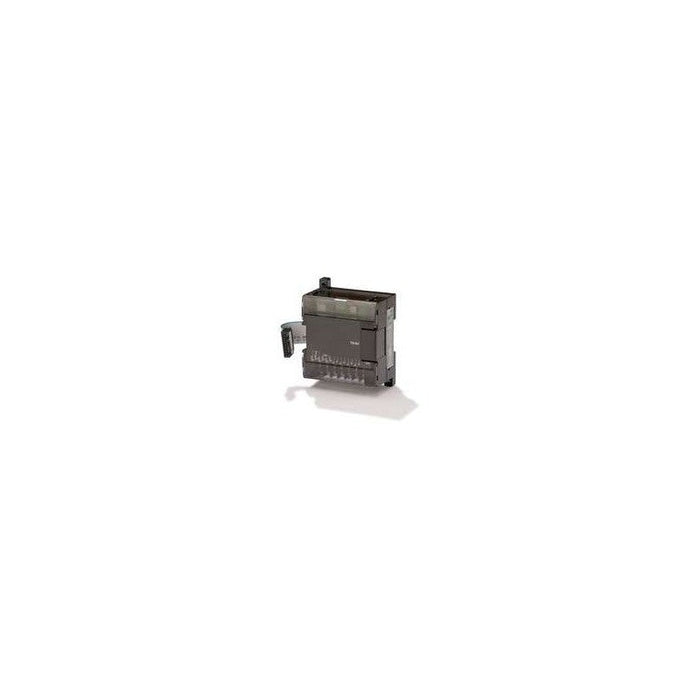

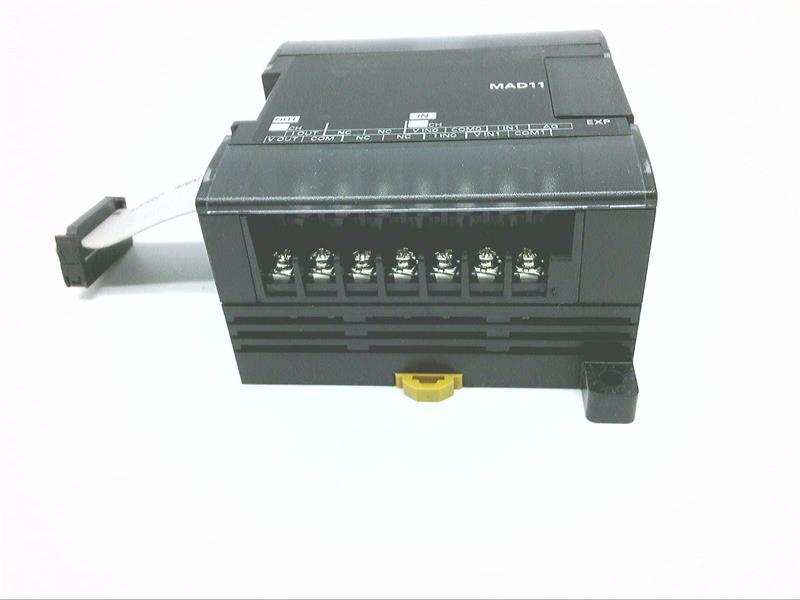

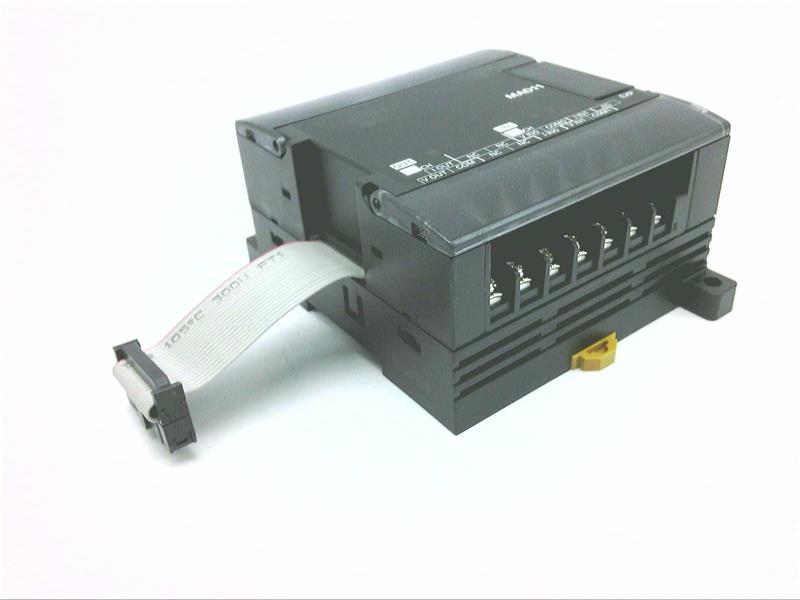

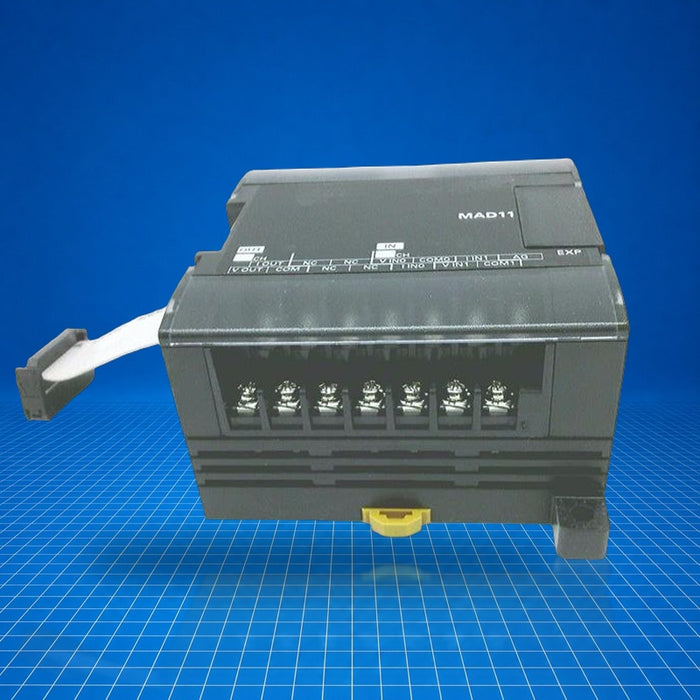

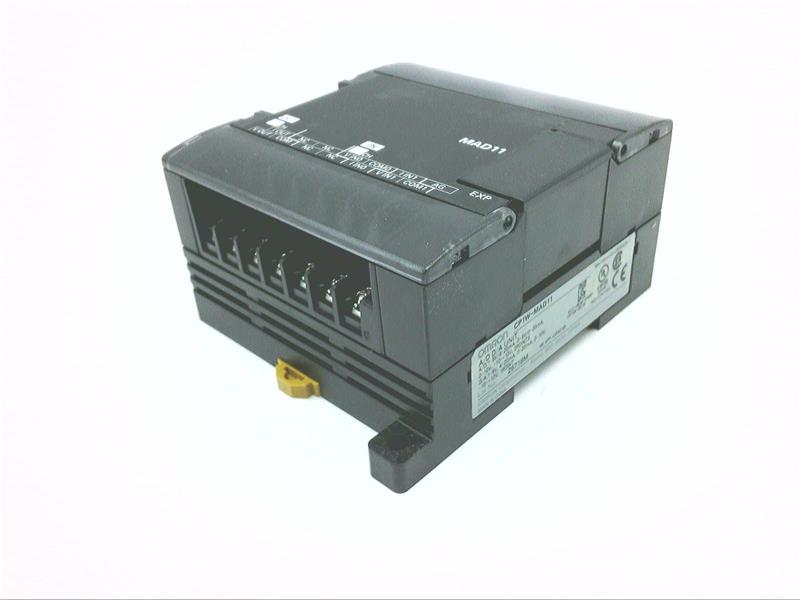

The Omron CP1W-MAD11 is an analog I/O expansion unit for the CP1 series of compact Programmable Logic Controllers (PLCs). It provides two analog inputs and one analog output, handling both voltage (0-5 V, 1-5 V, 0-10 V, ±10 V) and current (0-20 mA, 4-20 mA) signals. Conversion is 16-bit binary, with full-scale hexadecimal ranges defined. Precision is specified at 0.3 % full scale (25 °C) for inputs and 0.4 % for output. Typical use involves signal conditioning and analog interfacing within mid-range automation or control systems. CP1W-MAD11 integrates via rack expansion for CP1E/CP1L/CP1H CPUs, supporting averaging functions via DIP switch.

Best Suited For

Analog signal interfacing in CP1 PLC systems
Voltage and current input/output conditioning
Mid-range machine control requiring analog feedback
Process control applications with single analog output

Analog inputs

2 inputs

Analog output

1 output

Resolution

1/6000 (full scale)

Conversion time

2 ms/point (6 ms all points)

Input ranges

0-5 V, 1-5 V, 0-10 V, ±10 V; 0-20 mA, 4-20 mA

Technical Specifications

I/O & Electrical

Number of analog inputs

2 inputs (2 words allocated)

Input signal range

0-5 V, 1-5 V, 0-10 V, ±10 V; 0-20 mA, 4-20 mA

Max rated input

±15 V; ±30 mA

Input impedance

Voltage: 1 MΩ min.; Current: approx. 250 Ω

Input resolution

1/6000 (full scale)

Input accuracy (25 °C)

0.3 % full scale

Input accuracy (0-55 °C)

0.6 % full scale

Analog output

1 output (1 word allocated)

Output signal range

1-5 V, 0-10 V, ±10 V; 0-20 mA, 4-20 mA

Output load resistance

Voltage: ≥1 kΩ; Current: ≤600 Ω

Output impedance

0.5 Ω max.

Output resolution

1/6000 (full scale)

Output accuracy (25 °C)

0.4 % full scale

Output accuracy (0-55 °C)

0.8 % full scale

Communication & Power

Conversion time

2 ms/point (6 ms all points)

Current consumption

5 V DC: 83 mA max.; 24 V DC: 110 mA max.

Physical & Environmental

Averaging function

Supported (DIP switch per input)

Open-circuit detection

Supported

Certifications

EN61131-2
