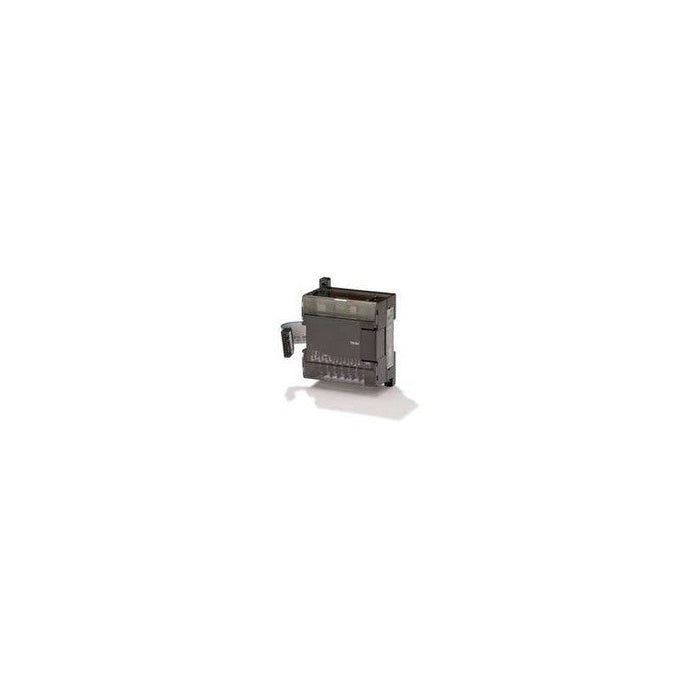

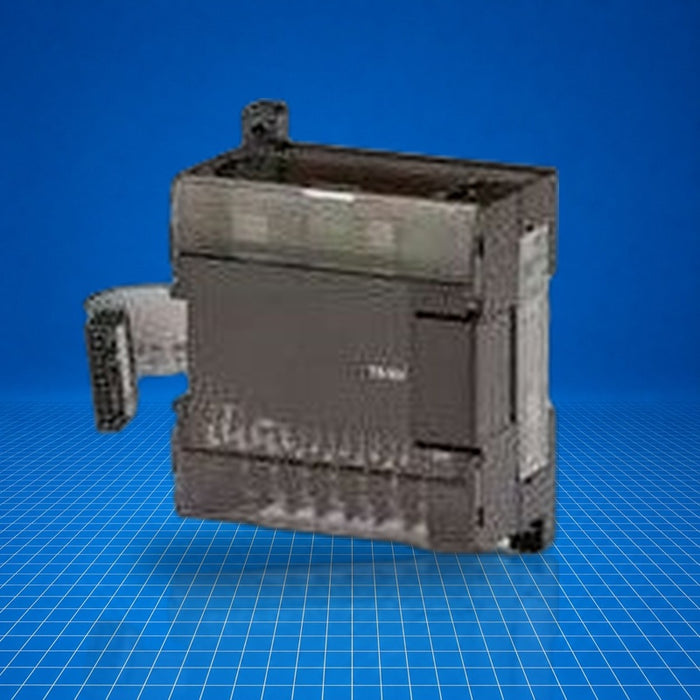

Product image is representative; revision or series may vary.
Contact us to request a specific version.
Contact us to request a specific version.
CP1W-MAD42 Omron
Original price
$1,289.75
-
Original price
$1,426.05
Original price
$1,289.75
$1,289.75
-
$1,426.05
Current price
$1,289.75
Trusted By
Product Details
Specifications provided for reference. Verify critical details against official manufacturer documentation before installation.
Product Overview
The CP1W-MAD42 is an Omron CP1 series analog I/O expansion module providing four analog inputs and two analog outputs. It interfaces with CP1 controllers (CP1E, CP1L, CP1H) to add analog measurement and control capability. It supports voltage and current input/output ranges across industrial-standard levels. It is deployed in compact machine automation applications requiring analog interfacing, such as tension control, inspection systems, and general-purpose analog signaling tasks. CP1W-MAD42 enables precise conversion within a CP1-based control architecture.
Best Suited For
- Adding analog I/O to CP1E/CP1L/CP1H PLCs
- Voltage or current signal acquisition and control
- Machine inspection equipment requiring analog feedback
- Tension or process control applications
Analog inputs / outputs
4 inputs, 2 outputs
Resolution (FS)
1/12 000
Input/Output ranges
0-5 V, 1-5 V, 0-10 V, ±10 V; 0-20 mA, 4-20 mA
Current consumption
5 V DC: 0.120 A; 24 V DC: 0.120 A
Weight
260 g
Technical Specifications
I/O & Electrical
Analog inputs
4
Analog outputs
2
Input signal range
0-5 V, 1-5 V, 0-10 V, ±10 V, 0-20 mA, 4-20 mA
Output signal range
1-5 V, 0-10 V, ±10 V, 0-20 mA, 4-20 mA
Input impedance
Voltage: ≥ 1 MΩ; Current: approx. 250 Ω
Output load resistance
≥ 2 kΩ
Resolution
1/12 000 (full scale)
Accuracy at 25 °C
Inputs: ±0.2 % FS; Outputs: ±0.3 % FS
Accuracy 0-55 °C
Inputs: ±0.5 % FS; Outputs: ±0.7 % FS
A/D conversion time
1 ms per point (6 ms for all)
Isolation method
Photocoupler between analog I/O and internal circuits; no isolation between I/O signals
Communication & Power
Current consumption (5 V DC)
0.120 A max.
Current consumption (24 V DC)
0.120 A max.
Physical & Environmental
Weight
260 g
Mounting
Expansion I/O unit, side-by-side connection via I/O connecting cable
Certifications
UL Listed (CP1W series)
