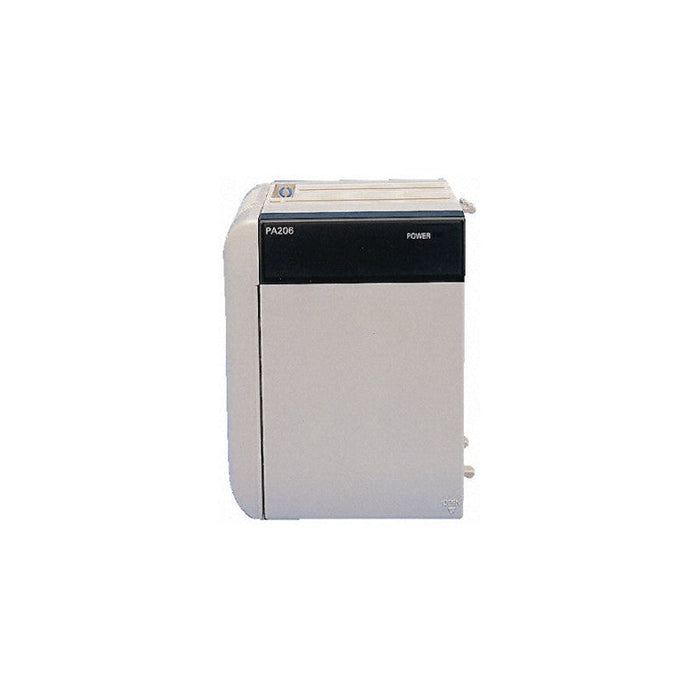

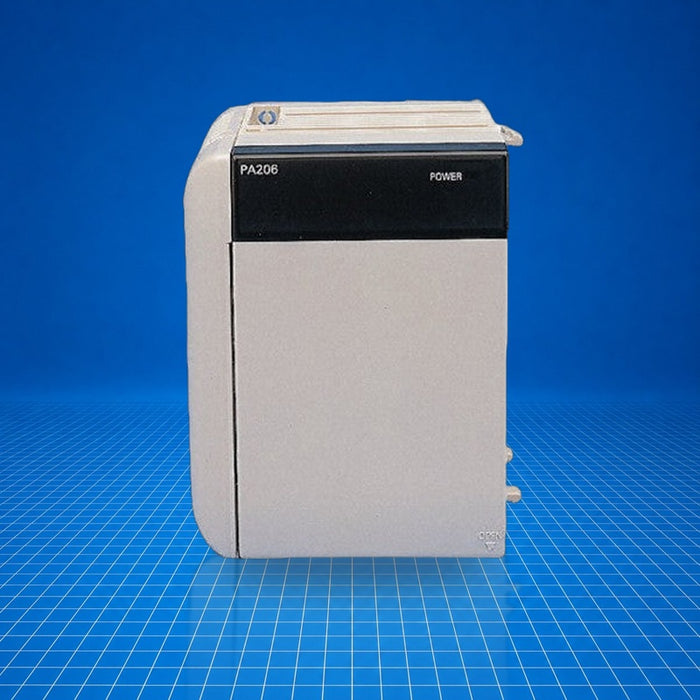

CQM1-PA206 Omron
Original price
$345.00
-
Original price
$472.98
Original price
$345.00
$345.00
-
$472.98
Current price
$345.00
Trusted By
Product Details
Specifications provided for reference. Verify critical details against official manufacturer documentation before installation.
Product Overview
The CQM1-PA206 is an AC power supply module in Omron's CQM1 PLC family. It converts 100-240 VAC input to provide dual DC outputs (5 VDC and 24 VDC) for powering CPUs and peripheral modules within the CQM1 programmable controller rack. The part supports industrial control applications requiring reliable auxiliary and logic power supply, such as discrete control panels, conveyor systems, and machine automation. This AC power supply supports a broad input range suited for global deployment. Part number CQM1-PA206.
Best Suited For
- Powering CQM1 CPU and expansion modules
- Control panels with mixed 5 V and 24 V logic loads
- Industrial environments with wide AC supply variability
- Applications requiring immunity to brief power interruptions
Input voltage range
100-240 VAC (operating 85-264 VAC)
Output capacity
5 VDC @ 6 A and 24 VDC @ 0.5 A (total 30 W)
Power consumption
120 VA max.
Ambient operating temperature
0 °C to 55 °C
Weight
0.57 kg (1.25 lbs)
Technical Specifications
I/O & Electrical
Input voltage
100-240 VAC (operating 85-264 VAC)
Frequency
50/60 Hz (47-63 Hz)
Inrush current
30 A max.
Power consumption
120 VA max.
Output 5 VDC current
6 A
Output 24 VDC current
0.5 A
Total output capacity
30 W
Communication & Power
Insulation resistance
20 MΩ min at 500 VDC (AC external to GR)
Dielectric strength
2,300 VAC (AC external to GR), 1,000 VAC (DC external to GR)
Noise immunity
Conforms to IEC 61000-4-4
Physical & Environmental
Vibration resistance
10-57 Hz, 0.075 mm; 57-150 Hz, 9.8 m/s²
Shock resistance
147 m/s² (X, Y, Z)
Ambient temperature
Operating 0 °C to 55 °C; Storage -20 °C to 75 °C
Weight
0.57 kg (1.25 lbs)
