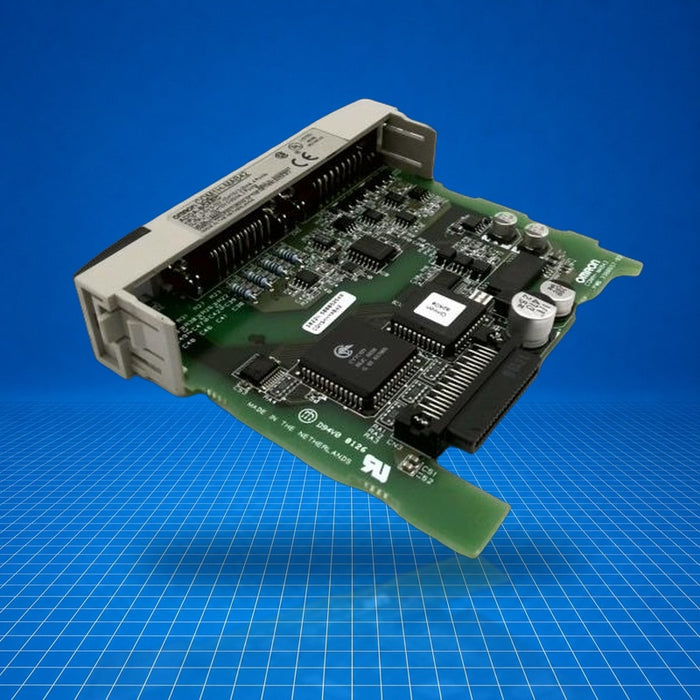

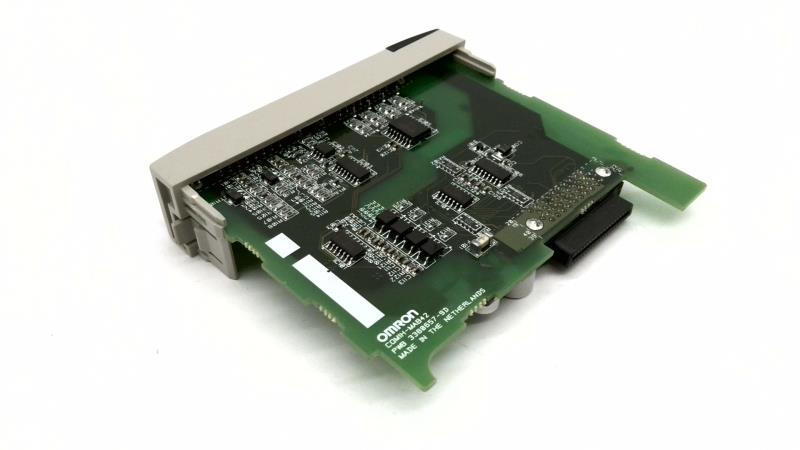

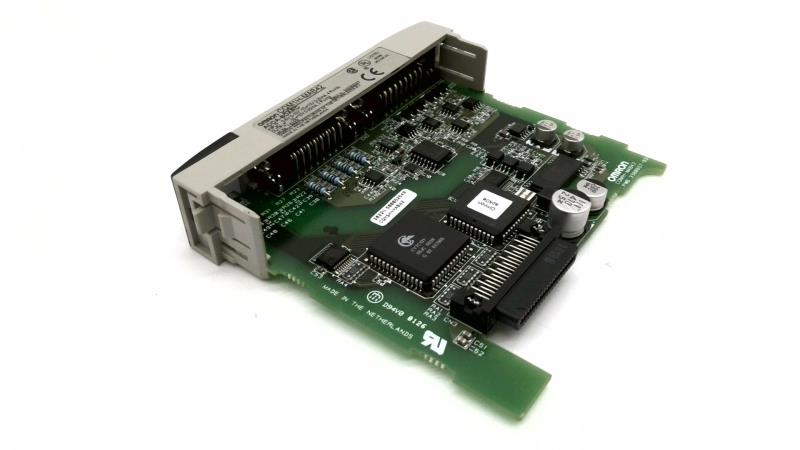

CQM1H-MAB42 Omron
Original price
$893.72
-
Original price
$2,351.72
Original price
$893.72
$893.72
-
$2,351.72
Current price
$893.72
Trusted By
Product Details
Specifications provided for reference. Verify critical details against official manufacturer documentation before installation.
Product Overview
The CQM1H-MAB42 is an analog I/O expansion board for Omron's CQM1H series programmable controllers. Installed in the inner board slot (slot 2) of CQM1H-CPU51 or CPU61 CPUs, it provides four analog inputs and two analog outputs for integration of analog sensors and actuators. It enables signal conversion and processing within compact PLC systems and is typically used in industrial control tasks such as process variable monitoring, analog control loops, and precision signal interfacing in mid-scale automation systems. Part number CQM1H-MAB42.
Best Suited For
- Integration with CQM1H-CPU51/CPU61 systems
- Analog sensor signal acquisition (e.g. temperature, pressure, level)
- Analog control output to actuators or valves
- Compact control racks with inner board slots
Analog inputs
4
Analog outputs
2
Input voltage/current ranges
-10-10 V; 0-10 V; 0-5 V; 0-20 mA
Current consumption (5 VDC)
400 mA
Technical Specifications
I/O & Electrical
Analog input count
4
Analog input ranges
-10 to 10 V; 0 to 10 V; 0 to 5 V; 0 to 20 mA
Analog output count
2
Analog output ranges
-10 to 10 V; 0 to 20 mA
Communication & Power
Current consumption (5 VDC)
400 mA
Physical & Environmental
Compatible CPUs
CQM1H-CPU51, CQM1H-CPU61
Mounting
Inner board slot 2
Weight
0.09 kg
Dimensions
25 mm × 110 mm × 107 mm (W × H × D)
Certifications
EN 61131-2
Complies with EN 61131-2 (self-declaration).
