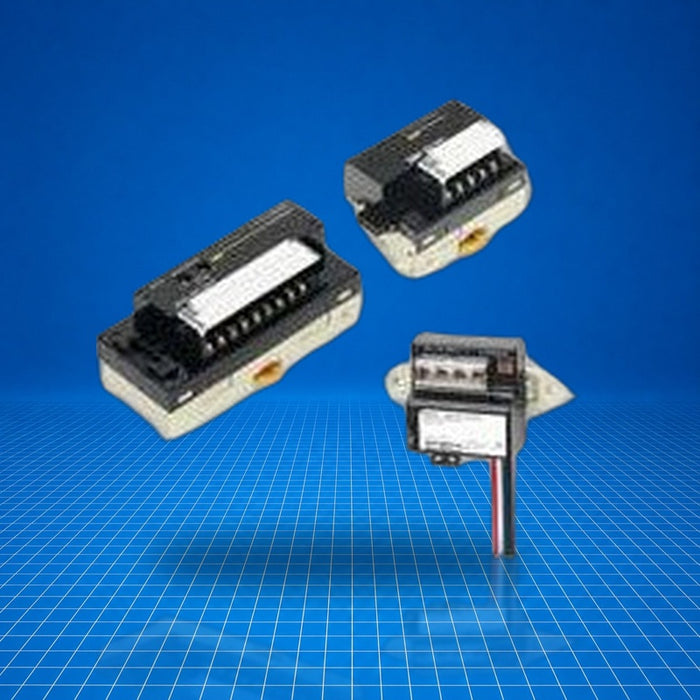

CRT1-ID16 Omron

Original price $387.00 - Original price $400.00
Original price
$400.00
$387.00 - $400.00
Current price $400.00
Surplus - Tested (With Warranty)
Need a Specific Revision?
$400.00
123 in stock
New / Open-Box Surplus
Need a Specific Revision?
$387.00
3 in stock
Ships today if ordered by 1 PM CST
Overnight shipping available
Qty Available: (123) ✓ Verified Stock every 24hrs
Questions? (833) 800-7748

All products listed are sold by PLC Department, an independent supplier — not an authorized Omron distributor. Covered by our 1-year warranty. By purchasing you acknowledge our full disclaimer. Read & agree ↓

Ships from Texas, USA
Same-day by 1 PM CST
Tested & inspected
Every unit, before it ships
1-year warranty
Backed direct by us
30-day returns
Hassle-free RMA
Stock verified / 24 hrs
Real-time availability
Photos on request
Your exact unit, ~5 min
Trusted By

Product Details

Description · Specifications · Product Overview

Specifications provided for reference. Verify critical details against official manufacturer documentation before installation.

Product Overview

The CRT1-ID16 is an Omron digital input module in the CRT1 series of CompoNet I/O slave units. It provides 16 field inputs in a DIN-rail mounted unit, ideal for integration into CompoNet-based control systems. In a control system, CRT1-ID16 serves as a remote I/O module receiving discrete sensor signals (NPN or PNP selectable) and relaying them to the network. Typical applications include distributed sensing in factory automation, machine control, and remote monitoring systems.

Best Suited For

  • CompoNet I/O expansion
  • Distributed sensor input collection
  • Factory or machine control systems
  • DIN-rail panel mounting
Inputs
16
Internal common type
Selectable NPN or PNP
Communications supply voltage
14-26.4 V DC
I/O supply current (24 V)
55 mA max.
Weight
141 g max.

Technical Specifications

I/O & Electrical

I/O capacity
16 inputs
ON voltage
15 V DC min.
OFF voltage
5 V DC max.
OFF current
1 mA max.
Input current (24 V)
6.0 mA max./input
Input current (17 V)
3.0 mA max./input
ON delay
1.5 ms max.
OFF delay
1.5 ms max.
Isolation method
Photocoupler
Input indicator
LED (yellow)

Communication & Power

Communications power supply voltage
14-26.4 V DC
Communications power supply current (24 V)
55 mA max.
Communications power supply current (14 V)
85 mA max.
I/O power supply current (24 V)
5 mA max.

Physical & Environmental

Weight
141 g max.
Mounting
DIN-rail mounting
Ambient operating temperature
-10 to 55 °C
Ambient operating humidity
25 to 85 % (no condensation)
Vibration resistance
10 to 60 Hz ±0.7 mm; 60 to 150 Hz 50 m/s²
Shock resistance
150 m/s² (3 times each on 3 axes)
Dielectric strength
500 VAC (between isolated circuits)
Insulation resistance
20 MΩ min. (between isolated circuits)
Storage temperature
-25 to 65 °C
Storage humidity
25 to 85 % (no condensation)
Terminal block screw tightening torque
M3 screws: 0.5 Nm
