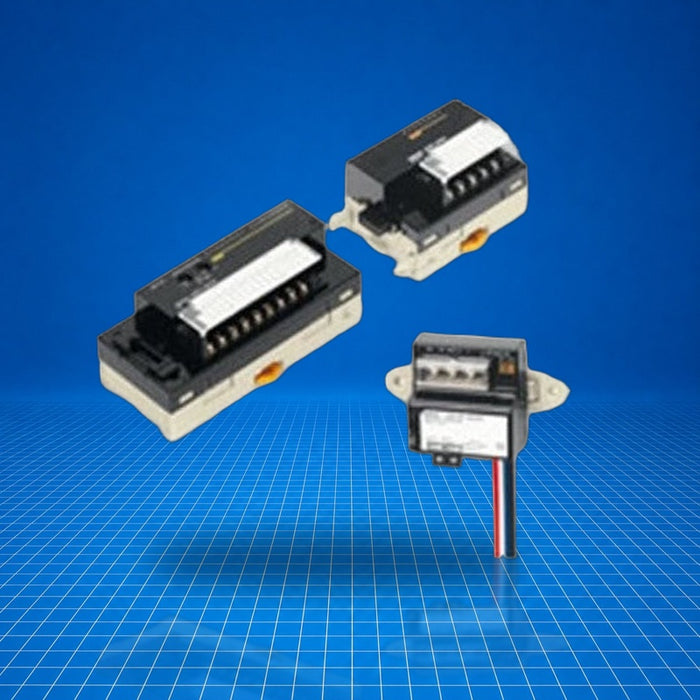

CRT1-MD16 Omron
Original price
$962.47
-
Original price
$2,052.14
Original price
$962.47
$962.47
-
$2,052.14
Current price
$962.47
Trusted By
Product Details
Specifications provided for reference. Verify critical details against official manufacturer documentation before installation.
Product Overview
The CRT1-MD16, by Omron, is a compact digital I/O slave module combining eight inputs and eight outputs on a two-tier screw terminal block. It integrates into Omron's CompoNet distributed I/O architecture. The unit operates as an expansion or remote I/O device-communicating with a programmable controller to handle field signals. Typical applications include mid-bus signal aggregation, remote I/O on machine units, and use in distributed control panels where both input and output points are consolidated in one module.
Best Suited For
- CompoNet-based distributed I/O networks
- Localizing field I/O within machine control panels
- Consolidating inputs and outputs in compact sites
- Use with NPN or PNP field devices
I/O points
8 inputs / 8 outputs
Mounting
DIN-track
Weight
170 g max.
Communications supply current
35 mA (24 V DC) / 60 mA (14 V DC)
Output rating
0.5 A/output, 2 A common
Technical Specifications
I/O & Electrical
Input I/O capacity
8 inputs
Output I/O capacity
8 outputs
Internal I/O common
NPN / PNP
ON voltage (inputs)
15 V DC min.
OFF voltage (inputs)
5 V DC max.
Input current
6.0 mA max./input at 24 V DC; 3.0 mA min./input at 17 V DC
OFF current (inputs)
1.0 mA max.
ON delay (inputs)
1.5 ms max.
OFF delay (inputs)
1.5 ms max.
Isolation method (I/O)
Photocoupler
Input indicator
LED (yellow)
Rated output current
0.5 A/output, 2 A/common
Residual voltage (outputs)
1.2 V max. (0.5 A DC)
Leakage current (outputs)
0.1 mA max.
ON delay (outputs)
0.5 ms max.
OFF delay (outputs)
1.5 ms max.
Output indicator
LED (yellow)
Communication & Power
Communications power supply current consumption
35 mA max. at 24 V DC; 60 mA max. at 14 V DC
I/O power supply current consumption
5 mA max. at 24 V DC
Physical & Environmental
Installation
DIN-track mounting
Weight
170 g max.
