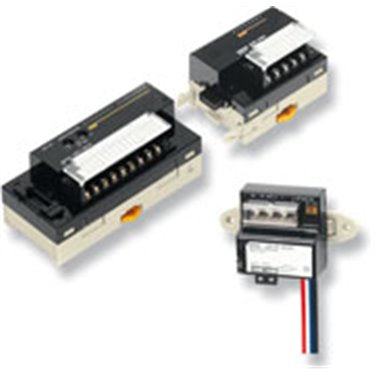

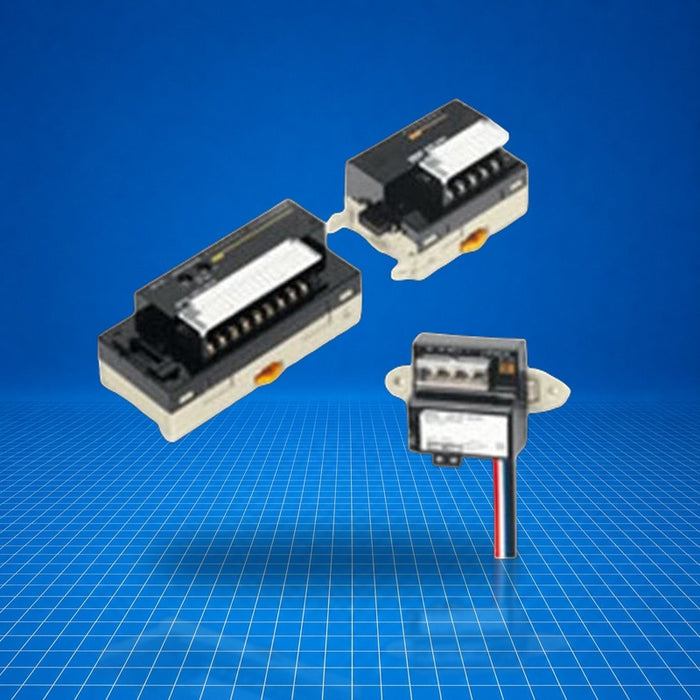

CRT1-TS04T Omron
Original price
$1,058.75
-
Original price
$1,097.25
Original price
$1,058.75
$1,058.75
-
$1,097.25
Current price
$1,058.75
Trusted By
Product Details
Specifications provided for reference. Verify critical details against official manufacturer documentation before installation.
Product Overview
The CRT1-TS04T is an Omron CompoNet temperature input unit, providing four thermocouple inputs selectable among R, S, K, J, T, E, B, N, L, U, W, and PL2 types. It serves as a slave module in distributed control networks, converting analog temperature signals to digital data for PLCs via CompoNet. Typical applications include machine temperature monitoring, process control, and thermal data collection in industrial environments. CRT1-TS04T integrates smart functions such as scaling, comparator, integrator, and open-circuit detection to offload ladder logic processing.
Best Suited For
- Distributed temperature monitoring via CompoNet
- On-machine temperature data acquisition
- Process control with built-in scaling/comparator processing
- Environments requiring multiple thermocouple types
- Quick maintenance using detachable terminal block
Inputs
4 thermocouple channels
Selectable input types
R, S, K, J, T, E, B, N, L, U, W, PL2
Conversion cycle
250 ms/4 points
Communication power supply
14 to 26.4 V DC
I/O power supply
20.4 to 26.4 V DC
Technical Specifications
I/O & Electrical
Input type
Switchable among R, S, K, J, T, E, B, N, L, U, W, PL2 thermocouples
Conversion cycle
250 ms for 4 points
Temperature conversion data
Binary (4-digit hex normal mode, 8-digit hex 1/100 mode)
Communications power supply voltage
14 to 26.4 V DC
I/O (sensor) power supply voltage
20.4 to 26.4 V DC
Communications supply current
75 mA max at 24 V DC; 110 mA max at 14 V DC
Communication & Power
Isolation method
Photocoupler isolation between input & communication; between temperature inputs
Physical & Environmental
Mounting
35 mm DIN-track or bracket or M4 screws
Weight
148 g max.
Ambient operating temperature
-10 to 55 °C
Ambient operating humidity
25% to 85% (no condensation)
Storage temperature
-25 to 65 °C
Storage humidity
25% to 85% (no condensation)
Vibration resistance
10-60 Hz double-amplitude 0.7 mm; 60-150 Hz 50 m/s² (80 min XYZ)
Shock resistance
150 m/s² (3 times each, 6 directions)
Dielectric strength
500 VAC between isolated circuits
Insulation resistance
20 MΩ min. between isolated circuits
Terminal screw torque
0.5 Nm (M3) for wiring & mounting
