CS1W-BC083 Omron
Product Details
Specifications provided for reference. Verify critical details against official manufacturer documentation before installation.
Product Overview

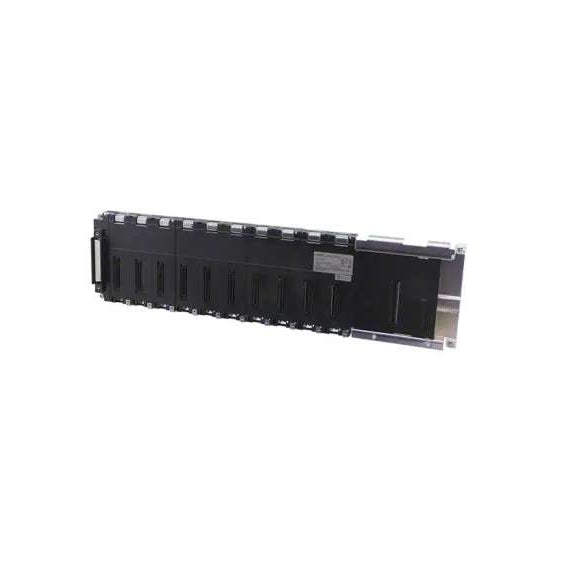

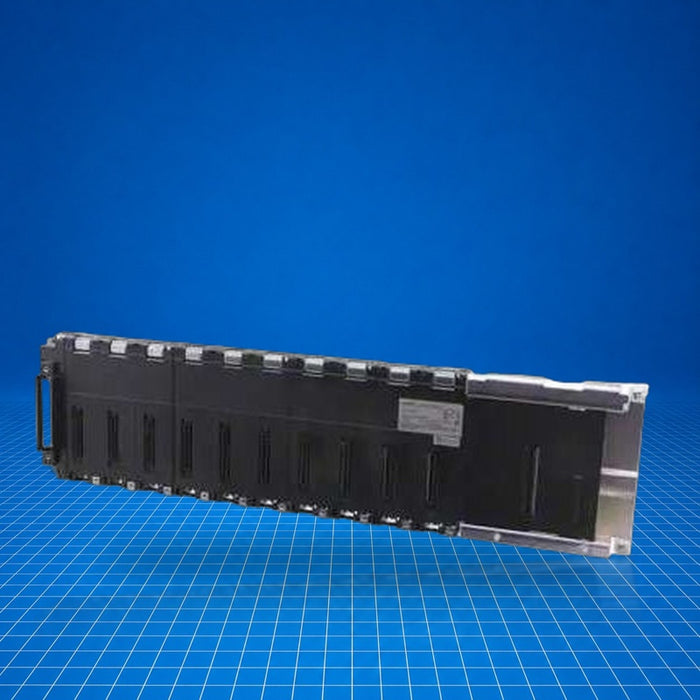

The CS1W-BC083 is an 8-slot CPU backplane for the Omron SYSMAC CS1 rack-based PLC family. It serves as the physical and electrical foundation for mounting the CPU and I/O or communication modules. The backplane enables system assembly and module connectivity within the CS1 platform, commonly applied in machine control, discrete manufacturing, and modular process systems. CS1W-BC083 supports standard CS-series units and facilitates expansion up to 7 racks per system.
Best Suited For
- Building CS1 rack-based PLC configurations
- Mounting CPU plus up to 7 expansion I/O racks
- Industrial machine control systems
- Discrete manufacturing process automation
Technical Specifications
I/O & Electrical
Communication & Power
Physical & Environmental
Certifications
Complies with EMC standards EN61000-6-4 and EN61000-6-2; CE self-declared.
