CS1W-BC103 Omron
Product Details
Specifications provided for reference. Verify critical details against official manufacturer documentation before installation.
Product Overview

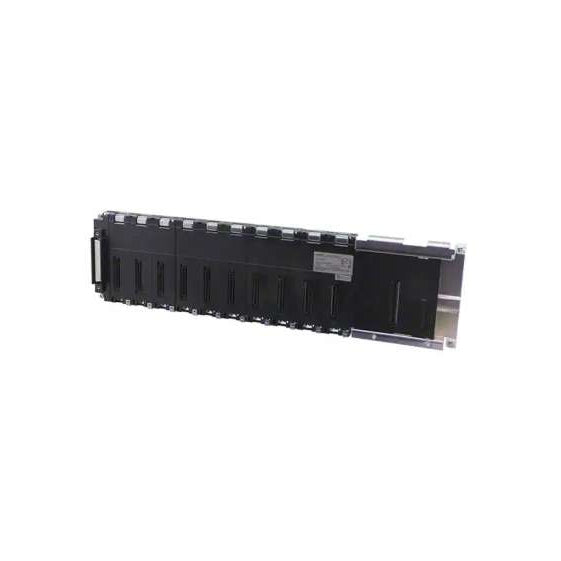

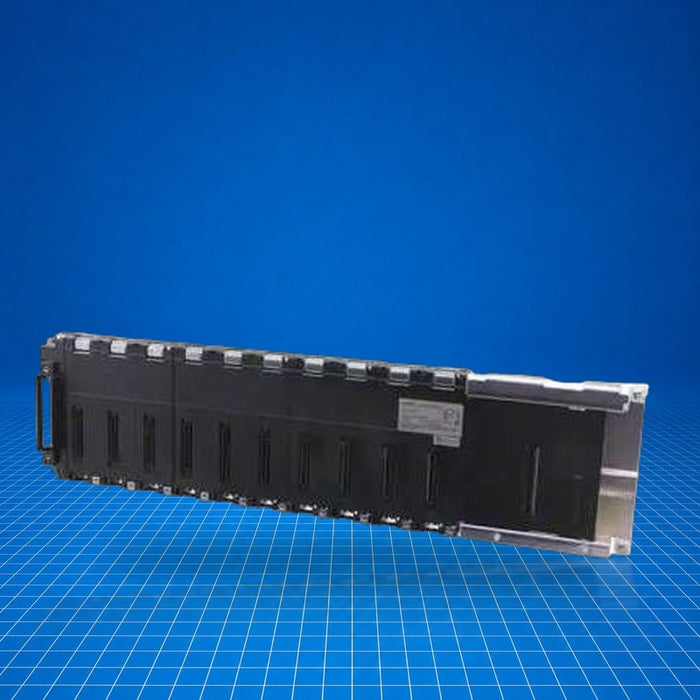

The CS1W-BC103 is a 10-slot CPU backplane for Omron's CS1 rack-based PLC platform. It serves as the mounting and signal-routing base for CPU units and I/O modules in CS1 PLC systems. Within a control system it provides the structural backbone that accommodates up to ten plug-in modules, enabling local I/O expansion. It is used in industrial automation installations requiring modular configuration, such as manufacturing lines, process control systems, and utility installations. CS1W-BC103 supports CS-series units and is designed to maintain system electrical integrity and mechanical alignment.
Best Suited For
- Large modular CS1 PLC systems requiring up to 10 module slots
- On-machine or panel-mounted installation in factory floor environments
- Applications using CS-series I/O or CPU units exclusively
- Systems with C200H-series units, when paired with appropriate expansion backplanes
