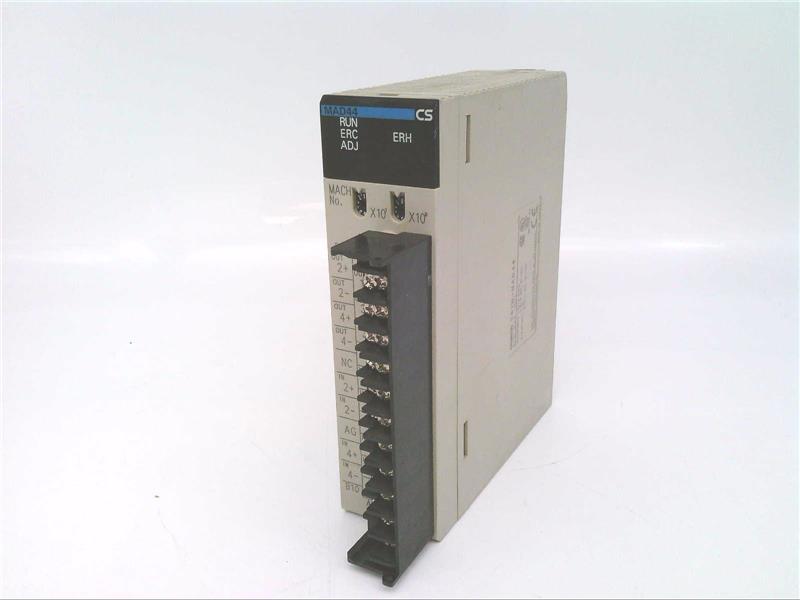

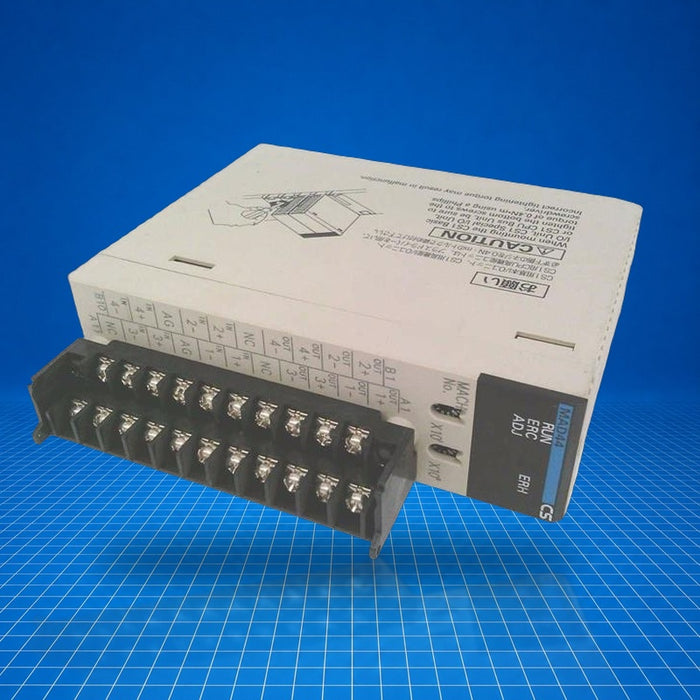

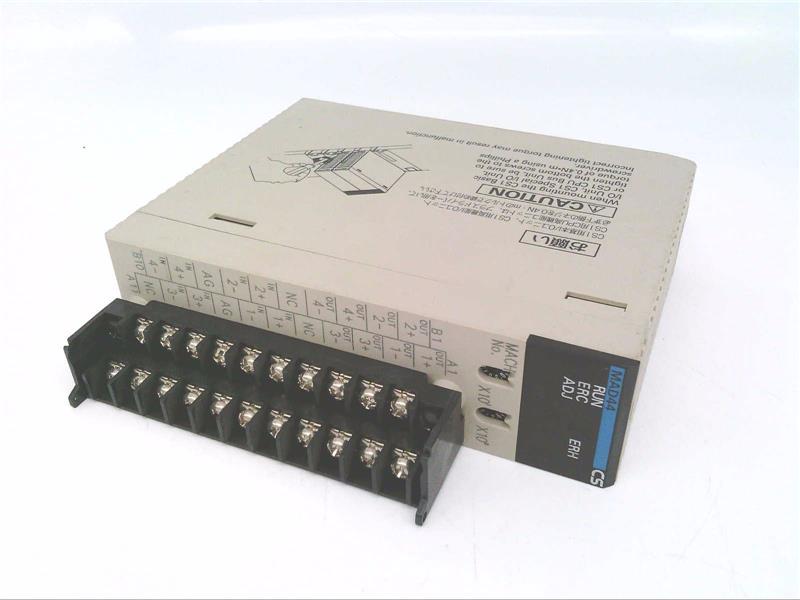

CS1W-MAD44 Omron
Original price
$618.75
-
Original price
$2,811.60
Original price
$618.75
$618.75
-
$2,811.60
Current price
$618.75
Trusted By
Product Details
Specifications provided for reference. Verify critical details against official manufacturer documentation before installation.
Product Overview
The CS1W-MAD44 is an Omron SYSMAC CS-series special analog I/O unit providing both four analog inputs and four analog outputs within a single module. It interfaces with CS-series CPU or expansion racks via a photocoupler-isolated connection to the PLC, and supports multiple selectable input/output ranges. This module is typically used in industrial control systems for direct analog signal acquisition and control tasks such as process monitoring and analog actuator interfacing in factory automation and machine control environments.
Best Suited For
- Analog signal acquisition and control within CS-series PLC racks
- Process control systems requiring both AI and AO in a single module
- Applications where multiple signal ranges must be selectable per channel
- Compact rack-based installations with limited slot capacity
Analog inputs / outputs
4 inputs, 4 outputs
Selectable signal ranges
Voltage: 1-5 V, 0-5 V, 0-10 V, ±10 V; Current: 4-20 mA
Resolution
1/4,000 (full-scale)
Power consumption
200 mA at 5 V DC (also at 26 V DC)
Dimensions
35 × 130 × 126 mm (W×H×D)
Technical Specifications
I/O & Electrical
Number of analog inputs
4
Number of analog outputs
4
Input signal ranges
1 to 5 V, 0 to 5 V, 0 to 10 V, -10 to 10 V, 4 to 20 mA
Output signal ranges
1 to 5 V, 0 to 5 V, 0 to 10 V, -10 to 10 V
Input impedance
Voltage: ≥ 1 MΩ; Current: 250 Ω (rated)
Output impedance
≤ 0.5 Ω
Maximum output current
12 mA
Communication & Power
Power consumption
200 mA max at 5 V DC; also 200 mA at 26 V DC
Isolation
Between I/O and PLC signals: photocoupler (no isolation between individual I/O)
Data exchange
10 words per unit (CPU to module); 100 words per unit at power-up/resume
Physical & Environmental
Dimensions (W×H×D)
35 × 130 × 126 mm
Weight
450 g max
Mounting position
CS-series CPU rack or expansion rack (not C200H expansion or SYSMAC BUS Slave rack)
