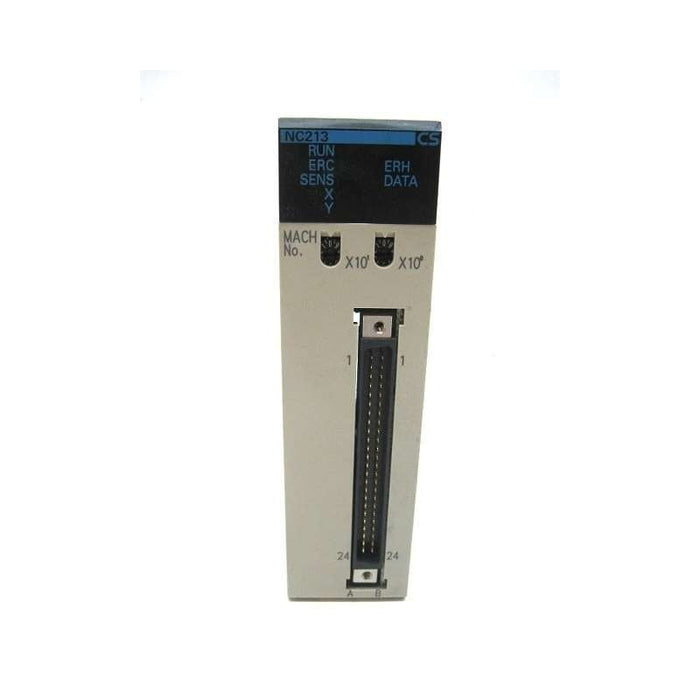

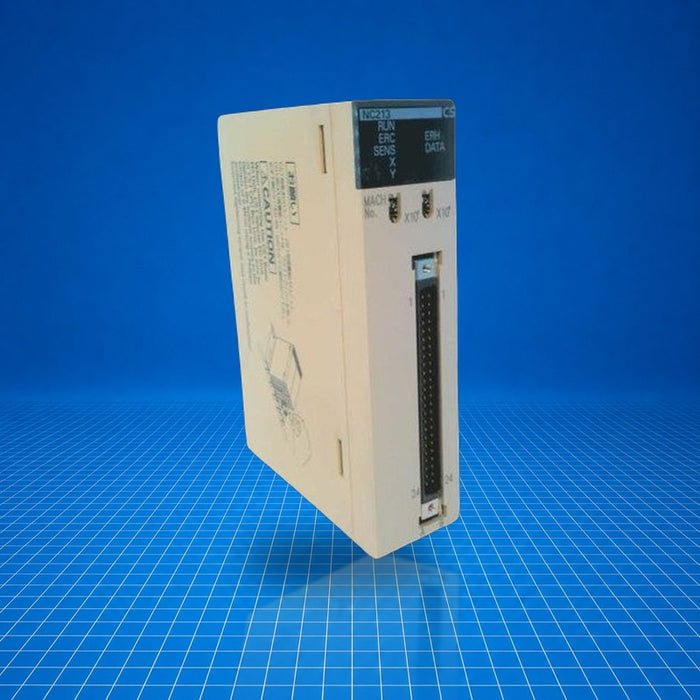

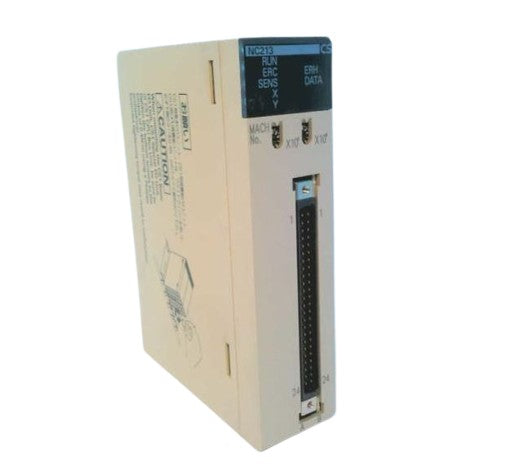

CS1W-NC213 Omron

Original price $375.00 - Original price $3,902.45
Original price
$375.00
$375.00 - $3,902.45
Current price $375.00
Surplus - Tested (With Warranty)
Need a Specific Revision?
$375.00
2 in stock
New / Open-Box Surplus
Need a Specific Revision?
$3,902.45
5 in stock
Ships today if ordered by 1 PM CST
Overnight shipping available
Qty Available: (2) ✓ Verified Stock every 24hrs
Questions? (833) 800-7748

All products listed are sold by PLC Department, an independent supplier — not an authorized Omron distributor. Covered by our 1-year warranty. By purchasing you acknowledge our full disclaimer. Read & agree ↓

Ships from Texas, USA
Same-day by 1 PM CST
Tested & inspected
Every unit, before it ships
1-year warranty
Backed direct by us
30-day returns
Hassle-free RMA
Stock verified / 24 hrs
Real-time availability
Photos on request
Your exact unit, ~5 min
Trusted By

Product Details

Description · Specifications · Product Overview

Specifications provided for reference. Verify critical details against official manufacturer documentation before installation.

Product Overview

The CS1W-NC213 is a two-axis, open-loop pulse-train position control unit in Omron's CS1 PLC expansion family. It mounts on a CS1 system rack and provides synchronized motion control for two independent axes via open-collector pulse outputs. Typical applications include stepping motor or servo pulse control in packaging, labeling, conveyance systems where straightforward positioning via pulse trains is required. CS1W-NC213 interfaces directly with CS1 PLC CPU units and uses minimal ladder logic for operation.

Best Suited For

  • Two-axis pulse-train motion control in CS1 PLC systems
  • Stepping motor or servo drive control with open-collector interface
  • On-machine positioning tasks such as conveyor indexing
  • Applications requiring compact, rack-mounted motion control
Control axes
2
Control type
Pulse-train, open-collector
Mounting
Rack-mounted CS1 expansion
Replacement rack units
2 units

Technical Specifications

I/O & Electrical

Power supply voltage (PCU)
5 V DC
Allowable PCU voltage range
4.75 to 5.25 V DC
External power supply voltage
24 V DC
Allowable external supply range
21.6 to 26.4 V DC
Internal current consumption
250 mA max. at 5 V DC
External supply current consumption
50 mA max. at 24 V DC
I/O requirement (words)
10 words

Communication & Power

Control method
Open-loop by pulse train output
Controlled driver output type
Open-collector

Physical & Environmental

External dimensions
130 (H) × 35 (W) × 101 (D) mm
Weight
250 g max.

Certifications

ULCSACE

Conforms to UL, CSA, and EC (EMC Directive) safety standards.
