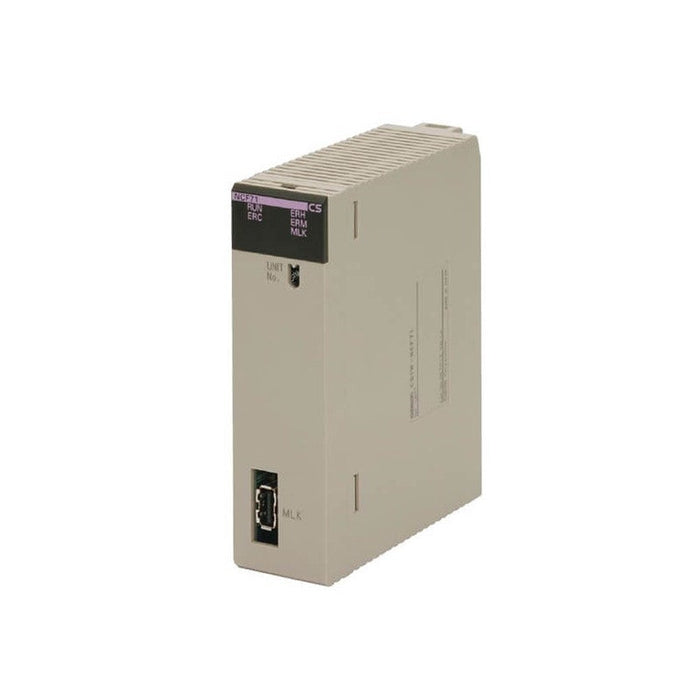

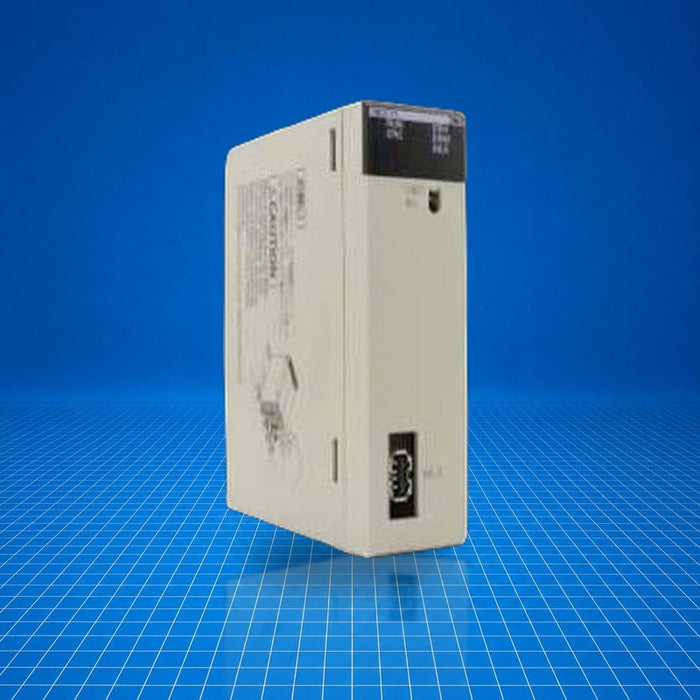

CS1W-NCF71 Omron

Name: CS1W-NCF71 Omron
Brand: Omron
SKU: CS1W-NCF71
Price: 577.5 USD
Availability: InStock

$577.50 - $7,363.50

$577.50

$577.50 - $7,363.50

$577.50

Ships today if ordered by 1 PM CST

Overnight shipping available

Qty Available: (2) ✓ Verified Stock every 24hrs

Questions? (833) 800-7748

All products listed are sold by PLC Department, an independent supplier — not an authorized Omron distributor. Covered by our 1-year warranty. By purchasing you acknowledge our full disclaimer. Read & agree ↓

Ships from Texas, USA

Same-day by 1 PM CST

Tested & inspected

Every unit, before it ships

1-year warranty

Backed direct by us

30-day returns

Hassle-free RMA

Stock verified / 24 hrs

Real-time availability

Photos on request

Your exact unit, ~5 min

Trusted By

Product Details

Description · Specifications · Product Overview

Specifications provided for reference. Verify critical details against official manufacturer documentation before installation.

Product Overview

The CS1W-NCF71 is a SYSMAC CS-series CPU bus Position Control Unit by Omron. It provides motion control of up to 16 axes via a single MECHATROLINK-II interface. The unit integrates into CS-series PLC racks and enables position, speed, torque control, origin search, and linked-axis motion with interpolation. Common applications include multi-axis servo control in machine tools, packaging, and assembly systems. The CS1W-NCF71 enables centralized parameter setting and reduces wiring in motion control systems.

Best Suited For

Multi-axis servo control (up to 16 axes)
Synchronizing position/origin control tasks
CS-series PLC rack integration
MECHATROLINK-II bus networks

Controlled axes

16

Communication port

1× MECHATROLINK-II

Internal current

360 mA @ 5 V DC

Dimensions (W×H×D)

130 × 35 × 101 mm

Technical Specifications

I/O & Electrical

Internal current consumption

360 mA max. at 5 V DC

I/O allocation (CPU Bus Area)

25 words (15 output, 10 input)

Axis operating memory allocation

50 words (25 output, 25 input) × highest axis No.

Communication & Power

Communication protocol

MECHATROLINK-II

Baud rate

10 Mbps

Max stations

16 slave stations

Max cable length

50 m (30 m for 16 axes)

Transfer cycle

250 µs to 8 ms

Physical & Environmental

Dimensions (W×H×D)

130 × 35 × 101 mm

Weight

188 g max.

Ambient operating temperature

0 to 55 °C

Certifications

CEcULusC-tickEN61131-2EN61000-6-4EN61000-6-2

Meter complies with general CS-series specifications. It carries CE, cULus, and C-tick approvals, and meets EN6131-2, EN61000-6-4 and EN61000-6-2 standards per self-declaration.
