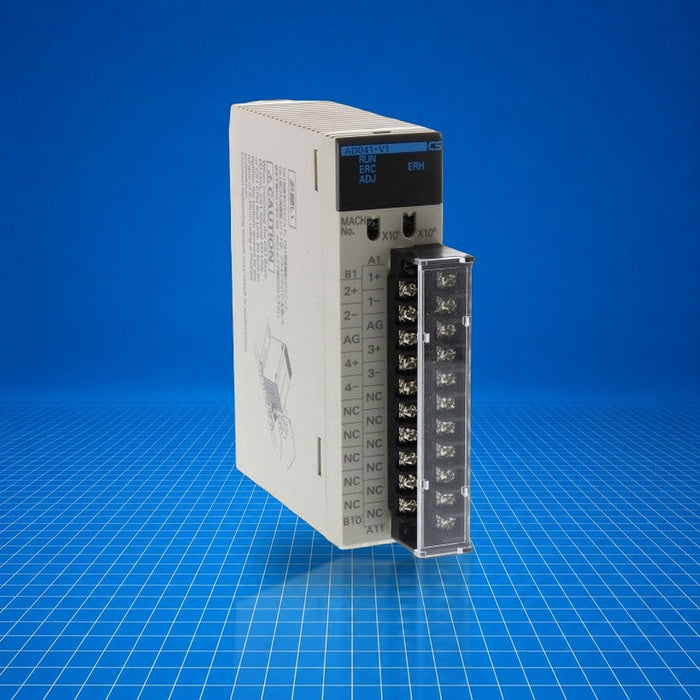

CS1W-AD041 Omron
Original price
$400.00
-
Original price
$552.00
Original price
$400.00
$400.00
-
$552.00
Current price
$400.00
Trusted By
Product Details
Specifications provided for reference. Verify critical details against official manufacturer documentation before installation.
Product Overview
The Omron CS1W-AD041-V1 is an analog input special I/O unit for the SYSMAC CS1 rack-based PLC family. It provides four individually programmable analog inputs (voltage or current selectable per channel) to interface sensor signals (e.g. 0-10 V, 4-20 mA) into the control system. The module occupies one slot in the CS1 CPU or expansion rack and communicates converted 16-bit data to the CPU for process monitoring, logging, or control tasks. CS1W-AD041 is used for industrial applications requiring analog signal acquisition such as temperature, pressure, flow, or level monitoring.
Best Suited For
- Monitoring analog sensor outputs (e.g. 4-20 mA transmitters)
- Integration with SYSMAC CS1 rack PLC systems
- Process data acquisition in manufacturing or process control
- Retrofitting analog inputs into digital control systems
Analog inputs
4
Selectable input types
Voltage or current per channel
Resolution
1/4,000 (settable to 1/8,000)
Power consumption
120 mA @ 5 VDC; 90 mA @ 26 VDC
Mounting
1 slot in CS1 CPU or expansion rack
Technical Specifications
I/O & Electrical
Analog inputs
4
Input signal range
1 to 5 V, 0 to 5 V, 0 to 10 V, -10 to 10 V, 4 to 20 mA
Input impedance
Voltage ≥ 1 MΩ; Current 250 Ω
Maximum rated input
Voltage ±15 V; Current ±30 mA
Resolution
1/4,000 (selectable to 1/8,000)
Converted data
16-bit binary
Communication & Power
Power consumption
120 mA max @ 5 VDC; 90 mA max @ 26 VDC
CPU cycle time impact
0.2 ms
Physical & Environmental
Dimensions (W × H × D)
35 × 130 × 126 mm
Weight
≤ 450 g
Mounting position
CS-series CPU Rack or CS-series Expansion Rack
Isolation
Photocoupler between I/O and PLC signals (no isolation between channels)
