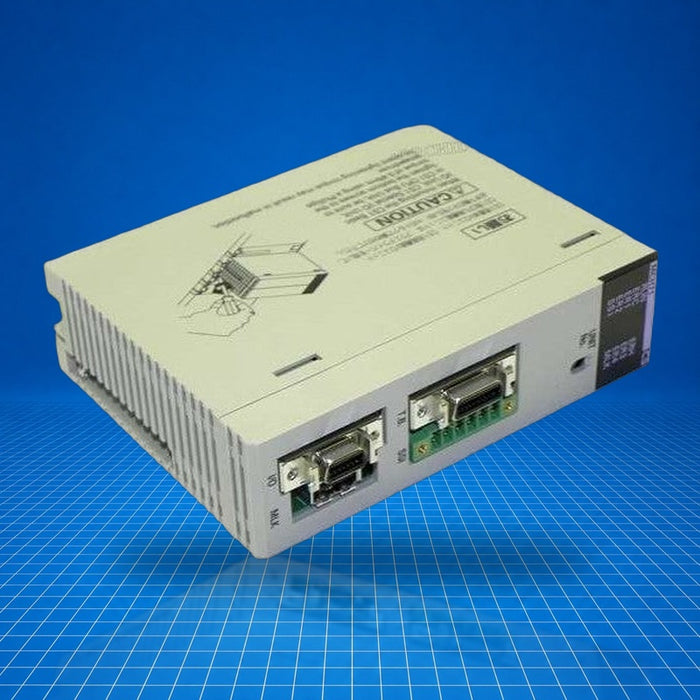

CS1W-MCH71 Omron
Product Details
Specifications provided for reference. Verify critical details against official manufacturer documentation before installation.
Product Overview
The CS1W-MCH71 is an Omron SYSMAC CS-series Motion Control Unit with MECHATROLINK-II interface. It is designed to perform motion control tasks within a CS1 rack-based PLC system, enabling control of multiple servo axes via MECHATROLINK-II. It supports real and virtual axes control and integrates with CX-Motion software, aiding commissioning and debugging of motion programs. Typically deployed in machine tools, multi-axis positioning systems, and automated assembly machinery, CS1W-MCH71 serves as the motion control component of a modular PLC configuration. Part number CS1W-MCH71.
Best Suited For
- Use in SYSMAC CS-series rack PLCs requiring MECHATROLINK-II motion control
- Applications needing up to 30 real axes and 2 virtual axes at the PLC level
- Integration into CS1 expansion racks (up to 3 units per rack)
- CX-Motion-assisted commissioning and troubleshooting
