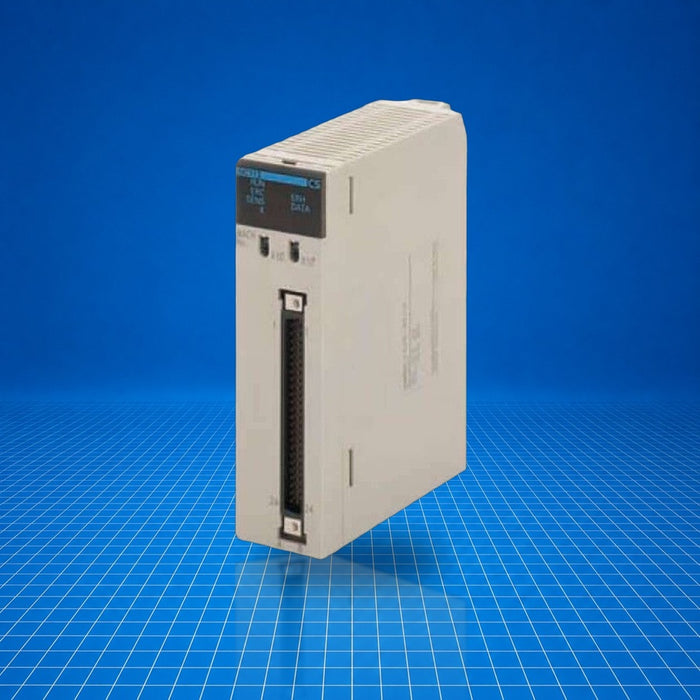

CS1W-NC133 Omron

Name: CS1W-NC133 Omron
Brand: Omron
Price: 2794.0 USD
Availability: InStock

$894.91 - $2,794.00

$2,794.00

$894.91 - $2,794.00

$2,794.00

Ships today if ordered by 1 PM CST

Overnight shipping available

Qty Available: (3) ✓ Verified Stock every 24hrs

Questions? (833) 800-7748

All products listed are sold by PLC Department, an independent supplier — not an authorized Omron distributor. Covered by our 1-year warranty. By purchasing you acknowledge our full disclaimer. Read & agree ↓

Ships from Texas, USA

Same-day by 1 PM CST

Tested & inspected

Every unit, before it ships

1-year warranty

Backed direct by us

30-day returns

Hassle-free RMA

Stock verified / 24 hrs

Real-time availability

Photos on request

Your exact unit, ~5 min

Trusted By

Product Details

Description · Specifications · Product Overview

Specifications provided for reference. Verify critical details against official manufacturer documentation before installation.

Product Overview

The CS1W-NC133 is a position control unit (special I/O unit) in OMRON's CS1 PLC series. It provides single-axis open-loop pulse-train output with line-driver output for integration into CS1 rack-based control systems. In a control architecture, the CS1W-NC133 functions as a dedicated axis positioning module, interfacing with stepping or servo drives via pulse outputs. Typical applications include machine tool axis control, simple motion tasks, and incremental positioning where single-axis pulse-train control suffices.

Best Suited For

Single-axis motion control using CS1 PLCs
Interfacing with servo or stepping drives that accept line-driver pulses
Machine tool incremental positioning tasks
Replacement or upgrade of existing CS1W-NC113 to line-driver output type

Axes

1

Output type

Pulse-train, line-driver

Internal current consumption

0.25 A at 5 V DC

External power current

10 mA max at 24 V DC

Dimensions (H×W×D)

130 × 35 × 101 mm

Technical Specifications

I/O & Electrical

Control method / output interface

Pulse-train, line-driver outputs

Number of control axes

1 axis

Internal current consumption

0.25 A max at 5 V DC

External power supply current consumption

10 mA max at 24 V DC

Communication & Power

Power supply voltage

5 V DC (for PCU) / 24 V DC (external)

Allowable power supply range

4.75 to 5.25 V DC (PCU); 21.6 to 26.4 V DC (external)

Physical & Environmental

External dimensions

130 × 35 × 101 mm

Weight

250 g max

Ambient operating temperature

0 to 55 °C

Certifications

ULCSACE

Complies with UL, CSA, EC (EMC Directive) safety standards as part of CS Series general specifications.
