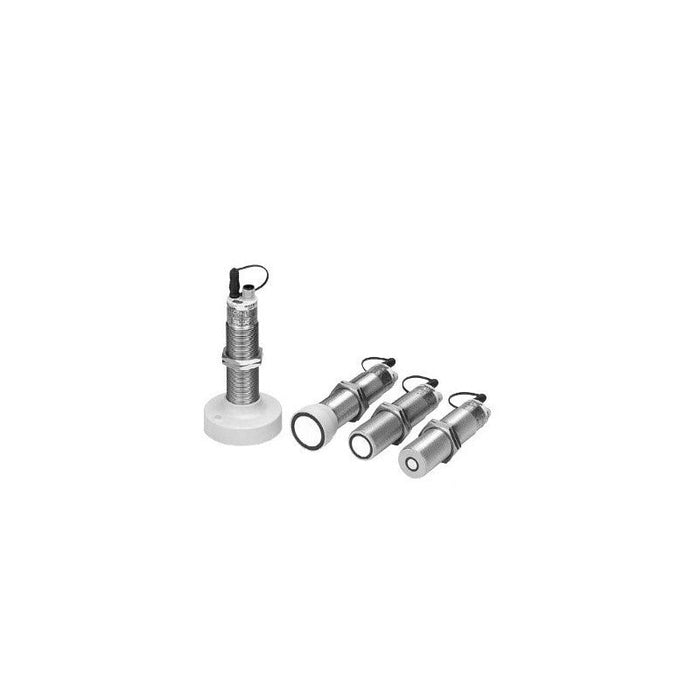

Product image is representative; revision or series may vary.
Contact us to request a specific version.
Contact us to request a specific version.

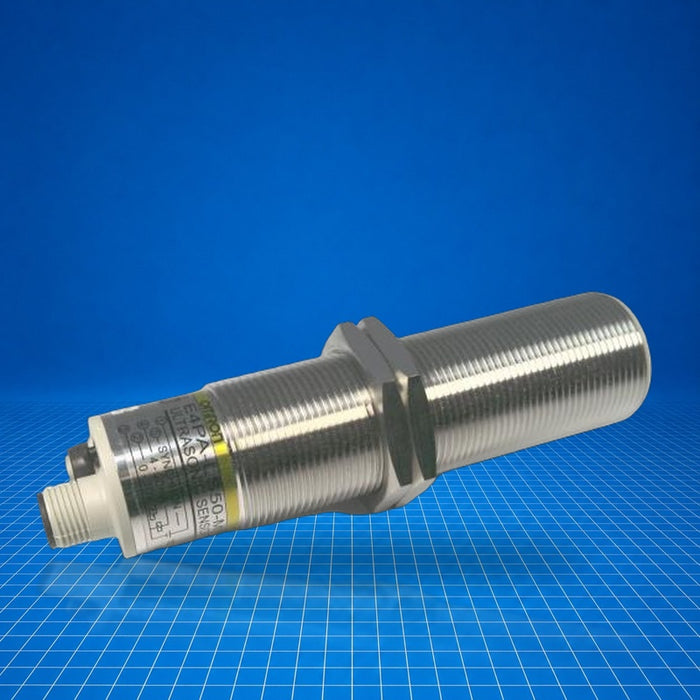

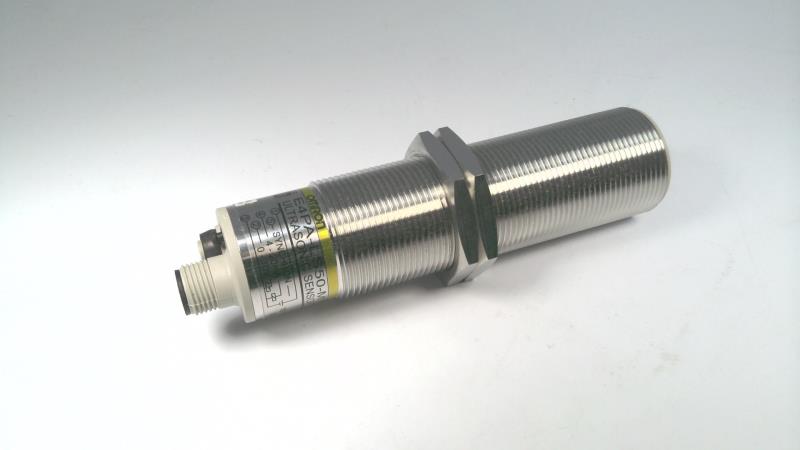

E4PA-LS50-M1-N Omron
Original price
$1,749.98
-
Original price
$2,010.10
Original price
$1,749.98
$1,749.98
-
$2,010.10
Current price
$1,749.98
Trusted By
Product Details
Specifications provided for reference. Verify critical details against official manufacturer documentation before installation.
Product Overview
The E4PA-LS50-M1-N is an Omron E4PA-N series ultrasonic displacement sensor designed for non-contact linear distance measurement within 50 to 500 mm. It outputs analog signals (4-20 mA current or 0-10 V voltage) for integration into position monitoring, material height measurement, or part tracking systems. Part E4PA-LS50-M1-N includes mutual interference prevention, short-circuit protection, stainless steel housing, and is suited to industrial process and machine-tool environments.
Best Suited For
- Distance measurement from 50 to 500 mm
- Analog integration with PLC or data acquisition systems
- Applications requiring mutual interference prevention between sensors
- Installation in corrosive or wash-down environments (stainless steel housing)
Sensing range
50 to 500 mm
Analog outputs
4-20 mA or 0-10 V
Power supply
10 to 30 V DC
Protection/IP rating
Short-circuit protection, IP65
Housing material
Stainless steel (SUS303)
Technical Specifications
I/O & Electrical
Input voltage
10 to 30 V DC
Power consumption
1,800 mW max.
Analog output - current
4-20 mA (load ≤ 500 Ω)
Analog output - voltage
0-10 V (load ≥ 1 000 Ω)
Physical & Environmental
Sensing range
50 to 500 mm
Dead-band distance
0 to 50 mm
Response time
63 ms max.
Linearity
±1% FS
Repeat accuracy
0.1% FS max.
Ambient temp - operating
-10 to 55 °C (no icing/condensation)
Ambient temp - storage
-40 to 85 °C (no icing/condensation)
Ambient humidity
35% to 85% (no condensation)
Insulation resistance
50 MΩ min. at 500 V DC (between parts and case)
Dielectric strength
1,000 VAC, 1 min (between parts and case)
Vibration resistance - destruction
10-55 Hz, 1 mm amp., 2 h (X, Y, Z)
Shock resistance - destruction
300 m/s², three times (X, Y, Z)
Protection rating
IP65
Weight
Approx. 240 g
Housing material
Stainless steel (SUS303)
