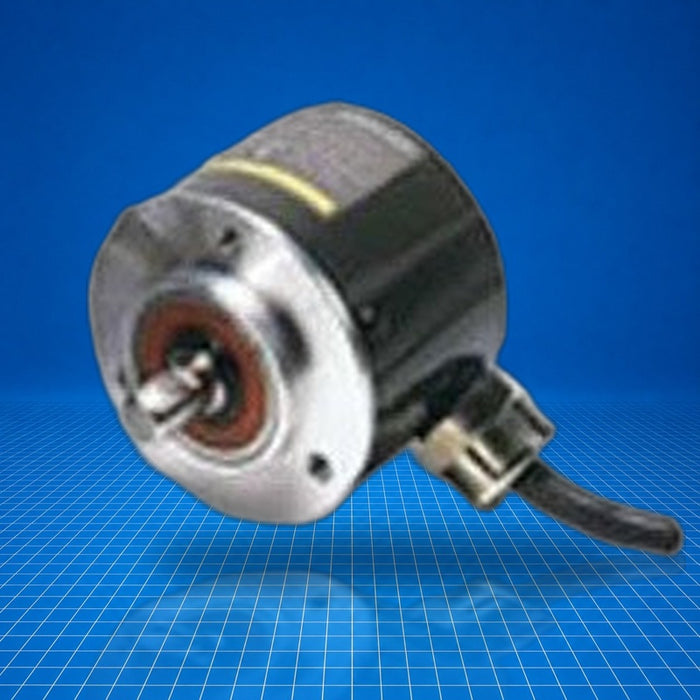

E6C3-AG5B Omron
Original price
$1,792.50
-
Original price
$2,000.96
Original price
$2,000.96
$1,792.50
-
$2,000.96
Current price
$2,000.96
Trusted By
Product Details
Specifications provided for reference. Verify critical details against official manufacturer documentation before installation.
Product Overview
The E6C3-AG5B is an Omron E6C3-A series slim absolute rotary encoder with a 50 mm diameter shaft model. It provides absolute position feedback via Gray code output using a PNP open-collector interface. Powered by 12-24 V DC, it is commonly applied in machine motion control, positioning and indexing applications where non-volatile angular feedback is required. The E6C3-AG5B offers selectable resolutions and a pre-wired cable connection for straightforward panel or machine integration.
Best Suited For
- Angular position feedback in servo or stepper systems
- Rotational positioning in indexing mechanisms
- PLC integration for absolute shaft position monitoring
- Bulk machinery requiring PNP output interfacing
- Installation in oil-exposed industrial environments
Resolution
256 pulses/rotation
Output type
PNP open-collector
Supply voltage
12 to 24 V DC
Protection rating
IEC IP65
Technical Specifications
I/O & Electrical
Power supply voltage
12 to 24 V DC (-10 % to +15 %) ripple (p-p): 5 % max.
Current consumption
70 mA max.
Inrush current
Approx. 6 A for 0.8 ms
Source current
35 mA max.
Residual voltage
0.4 V max. (at source current 35 mA)
Logic
Positive logic (high = 1, low = 0)
Communication & Power
Output code
Gray code
Max response frequency
20 kHz
Rise/fall times
1 µs max. (cable 1 m, load 35 mA)
Direction of rotation
Output code increases for CW as viewed from shaft end
Physical & Environmental
External diameter
50 mm
Maximum permissible rotation speed
5,000 r/min
Starting torque
10 mN·m max. (room temp), 30 mN·m max. (low temp)
Moment of inertia
2.3×10⁻⁶ kg·m²
Shaft loading (radial/thrust)
Radial: 80 N; Thrust: 50 N
Ambient temperature range
Operating: -10 to 70 °C (no icing); Storage: -25 to 85 °C
Ambient humidity range
35 to 85 % (no condensation)
Insulation resistance
20 MΩ min. at 500 V DC
Dielectric strength
500 V AC, 50/60 Hz for 1 min
Vibration resistance
10-500 Hz, 150 m/s² or 2 mm double amplitude, 11 min, X/Y/Z, 3×
Shock resistance
1,000 m/s², X/Y/Z, 3×
Degree of protection
IEC 60529 IP65, oil-proof
Connection method
Pre-wired cable, 1 m
Materials
Case/main unit: Aluminum; Shaft: SUS303
Weight (packed)
Approx. 300 g
