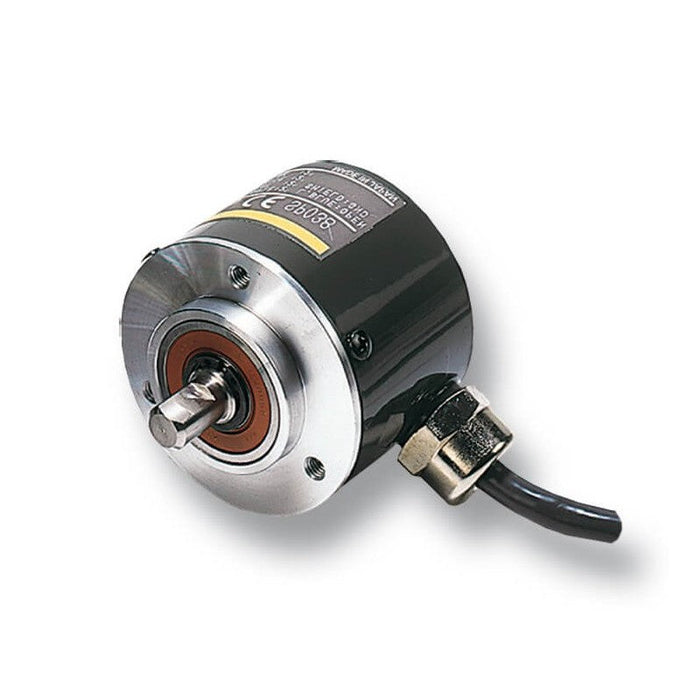

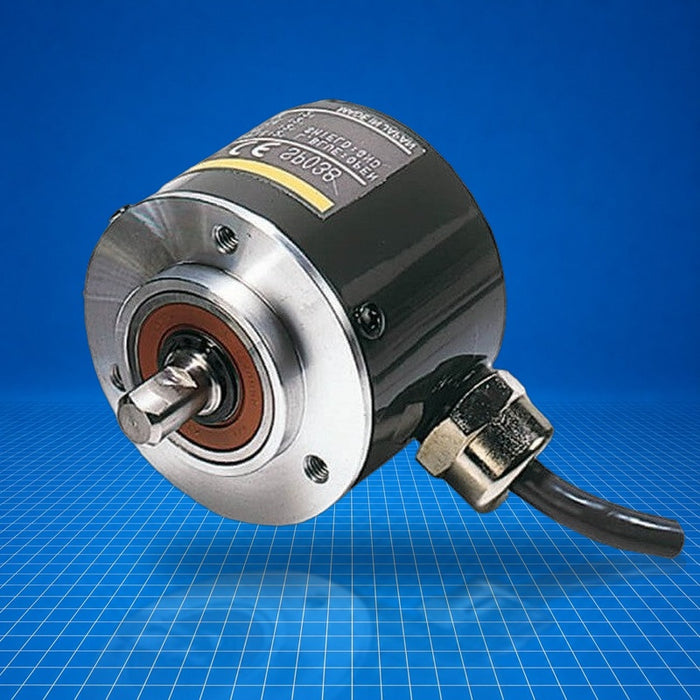

The Omron E6C3-CWZ3XH is an incremental rotary encoder from the rugged E6C3-C family, featuring a 50 mm external diameter with line-driver outputs. It provides quadrature signals A/-A, B/-B and Z/-Z for position and speed feedback. Operating from 5 V DC to 12 V DC, it is used in motion control systems, servo axis feedback, conveyor position tracking, and industrial machinery requiring high-reliability incremental sensing. Part number E6C3-CWZ3XH appears in multiple resolutions (e.g., 200, 300, 720, 1000, 1200 P/R).
Best Suited For
- Rotational speed and position feedback in servo drives
- Incremental position counting in conveyors or indexing systems
- High-noise environments requiring line-driver buffering
- Applications requiring oil-resistant, IP65-rated sensors
Resolution (example)
e.g. 200 P/R (others up to 1200 P/R)
Output type
Line-driver (A/-A, B/-B, Z/-Z)
Power supply
5 V DC (-5% to +10%) ripples ≤ 5 %
Protection rating
IEC IP65, oil-resistant
Max response frequency
125 kHz (65 kHz with Z)
Technical Specifications
I/O & Electrical
Power supply voltage
5 V DC (-5 % to +10 %); ripple ≤ 5 % p-p
Current consumption
100 mA max.
Inrush current
Approx. 9 A for 0.1 ms
Output type
Line-driver output, AM26LS31 equivalent
Output voltage
VO ≥ 2.5 V; VS ≤ 0.5 V
Output load current
High level IO = -10 mA; Low level IS = 10 mA
Max response frequency
125 kHz (65 kHz with phase Z reset)
Phase difference
90° ± 45° between A and B
Rise/fall time
1 µs max (2 m cable, IO = -10 mA, IS = 10 mA)
Physical & Environmental
Diameter
50 mm
Starting torque
10 mN·m max (room temp); 30 mN·m max (low temp)
Moment of inertia
~1.9 × 10⁻⁶ kg·m² max.
Shaft loading
Radial 80 N; Thrust 50 N
Max rotational speed
5,000 r/min
Ambient temperature
-10 °C to 70 °C (operating, no icing); -25 °C to 85 °C (storage)
Ambient humidity
35 % to 85 % (no condensation)
Insulation resistance
≥ 20 MΩ (500 V DC)
Dielectric strength
500 VAC, 50/60 Hz, 1 min
Vibration resistance
10-500 Hz, 150 m/s² or 2 mm amp, 11 min, 3 axes
Shock resistance
1,000 m/s², 3 times each axis
Protection
IEC 60529 IP65, oil-resistant
Connection
Pre-wired cable; models with 1 m or 2 m length
Material
Case and main unit: Aluminum; Shaft: SUS303
Weight
Approx. 300 g (packaged)
