G9SP-N20S Omron

Original price $419.96 - Original price $599.96
Original price
$419.96
$419.96 - $599.96
Current price $419.96
Surplus - Tested (With Warranty)
Need a Specific Revision?
$419.96
4 in stock
New / Open-Box Surplus
Need a Specific Revision?
$599.96
4 in stock
Ships today if ordered by 1 PM CST
Overnight shipping available
Qty Available: (4) ✓ Verified Stock every 24hrs
Questions? (833) 800-7748

All products listed are sold by PLC Department, an independent supplier — not an authorized Omron distributor. Covered by our 1-year warranty. By purchasing you acknowledge our full disclaimer. Read & agree ↓

Ships from Texas, USA
Same-day by 1 PM CST
Tested & inspected
Every unit, before it ships
1-year warranty
Backed direct by us
30-day returns
Hassle-free RMA
Stock verified / 24 hrs
Real-time availability
Photos on request
Your exact unit, ~5 min
Trusted By

Product Details

Description · Specifications · Product Overview

Specifications provided for reference. Verify critical details against official manufacturer documentation before installation.

Product Overview

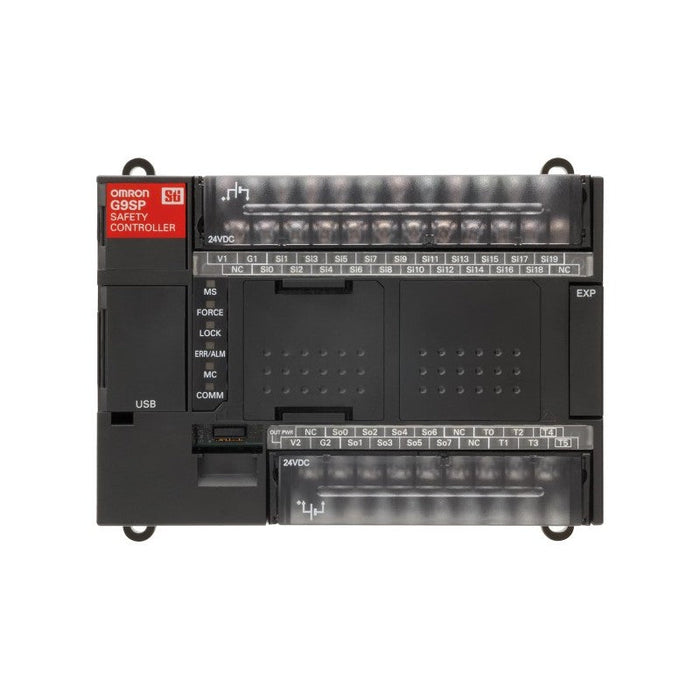

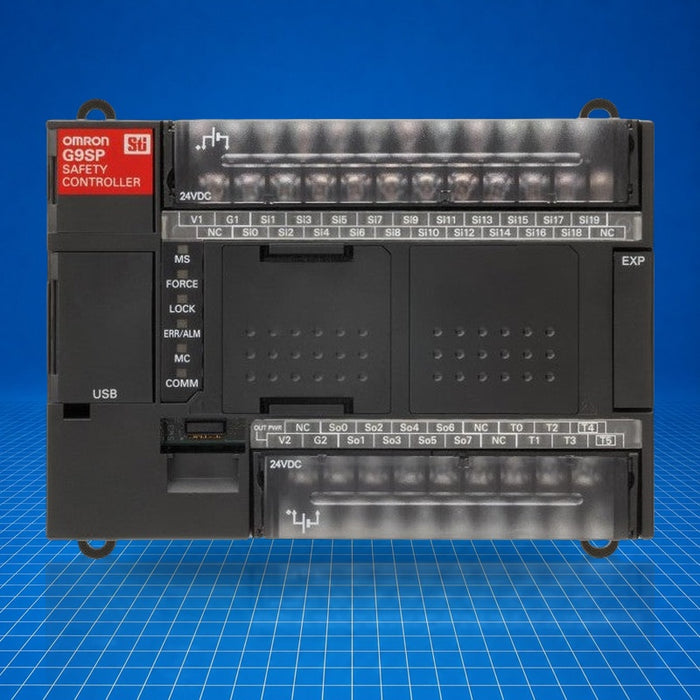

The G9SP-N20S is a safety controller within Omron's G9SP series. It provides programmable safety logic with 20 safety inputs, 6 test outputs, and 8 safety outputs. Designed to integrate into safety control systems, it enforces functional safety standards (IEC 61508 SIL3 / ISO 13849-1 PLe) and is suitable for machine guarding, access protection, and two-hand control applications. G9SP-N20S offers DIN-rail or screw mounting and fits alongside non-contact switches and emergency-stop devices in industrial setups.

Best Suited For

  • Machine guarding with multiple inputs
  • Two-hand control safety logic
  • Integration with non-contact door switches
  • Functional safety compliance up to SIL 3 / PLe
Safety inputs
20
Safety outputs
8
Test outputs
6
Input voltage
24 V DC (20.4 to 26.4 V DC)

Technical Specifications

I/O & Electrical

Safety inputs
20 sinking (PNP), input current 6 mA, ON ≥ 11 V DC, OFF ≤ 5 V DC, OFF current ≤ 1 mA
Test outputs
6 sourcing (PNP), T0-T2: 100 mA max each, T3: 300 mA max, T4-T5: 30 mA max, total T0-T2 + T4-T5: 120 mA max, ON residual ≤ 1.8 V, leakage ≤ 0.1 mA
Safety outputs
8 sourcing (PNP), up to 0.8 A per output, 1.6 A per 4 outputs, ON residual ≤ 1.2 V, OFF residual ≤ 2 V, leakage ≤ 0.1 mA

Communication & Power

Input voltage
24 V DC (20.4 to 26.4 V DC)
Current consumption
500 mA (V1: 400 mA, V2: 100 mA)

Physical & Environmental

Mounting
DIN-rail (IEC 60715 TH35-7.5/TH35-15) or M4 screws
Ambient operating temp
0 to +55 °C
Ambient storage temp
-20 to +75 °C
Humidity
10 % to 90 % (no condensation)
Vibration
5-8.4 Hz: 3.5 mm; 8.4-150 Hz: 9.8 m/s²
Shock
147 m/s², 11 ms
Protection
IP20 (except terminal blocks)
Weight
430 g max.

Certifications

IEC 61508 SIL 3ISO 13849-1 PL eCategory 4KCC

Functional safety standards: IEC 61508 SIL 3, ISO 13849-1 PL e, Category 4. Reliability data: PFH D 1.1×10-10, MTTF 2500 years, DCavg 99 %. Korean KC Mark registered (KCC-REM-OMR-G9SP-00003).
