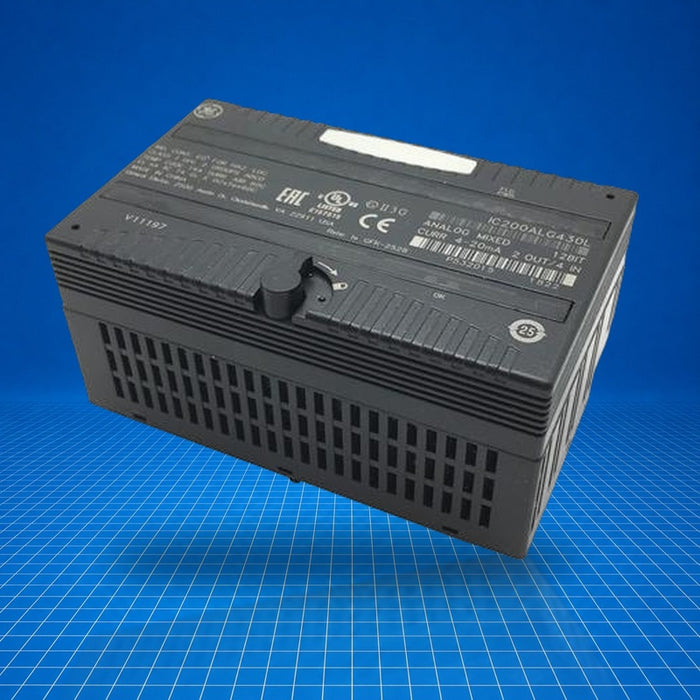

IC200ALG430 GE Fanuc
Original price
$375.00
-
Original price
$1,755.55
Original price
$375.00
$375.00
-
$1,755.55
Current price
$375.00
Trusted By
Product Details
Specifications provided for reference. Verify critical details against official manufacturer documentation before installation.
Product Overview
The IC200ALG430 is a VersaMax analog mixed module from GE Fanuc (now under Emerson Automation). It provides four differential 4-20 mA analog input channels plus two single-ended 4-20 mA analog output channels within one module. The module installs in a single I/O slot on the VersaMax I/O platform and serves both data acquisition and control signal generation. Typical industrial uses include distributed analog I/O in process control, remote panel expansion, and applications where mixed I/O channels reduce footprint and wiring.
Best Suited For
- Distributed analog I/O expansion on VersaMax backplane
- Combined current-input and current-output in compact panel spaces
- Applications requiring 4-20 mA signal handling
- Panel-mounted systems with limited slot availability
Analog Inputs
4 differential 4-20 mA channels
Analog Outputs
2 single-ended 4-20 mA channels
Resolution (I/O)
12 bit
Backplane Current Draw
50 mA @ 5 V DC
Module Width
1 slot
Technical Specifications
I/O & Electrical
Input channels
4 differential, 4-20 mA
Output channels
2 single-ended, 4-20 mA
Resolution (inputs/outputs)
12 bit
Accuracy (typical / max @ 25 °C)
±0.3 % / ±0.5 % of full scale
Accuracy (max @ 0-60 °C)
±1 % of full scale
Channel-to-channel crosstalk rejection
30 dB
Communication & Power
Backplane current draw
50 mA @ 5 V DC
External supply for outputs
+18 to +30 V DC (incl. ripple)
External supply for input circuitry
9.6-15 V DC, 12 V DC nominal (incl. ripple)
Power supply rating
250 V AC isolation
Physical & Environmental
Weight
0.38 lbs (0.17 kg)
Update rate (input)
0.4 ms max.
Update rate (output)
0.3 ms max.
Input filter response time
5 ms
Isolation (input to logic/frame)
250 VAC continuous; 1500 VAC for 1 min
LED indicators
FLD POWER; MODULE OK
