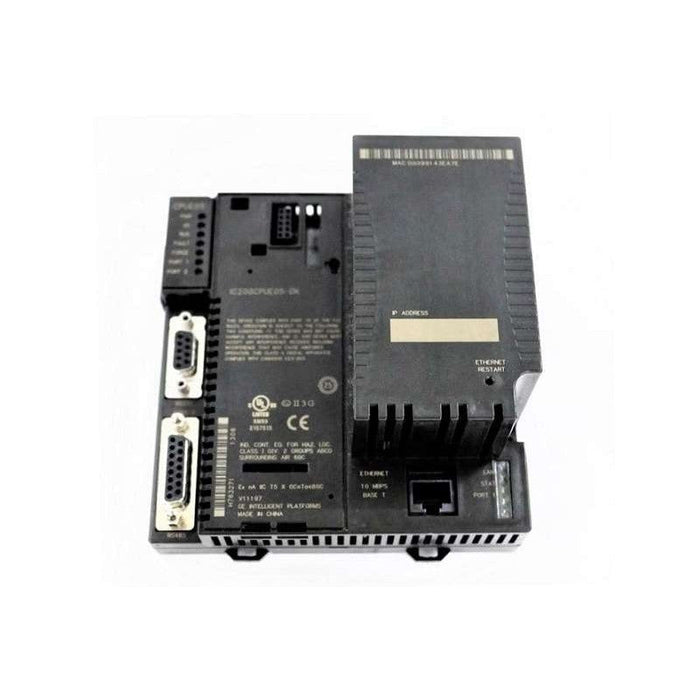

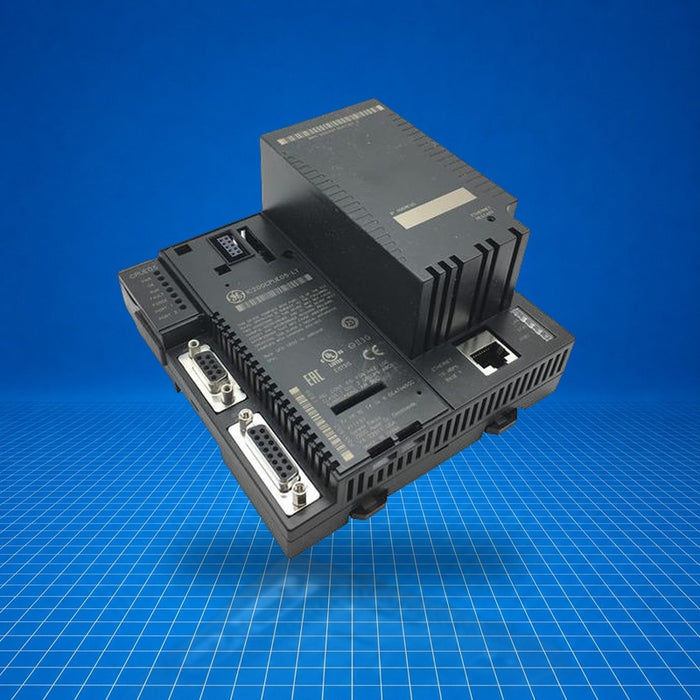

IC200CPUE05 GE Fanuc
Original price
$2,437.75
-
Original price
$4,768.50
Original price
$2,437.75
$2,437.75
-
$4,768.50
Current price
$2,437.75
Trusted By
Product Details
Specifications provided for reference. Verify critical details against official manufacturer documentation before installation.
Product Overview
The IC200CPUE05 is a CPU controller module in the VersaMax PLC family from GE Fanuc (Emerson). It serves as the central processing unit for control systems, executing ladder logic and processing floating-point operations. It supports Ethernet, RS-232, and RS-485 communication, and can manage up to 64 expansion modules or 2048 I/O points. Typical applications include mid-range industrial automation, distributed control, and machine control systems using VersaMax architectures.
Best Suited For
- VersaMax PLC-based mid-range control systems
- Networked control with Ethernet and serial connectivity
- Systems requiring up to 2048 I/O points
- Floating-point logic processing applications
User memory
64 KB (configurable)
I/O capacity
up to 2048 points
Communication ports
Ethernet, RS-232, RS-485
Boolean execution speed
0.8 ms/K (typical)
Super-capacitor memory backup
≈1 hour
Technical Specifications
I/O & Electrical
Modules supported
up to 64
I/O point capacity
up to 2048
Communication & Power
Communication ports
Ethernet (RJ-45, 10 Mbps), RS-232, RS-485
SRTP server connections
8
EGD exchanges
32 configuration-based exchanges
EGD exchange limits
100 data ranges / 1,400 bytes per exchange
Boolean execution speed
0.8 ms/K (typical)
Floating-point support
yes
Configurable user memory
64 KB
Program storage
system flash, battery-backed RAM
Real-time clock accuracy
100 ppm (±9 s/day)
Time-of-day clock accuracy
100 ppm over full temperature range
Super-capacitor backup
≈1 hour
Physical & Environmental
Dimensions (W × H × D)
126 × 128 × 69.1 mm
Weight
0.28 kg
Mounting
DIN rail, vertical or horizontal
Current draw
5 V @ 220 mA; 3.3 V @ 570 mA
