Product Overview

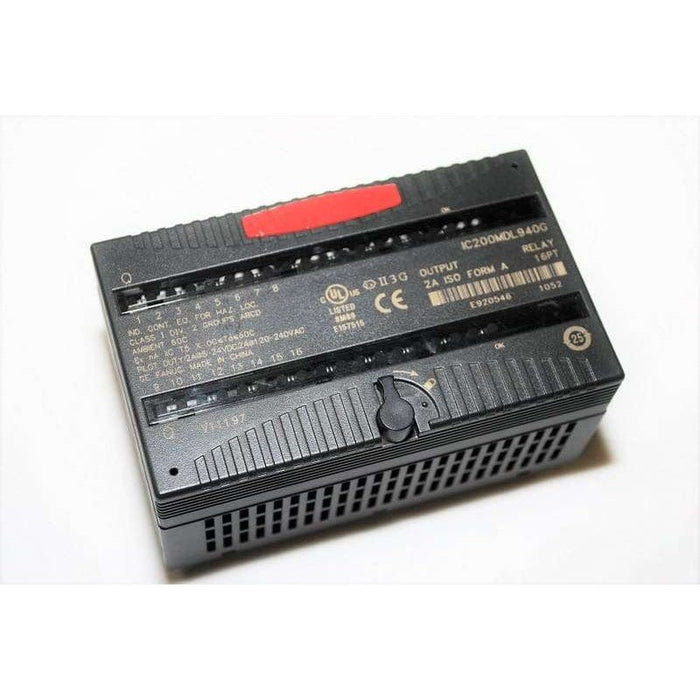

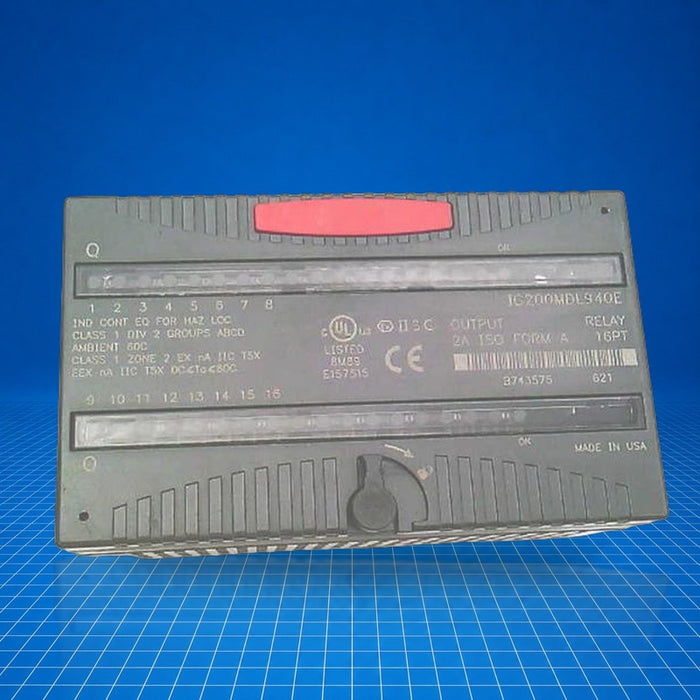

The IC200MDL940 is a relay output module in the VersaMax I/O platform by GE Fanuc (now Emerson Automation). This module provides sixteen individually isolated Form A (Normally Open) relay outputs. It interfaces via backplane and is used to drive devices such as relays, solenoids, pilot lights across both DC and AC voltage ranges. Part number IC200MDL940 enables flexible voltage handling and channel-level isolation in mid-tier industrial control systems.
Best Suited For
- VersaMax I/O installations requiring relay switching
- Low-density output expansion for industrial controllers
- DC and AC actuator or indicator control
- Applications needing individual channel isolation
Output points
16
Contact form
Form A (Normally Open)
Max current per point
2.0 A
Voltage range
0-125 VDC; 0-265 VAC (47-63 Hz)
Backplane current draw
490 mA (max)
Technical Specifications
I/O & Electrical
Output voltage range
0-125 VDC; 0-265 VAC (47-63 Hz)
Nominal output voltage
5/24/125 VDC; 120/240 VAC
Maximum current per point (resistive)
2.0 A
Minimum load current per point
10 mA
Output voltage drop (max)
0.3 V
Communication & Power
Backplane current draw
490 mA (max)
Isolation, input to logic/frame
250 VAC continuous; 1500 VAC for 60 s
Channel-to-channel isolation
250 VAC continuous; 1500 VAC for 1 min
Physical & Environmental
Operating temperature
0-60 °C
Switching frequency (inductive)
20 cycles per minute
Response time
10 ms (max)
Certifications
CEcULus
Meets CE and cULus standards.
