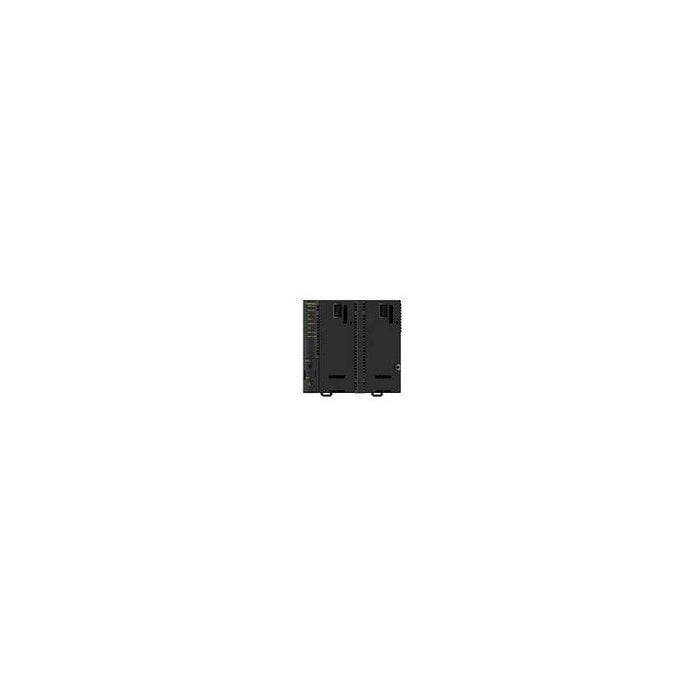

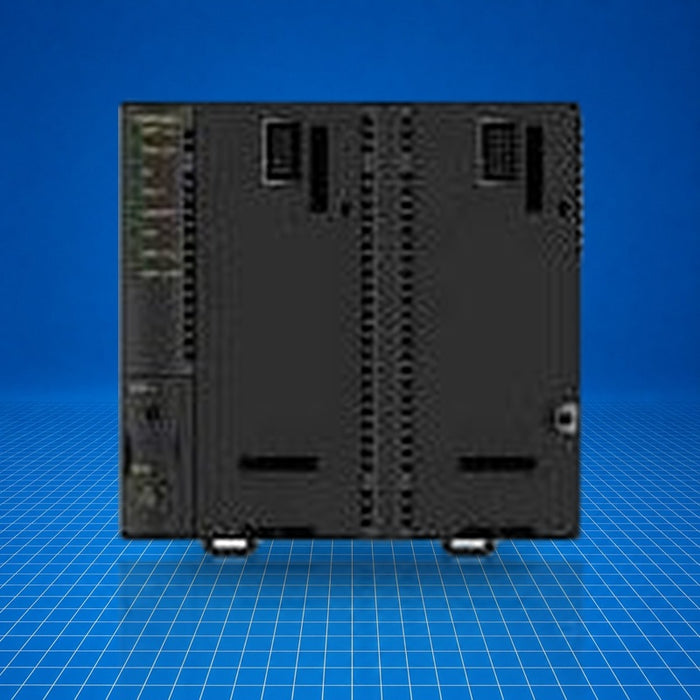

IC200PNS001 Ge Fanuc
Original price
$400.00
-
Original price
$417.00
Original price
$400.00
$400.00
-
$417.00
Current price
$400.00
Trusted By
Product Details
Specifications provided for reference. Verify critical details against official manufacturer documentation before installation.
Product Overview
The IC200PNS001 is a Profinet network interface (Scanner) module in the VersaMax series by GE Fanuc (now Emerson Automation). It acts as a Profinet Slave (version 2.2, Class A) and links up to eight VersaMax I/O modules to a Profinet I/O network via two embedded RJ45 ports. It enables deterministic I/O data exchange and is commonly used in distributed control installations where reliable remote I/O communication is required.
Best Suited For
- VersaMax distributed I/O over Profinet networks
- Linking remote I/O to RX3i or RX7i controllers
- Linear, daisy-chain or star Profinet topologies
- Deployments requiring fast configurable I/O update rates
Profinet I/O capacity
2880 bytes discrete + 2880 bytes analog
Update rates
Configurable 1 ms to 512 ms
Ethernet ports
2 × RJ45 (10/100 Mbps)
Power consumption
0.60 A @ 5 V DC (≈3 W)
Weight
0.75 lbs (0.34 kg)
Technical Specifications
I/O & Electrical
I/O capacity (discrete)
1440 bytes input + 1440 bytes output
I/O capacity (analog)
1440 bytes input + 1440 bytes output
Diagnostic bits
32 input status + 32 output control bits
Communication & Power
Protocol
Profinet Slave v2.2 Class A
Ethernet
2 × RJ45 10/100 Mbps, linear-/daisy-chain/star topologies
I/O update rate
Configurable 1 ms, 2 ms, 4 ms, 8 ms, 16 ms, 32 ms, 64 ms, 128 ms, 256 ms, 512 ms
Power consumption
0.60 A @ 5 V DC (≈3 W)
Physical & Environmental
Weight
0.75 lbs (0.34 kg)
Dimensions
134 mm × 132 mm (5.28 in × 5.2 in)
Operating temperature
0 °C to 60 °C
