IC600BF914 GE Fanuc
Original price
$366.00
-
Original price
$417.00
Original price
$417.00
$366.00
-
$417.00
Current price
$417.00
Trusted By
Product Details
Specifications provided for reference. Verify critical details against official manufacturer documentation before installation.
Product Overview

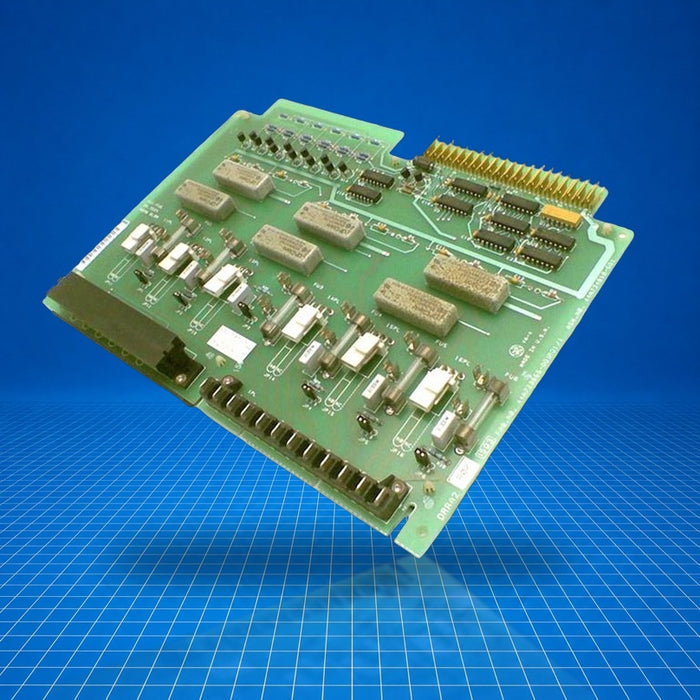

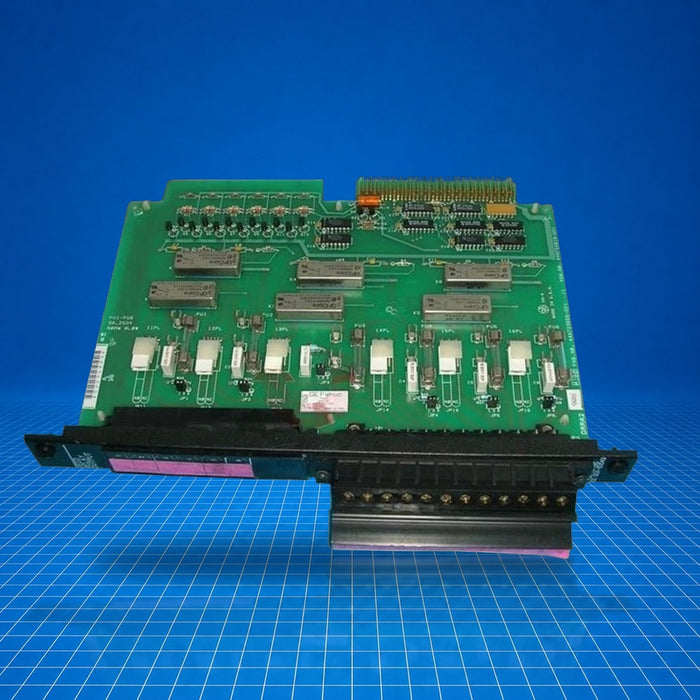

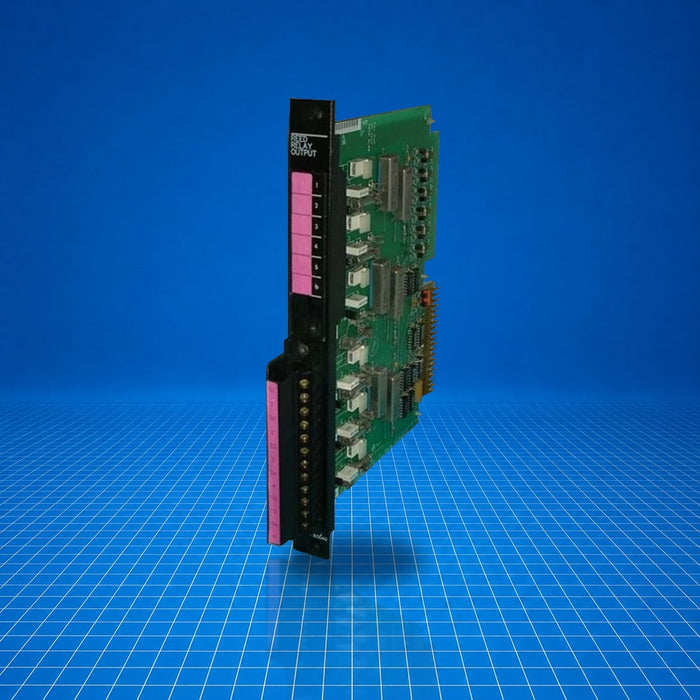

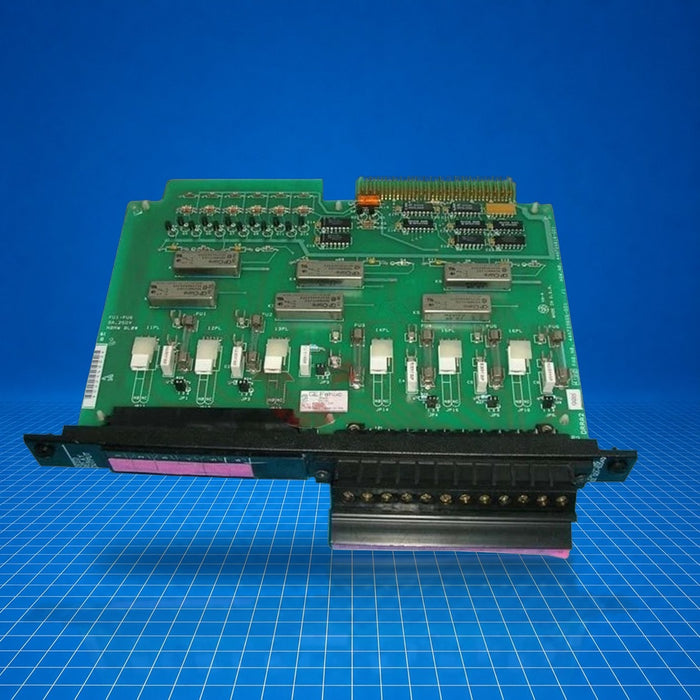

The IC600BF914 is a reed-relay output module in the Series Six family from GE Fanuc (formerly GE Fanuc Emerson). It provides six mercury-wetted relay outputs, with jumper-selectable normally-open or normally-closed contact configuration. Installed in a Series Six I/O rack, the module serves as an interface between a control system's discrete output logic and field-level switching applications. The IC600BF914 supports up to 250 V AC/DC and a contact current up to 2 A, suitable for general-purpose load switching in industrial automation environments. Part number IC600BF914.
Best Suited For
- Discrete output load switching
- Field-device relay isolation
- Normally-open or normally-closed flexible logic outputs
- Medium-voltage AC/DC switching applications
Relay outputs
6
Contact rating
250 V AC/DC, 2 A
Supply voltage
5 V DC, 750 mA
Operating temperature
0 °C to 60 °C (rack exterior)
Mounting
Vertical rack mount
Technical Specifications
I/O & Electrical
Number of relay outputs
6
Contact configuration
Jumper-selectable N.O. or N.C.
Contact voltage rating
250 V AC/DC
Continuous contact current
2 A
Maximum contact resistance
0.05 Ω
Communication & Power
Input voltage
5 V DC
Current consumption
750 mA
Isolation
Electrical, individual fuses per output
Physical & Environmental
Operating temperature
0 °C to 60 °C (at outside of rack)
Storage temperature
-20 °C to 80 °C
Weight
6.00 lb (2.72 kg)
Mounting position
Vertical
