IC600LX624 GE Fanuc
Original price
$638.40
-
Original price
$1,154.92
Original price
$1,154.92
$638.40
-
$1,154.92
Current price
$1,154.92
Trusted By
Product Details
Specifications provided for reference. Verify critical details against official manufacturer documentation before installation.
Product Overview

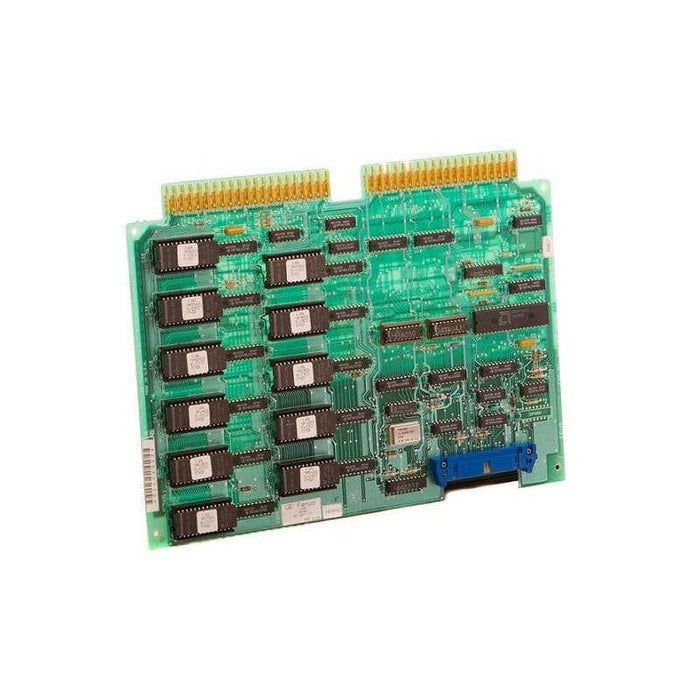

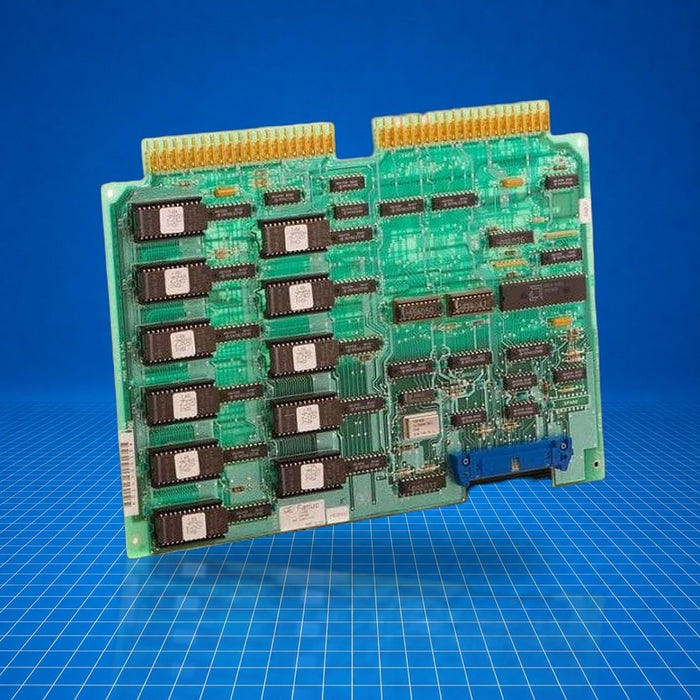

The IC600LX624 is a memory module in the GE Fanuc Series Six family, intended for installation in Series Six PLC racks. It provides volatile logic and register memory resources, augmenting system capability to store and execute user logic. The module supports retention via battery backup and includes LED indicators for status diagnostics. It operates in standard industrial temperature and humidity ranges and integrates into legacy GE Fanuc installations where expanded memory capacity is required.
Best Suited For
- Series Six PLC systems requiring additional logic/register memory
- Applications needing non-volatile data retention during power interruptions
- Maintenance refurbishments in existing GE Fanuc control racks
- Environments adhering to tested operating temperature and humidity limits
Logic memory capacity
16 K words
Register memory capacity
8 K words
Battery-backed retention
Yes
Operating temperature
0 to 60 °C (outside rack)
Technical Specifications
I/O & Electrical
Logic memory capacity
16 K words
Register memory capacity
8 K words
Battery backup
Supported
Battery type
Lithium Manganese Dioxide
Communication & Power
LED indicators
Yes
Physical & Environmental
Weight
6.00 lbs (2.72 kg)
Operating temperature
0 to 60 °C (outside rack)
Storage temperature
-20 to 70 °C
Relative humidity
5 to 95 %, non-condensing
