Product Details
Specifications provided for reference. Verify critical details against official manufacturer documentation before installation.
Product Overview

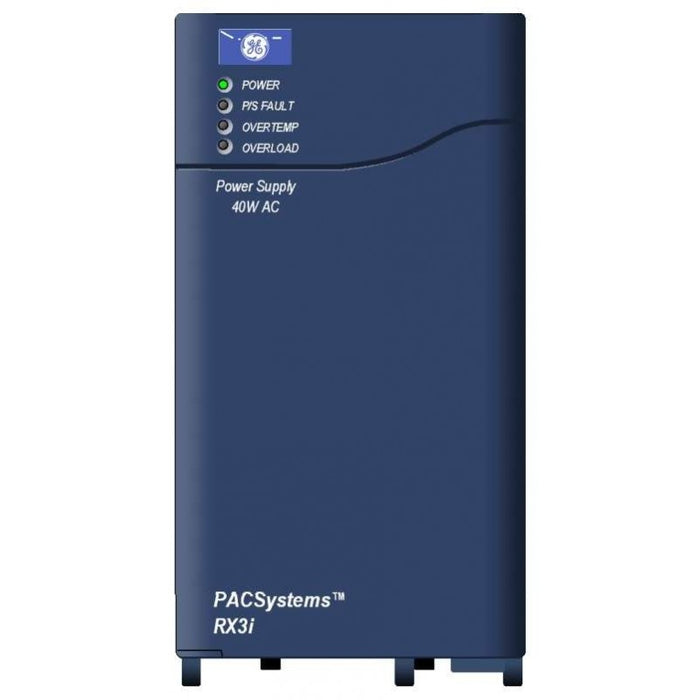

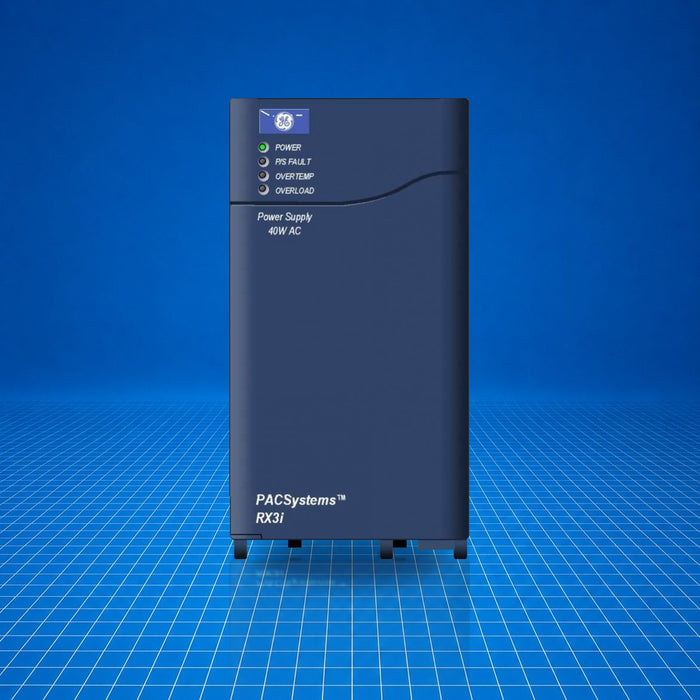

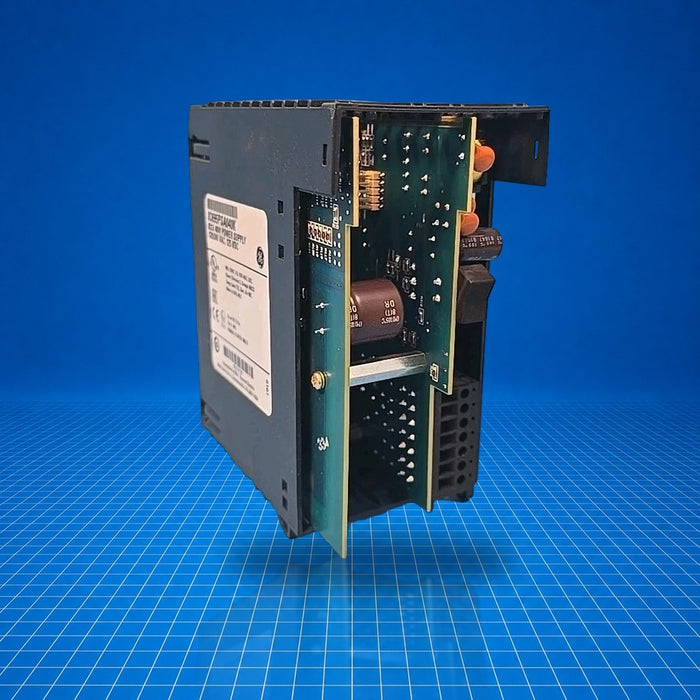

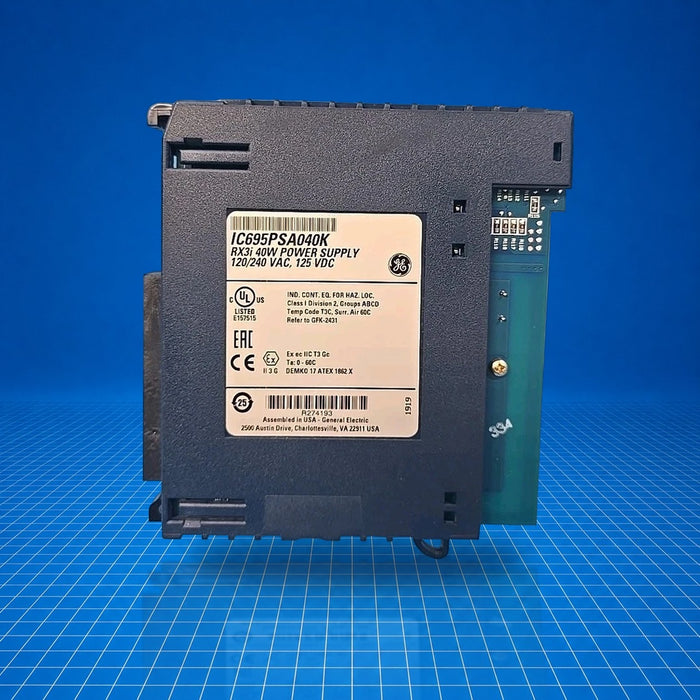

The IC695PSA040 is a 40-watt power supply module in the GE Fanuc PACSystems RX3i (IC695) family. It installs in a universal backplane (occupying two slots) to provide supply voltages for the RX3i control system, including 5.1 VDC, 3.3 VDC (internal use), and 24 VDC (relay output). It accepts a wide AC or DC input range and includes status LEDs and an ON/OFF switch. IC695PSA040 modules are used in standard RX3i system power configurations.
Best Suited For
- Standard RX3i PACSystems installations
- Supplying 5.1 V, 3.3 V, and 24 V relay power to RX3i modules
- Small to medium industrial control racks
- Replacement of existing IC695PSA040 units
Output power
40 W
Input voltage range
85-264 VAC or 100-300 VDC
Outputs
5.1 VDC, 3.3 VDC, 24 VDC relay
Slots occupied
2 (universal backplane)
LED indicators
Power, P/S Fault, Overload, Over-temperature
Technical Specifications
I/O & Electrical
Input voltage
85-264 VAC or 100-300 VDC
Nominal input
120/240 VAC or 125 VDC
Input power (full load)
70 W (input power)
Output power
40 W
Output voltages
+5.1 VDC, +3.3 VDC, +24 VDC relay
Output current (5.1 V)
0-6 A
Output current (3.3 V)
0-9 A
Output voltage range (24 V output)
19.2-28.8 VDC
Isolation input-to-backplane
250 VAC continuous; 1500 VAC for 1 min
Communication & Power
ON/OFF switch
Yes, behind hinged door
Backplane support
Universal backplane only
Physical & Environmental
Weight
1.19 lbs (0.54 kg)
Operating temperature
0 to 60 °C (32 to 140 °F)
Storage temperature
-40 to 85 °C (-40 to 185 °F)
Certifications
ULCEATEXCCCABSBVLR
Agency approvals may include UL, CE, ATEX, CCC, Marine (ABS, BV, LR) depending on version.
