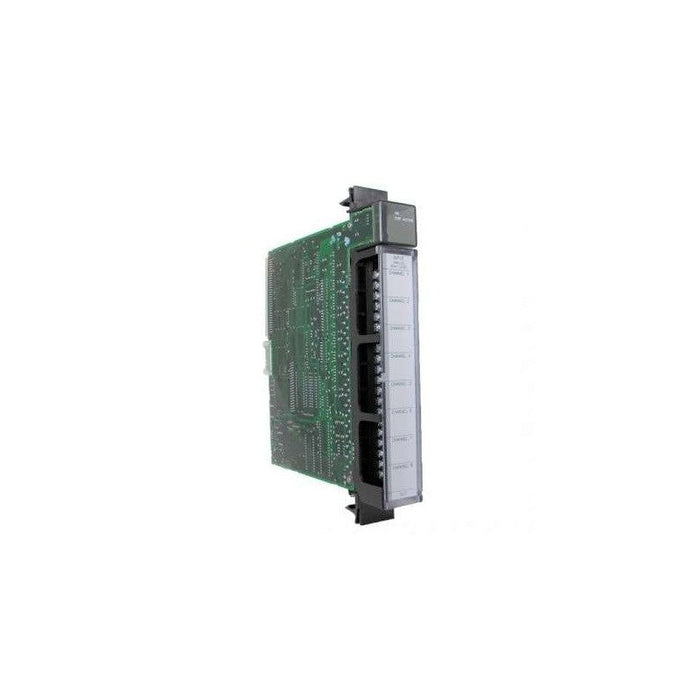

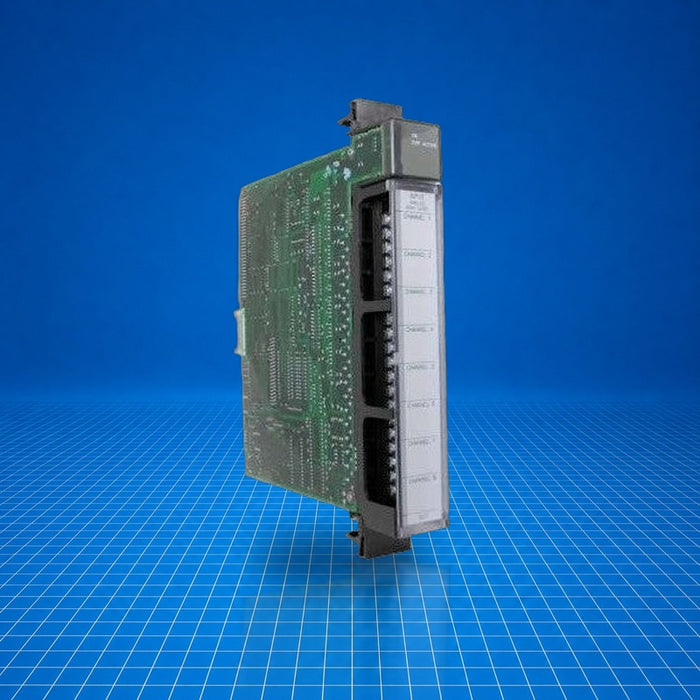

IC697ALG440 GE Fanuc
Original price
$825.00
-
Original price
$1,422.63
Original price
$825.00
$825.00
-
$1,422.63
Current price
$825.00
Trusted By
Product Details
Specifications provided for reference. Verify critical details against official manufacturer documentation before installation.
Product Overview
The IC697ALG440 is an analog current-input expander module in the GE Fanuc Series 90-70 PLC platform. It adds sixteen 4-20 mA current input channels to a base converter, converting field current signals into digital two's-complement format for the controller. Installed adjacent to the base converter, the IC697ALG440 contributes to a scalable high-level analog subsystem supporting up to 120 inputs. It includes diagnostic LEDs and error detection for maintenance visibility.
Best Suited For
- Expanding analog current input capacity in Series 90-70 PLC systems
- Industrial process control signal monitoring (4-20 mA loops)
- Applications requiring channel-level diagnostics
- Configurations with base converter modules for mixed analog input systems
Analog inputs
16 channels
Input range
4 to 20 mA
Resolution
16-bit
Power requirement
0.4 A (2 W) at +5 V
Update rate
2.4 ms
Technical Specifications
I/O & Electrical
No. of inputs
16
Current input range
4 to 20 mA
Resolution
16-bit
Update rate
2.4 ms
Accuracy
±0.07% of full scale, ±0.1% of value
Calibration
Factory set at 10 Volts ±2 mV
Communication & Power
Power requirement
0.4 A (2 W) at +5 V
Physical & Environmental
Weight
1.44 lbs (0.65 kg)
