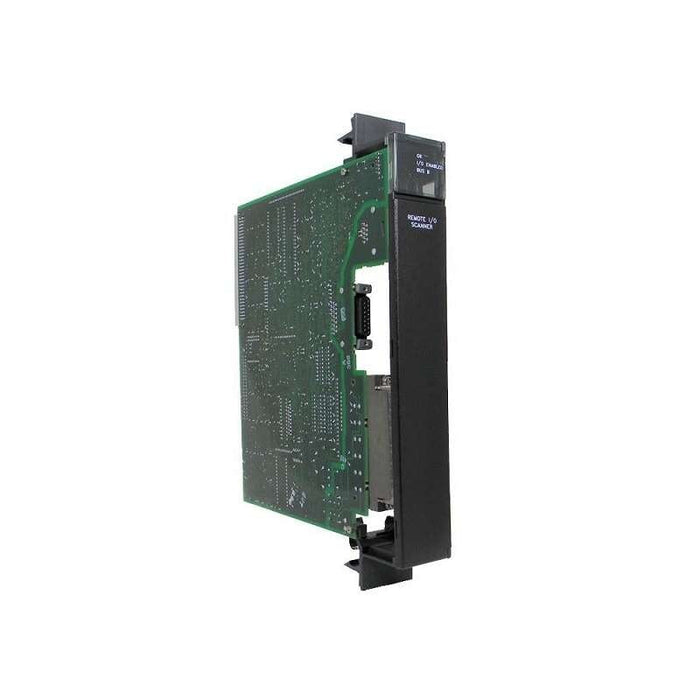

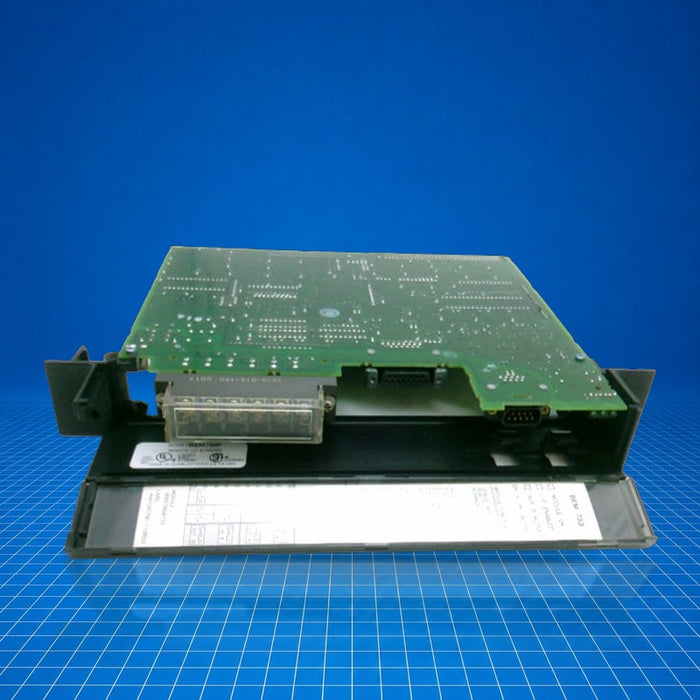

Product image is representative; revision or series may vary.
Contact us to request a specific version.
Contact us to request a specific version.
IC697BEM733 GE Fanuc
Original price
$1,063.95
-
Original price
$3,300.00
Original price
$1,063.95
$1,063.95
-
$3,300.00
Current price
$1,063.95
Trusted By
Product Details
Specifications provided for reference. Verify critical details against official manufacturer documentation before installation.
Product Overview
The IC697BEM733 is a Remote I/O Scanner Module within the GE Fanuc Series 90-70 (Genius) control system. It serves as the interface between the IC697 PLC rack and remote I/O stations over the IC66 bus, enabling distributed discrete and analog I/O deployment up to 7,500 ft (2,275 m) from the controller. The module supports combinations of up to 1,024 discrete points and 64 analog inputs/outputs, and includes RS-422/485 and handheld monitor ports for system integration. The IC697BEM733 integrates into remote I/O architectures of industrial automation systems.
Best Suited For
- Remote distributed I/O expansion from IC697 PLC rack
- Remote station installations up to 7,500 ft (2,275 m)
- Applications mixing discrete and analog I/O over IC66 bus
- Environments requiring handheld monitor diagnostics
I/O capacity
1024 Discrete or 64 Analog I/O
Max bus distance
7,500 ft (2,275 m)
Ports
RS-422/485 serial; handheld monitor; IC66 bus
Backplane current
1.3 A at 5 V DC
Supported data rates
153.6 kbaud, 76.8 kbaud, 38.4 kbaud
Technical Specifications
I/O & Electrical
Operating voltage
5.0 Volts DC
Backplane current consumption
800 mA at 5 V DC
Backplane current (another source)
1.3 Amps
I/O capacity
1024 Discrete I/O or 64 Analog I/O
Supported data rates
153.6 kbaud (std/extended), 76.8 kbaud, 38.4 kbaud
Communication & Power
Serial port
One 15-pin RS-422/485 compatible
Hand-held monitor port
One 9-pin IC66*
Bus terminal
IC66* Bus terminal
Max devices per bus
32 devices (at 153.6/76.8 kbaud); 16 at 38.4 kbaud
Physical & Environmental
Weight
1.06 lbs (0.48 kg)
Slot width
Single slot
LED indicators
Module OK; I/O Enabled; Bus B Active
Max bus length per rate
7500 ft @38.4 kbaud; 4500 ft @76.8 kbaud; 3500 ft @153.6 kbaud ext; 2000 ft @153.6 kbaud std
