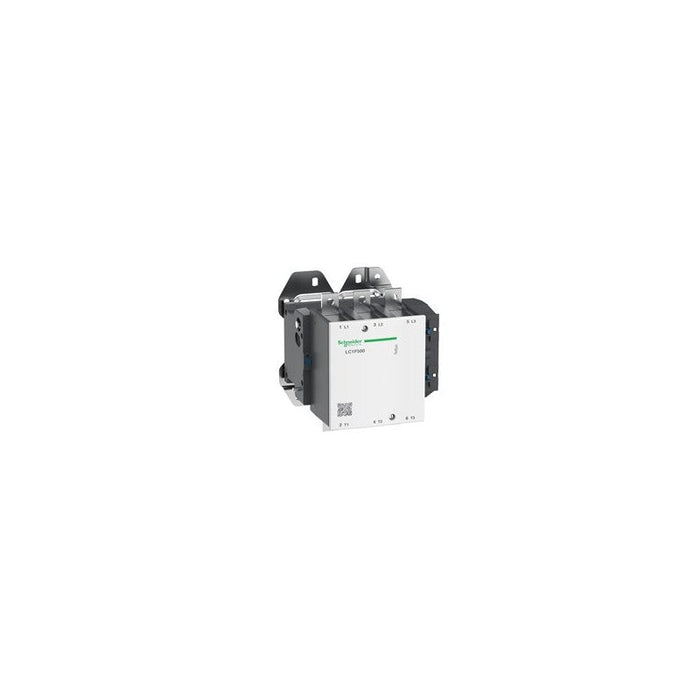

Product image is representative; revision or series may vary.
Contact us to request a specific version.
Contact us to request a specific version.

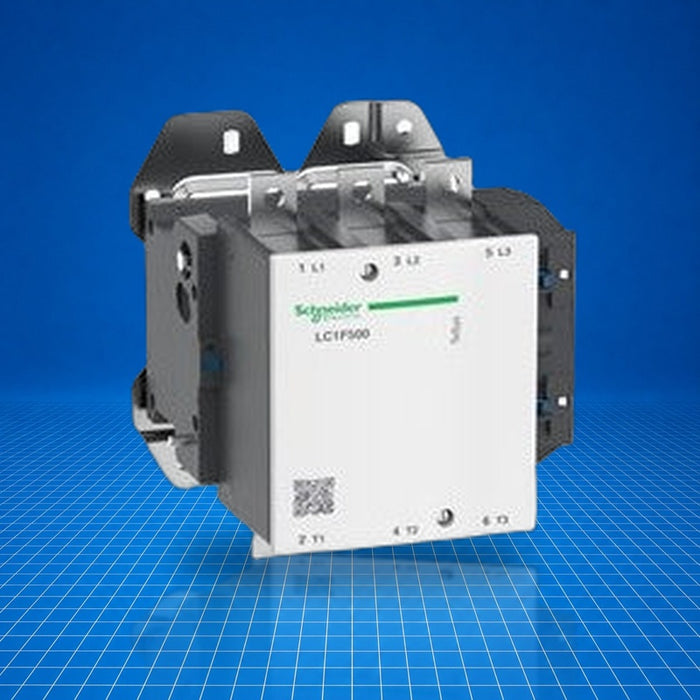

LC1F500 Schneider Electric
Original price
$444.00
-
Original price
$2,947.98
Original price
$444.00
$444.00
-
$2,947.98
Current price
$444.00
Trusted By
Product Details
Specifications provided for reference. Verify critical details against official manufacturer documentation before installation.
Product Overview
LC1F500 is a Schneider Electric TeSys F series three-pole (3 NO) AC-3 contactor body without coil, rated for up to 500 A at ≤ 440 V AC. It is used for direct-on-line motor control and resistive load switching in industrial control panels and machine power circuits. This part allows separation of the power switching function from the coil, facilitating coil selection and maintenance flexibility. LC1F500 is the base contactor body and accepts various coils compatible with the TeSys F platform.
Best Suited For
- Heavy-duty three-phase motor switching
- Direct-on-line motor starters in industrial panels
- High-current resistive load control
- Replacement of legacy TeSys F contactors
Rated operational current (AC-3 ≤ 440 V AC)
500 A
Poles
3 NO
Utilisation category
AC-3, AC-1, AC-4
Thermal current Ith
700 A (free air)
IP rating (front with shrouds)
IP20
Technical Specifications
I/O & Electrical
Rated operational current (AC-1 ≤ 440 V)
700 A (at < 40 °C)
Thermal current Ith
700 A free-air
Short-time withstand current (Icw)
4200 A (10 s @ 40 °C); 3200 A (30 s); 2400 A (1 min); 1500 A (3 min); 1200 A (10 min)
Rated breaking capacity
4000 A (IEC 60947-4-1)
Communication & Power
Inrush power (VA)
1100 VA (40…400 Hz, cos φ 0.9 @ 20 °C)
Hold-in power (VA)
18 VA (40…400 Hz, cos φ 0.9 @ 20 °C)
Power dissipation per pole
45 W (AC-3), 88 W (AC-1)
Control-circuit voltage range
0.85…1.1 Uc (operational) and 0.3…0.5 Uc (drop-out) @ 55 °C, 40…400 Hz
Physical & Environmental
Mechanical durability
10 million cycles
Operating rate
2400 cycles/hour (≤ 55 °C)
Mounting support
Plate
Terminal connections
Power: bar or lugs (up to 240 mm²); Control: screw clamps 1…4 mm²
Operating temperature
-5 … 55 °C
Storage temperature
-60 … 80 °C (or up to -40 … 70 °C)
Rated insulation voltage (Ui)
1000 V (IEC 60947-4-1); 1500 V (VDE 0110, group C)
Certifications
ULCSACBDNVABSRINABVLROSRMRoS
Complies with IEC 60947-1 and IEC 60947-4-1 standards; certifications include UL, CSA, CB, DNV, ABS, RINA, BV, LROS, RMRoS.
