LP1K0901BD Schneider Electric
Original price
$404.00
-
Original price
$491.40
Original price
$491.40
$404.00
-
$491.40
Current price
$491.40
Trusted By
Product Details
Specifications provided for reference. Verify critical details against official manufacturer documentation before installation.
Product Overview

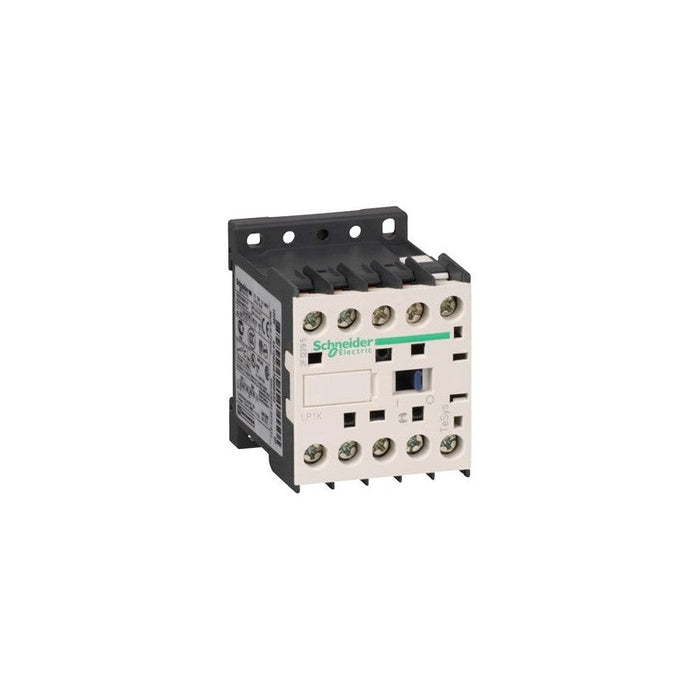

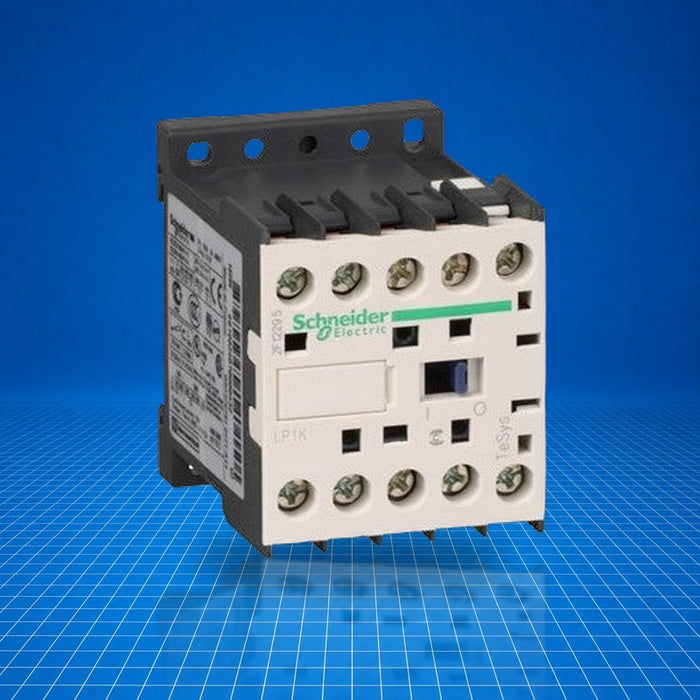

The LP1K0901BD is a TeSys K series miniature contactor from Schneider Electric. It is a three-pole (3P) AC-3/AC-1/AC-4 contactor intended for motor control and resistive load applications. With a 24 V DC control coil and one normally-closed auxiliary contact, it serves as a compact switching device in industrial control panels, motor starters, conveyor systems, and infrastructure installations. LP1K0901BD reliably performs control functions and integrates into TeSys K control circuits.
Best Suited For
- Control of single-phase or three-phase motors up to 9 A (AC-3)
- Resistive load switching within TeSys K contactor platform
- Use in motor starter assemblies or compact control panels
- Applications requiring 24 V DC coil control and one NC auxiliary contact
Poles
3P (3 NO)
Rated current (AC-3)
9 A (≤ 440 V AC)
Control coil voltage
24 V DC
Auxiliary contacts
1 NC
Technical Specifications
I/O & Electrical
Rated operational voltage (Ue)
690 V AC 50/60 Hz (power circuit); ≤ 690 V AC (signalling circuit)
Rated operational current (Ie)
9 A at ≤ 440 V AC AC-3; 20 A at ≤ 440 V AC AC-1; 16 A at 690 V AC AC-1
Motor power (kW)
2.2 kW at 400 V AC AC-4; various up to 4 kW up to 690 V AC AC-3
Insulation voltage (Ui)
690 V (IEC); 600 V (UL/CSA)
Impulse withstand voltage (Uimp)
8 kV
Communication & Power
Coil control circuit voltage (Uc)
24 V DC
Inrush power
3 W at 20 °C
Hold-in power consumption
3 W at 20 °C
Heat dissipation
3 W
Physical & Environmental
Terminals
Screw-clamp: solid 1.5-4 mm²; flexible 0.75-4 mm² (no end); flexible 0.34-2.5 mm² (with end); variants for 2 cables
Operating rate
3,600 cycles/hour
Mechanical durability
10 M cycles
Electrical durability
0.18 M cycles (20 A AC-1 ≤ 440 V); 1.3 M cycles (9 A AC-3 ≤ 440 V)
Shock resistance
15 gn (closed), 10 gn (open) on Z axis, IEC 60068-2-27
Vibration resistance
4 gn, 5-300 Hz, IEC 60068-2-6
Operating time
Coil energisation & NO closing: 30-40 ms; de-energisation & NO opening: 10 ms
