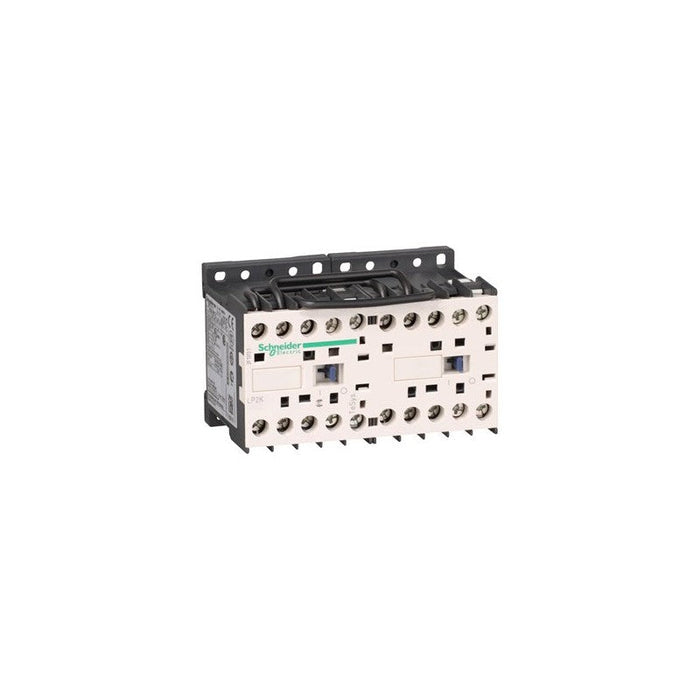

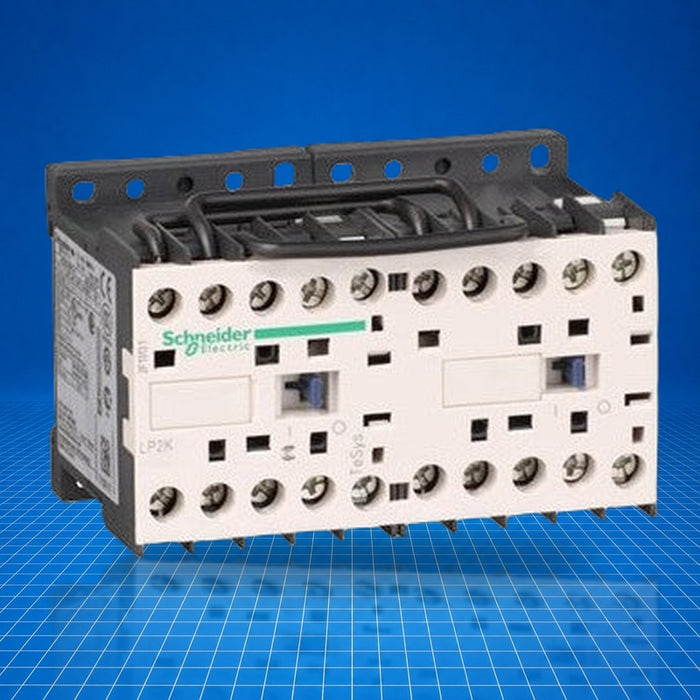

LP2K0901BD Schneider Electric

Name: LP2K0901BD Schneider Electric
Brand: Schneider
SKU: LP2K0901BD
Price: 486.36 USD
Availability: InStock

$486.36 - $737.76

$486.36

$486.36 - $737.76

$486.36

Ships today if ordered by 1 PM CST

Overnight shipping available

Qty Available: (6) ✓ Verified Stock every 24hrs

Questions? (833) 800-7748

All products listed are sold by PLC Department, an independent supplier — not an authorized Schneider distributor. Covered by our 1-year warranty. By purchasing you acknowledge our full disclaimer. Read & agree ↓

Ships from Texas, USA

Same-day by 1 PM CST

Tested & inspected

Every unit, before it ships

1-year warranty

Backed direct by us

30-day returns

Hassle-free RMA

Stock verified / 24 hrs

Real-time availability

Photos on request

Your exact unit, ~5 min

Trusted By

Product Details

Description · Specifications · Product Overview

Specifications provided for reference. Verify critical details against official manufacturer documentation before installation.

Product Overview

The LP2K0901BD is a TeSys K reversing contactor designed for motor control and control applications within control systems. It features a preassembled reversing power busbar in a three-pole configuration, enabling forward/reverse motor operation. With a 24 V DC coil and one normally-closed auxiliary contact, it is suited for reversing AC motors up to specified ratings. Typical uses include reversing feeders, motor direction control in machinery, and compact panel integration.

Best Suited For

Reversing motor direction in compact panels
Control applications requiring 3-phase reversal
Use with TeSys-K modular assemblies
Applications with ≤440 V AC AC-3 motor control

Poles

3P

Rated operational current (AC-3)

9 A (≤ 440 V AC)

Control coil voltage

24 V DC

Auxiliary contact

1 NC

Utilisation category

AC-3, AC-1, AC-4

Technical Specifications

I/O & Electrical

Rated operational voltage (Ue)

≤ 690 V AC

Rated operational current (Ie)

9 A at ≤ 440 V AC (AC-3); 20 A at ≤ 440 V AC (AC-1, ≤50 °C); 16 A at 690 V AC (AC-1, ≤70 °C)

Motor power

4 kW at 380-415 V, 440 V, 480 V, 500-600 V, 660-690 V; 2.2 kW at 220-230 V (50/60 Hz)

Communication & Power

Control circuit type

DC standard

Control circuit voltage (Uc)

24 V DC

Rated impulse withstand voltage (Uimp)

8 kV

Overvoltage category

III

Physical & Environmental

Auxiliary contacts

Type instantaneous, 1 NC

Insulation resistance

> 10 MΩ (signalling circuit)

Minimum switching current

5 mA (signalling)

Minimum switching voltage

17 V (signalling)

Non-overlap distance

0.5 mm

IP degree of protection

IP2x

Ambient operating temperature

-25…50 °C

Ambient storage temperature

-50…80 °C

Operating altitude

2000 m without derating

Dimensions (H×W×D)

58 mm × 90 mm × 57 mm

Weight

0.48 kg

Certifications

IEC 60947ULCSAVDERoHSGreen Premium

Flame retardance V1 per UL 94; mechanical shocks up to 15 g; vibration withstand 4 g (closed), 2 g (open) per IEC 60068-2-6/27; Green Premium product, RoHS-compliant, REACh compliant.
