LTMCU Schneider Electric

Original price $719.96 - Original price $791.96
Original price
$719.96
$719.96 - $791.96
Current price $719.96
Surplus - Tested (With Warranty)
Need a Specific Revision?
$719.96
5 in stock
New / Open-Box Surplus
Need a Specific Revision?
$791.96
3 in stock
Ships today if ordered by 1 PM CST
Overnight shipping available
Qty Available: (5) ✓ Verified Stock every 24hrs
Questions? (833) 800-7748

All products listed are sold by PLC Department, an independent supplier — not an authorized Schneider distributor. Covered by our 1-year warranty. By purchasing you acknowledge our full disclaimer. Read & agree ↓

Ships from Texas, USA
Same-day by 1 PM CST
Tested & inspected
Every unit, before it ships
1-year warranty
Backed direct by us
30-day returns
Hassle-free RMA
Stock verified / 24 hrs
Real-time availability
Photos on request
Your exact unit, ~5 min
Trusted By

Product Details

Description · Specifications · Product Overview

Specifications provided for reference. Verify critical details against official manufacturer documentation before installation.

Product Overview

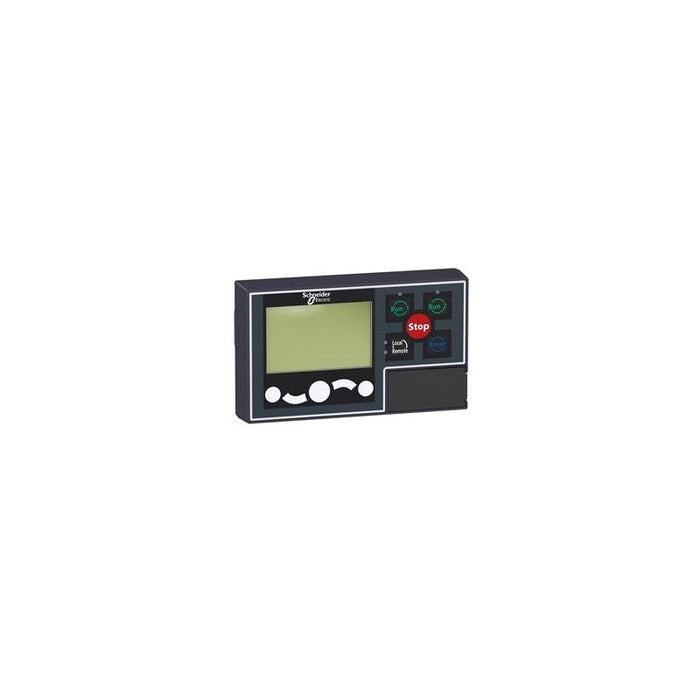

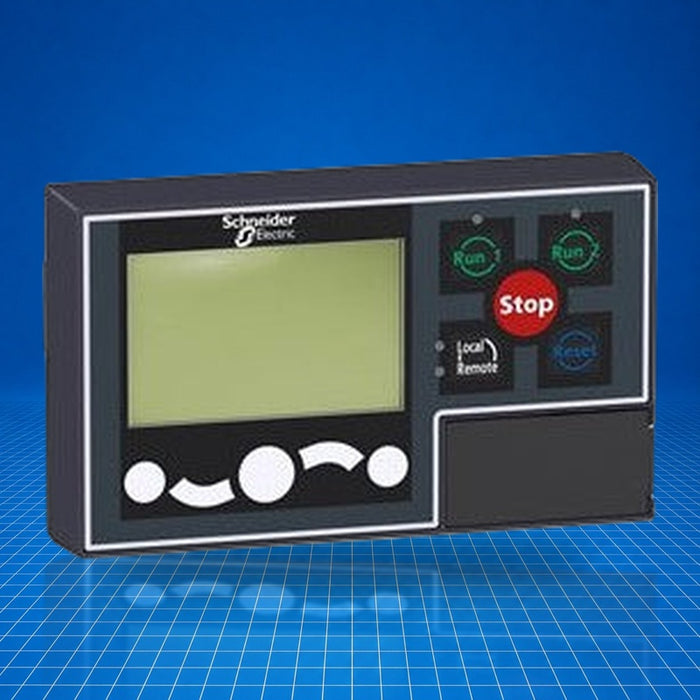

The LTMCU is an operator control unit (HMI) within the Schneider Electric TeSys T motor management system. It interfaces with an LTMR controller to configure parameters, display operational data, monitor alarms and faults, and provide local motor control via configurable keys. The unit is powered through the LTMR controller and typically deployed in industrial motor control panels, including motor starters and drives, where direct human interface is required. Part number LTMCU appears in control system setups involving TeSys T overload relay units.

Best Suited For

  • TeSys T motor management system integration
  • Local configuration and monitoring of LTMR controllers
  • Panel-mounted HMI for motor starter applications
  • Environments requiring language-selectable interface via LTMCU
Display type
Backlit LCD
Mounting
Flush-mounted
Connection
RJ45 (front and rear)
Max current demand
140 mA
Operating temp (inside cabinet)
-20…+60 °C

Technical Specifications

I/O & Electrical

Supply method
Powered via LTMR controller
Maximum current
140 mA
Maximum power dissipated
1 W

Communication & Power

Front connection
RJ45 female
Rear connection
RJ45 female

Physical & Environmental

Dimensions
117 × 70 × 55 mm (4.61 × 2.76 × 2.17 in.)
Mounting method
Panel flush-mount via spring-clip, panels 0.8-6 mm thick
Storage temperature
-40…+80 °C
Operation temperature (inside cabinet)
-20…+60 °C
Operation temperature (outside cabinet)
-20…+55 °C
Humidity
15-95 % non-condensing
Degree of protection (outside part)
IP54
Degree of protection (inside part)
IP20
Shock resistance
15 g, 11 ms, 3 axes
Vibration resistance
4 g, 5-300 Hz
