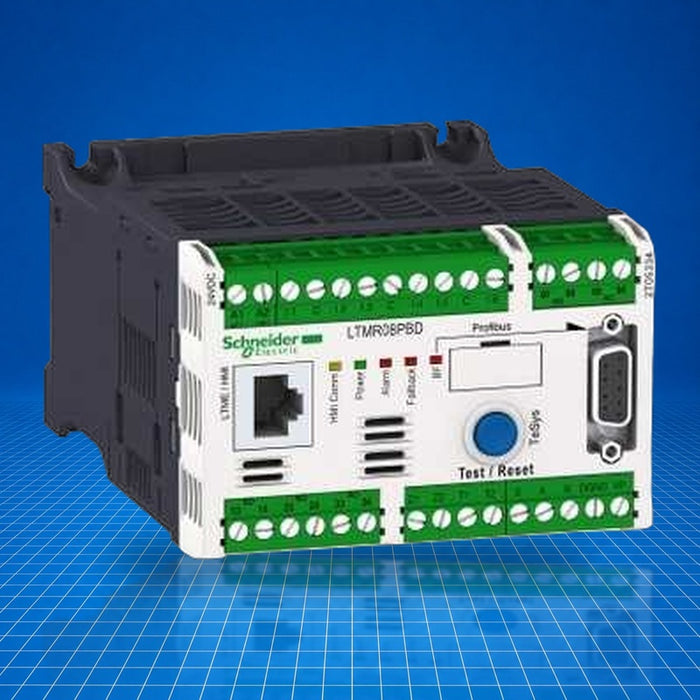

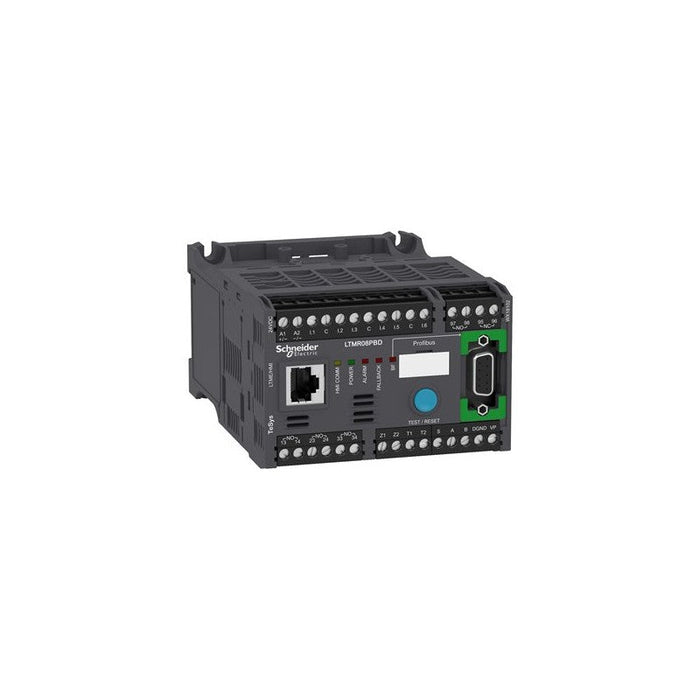

LTMR08PBD Schneider Electric
Original price
$906.68
-
Original price
$1,851.59
Original price
$906.68
$906.68
-
$1,851.59
Current price
$906.68
Trusted By
Product Details
Specifications provided for reference. Verify critical details against official manufacturer documentation before installation.
Product Overview
The LTMR08PBD is a TeSys T motor management controller by Schneider Electric featuring Profibus DP communication. Rated for 0.4-8 A motor current control at 24 V DC control voltage, it provides six logic inputs and three relay logic outputs for motor protection and control in industrial systems. It integrates into motor control applications such as starter assemblies or motor control centers. Typically deployed in process control, manufacturing lines, or machine tool protection, LTMR08PBD allows digital communication and local termination for automated supervision. Part number LTMR08PBD.
Best Suited For
- Integration in motor starter assemblies using Profibus DP
- Remote motor protection with logic input/output control
- Control of small-to-medium horsepower motors (0.4-8 A range)
- Retrofit or replacement in TeSys T systems
Control voltage
24 V DC
Motor current range
0.4-8 A
Logic inputs
6
Relay logic outputs
3
Communication protocol
Profibus DP
Technical Specifications
I/O & Electrical
Logic inputs
6
Relay outputs
3
Communication & Power
Control voltage
24 V DC
Motor current range
0.4-8 A
Communication protocol
Profibus DP
