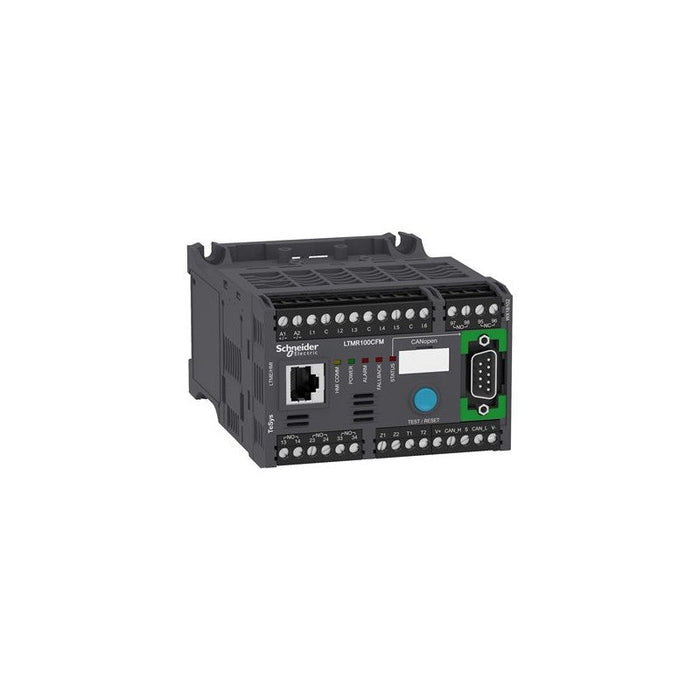

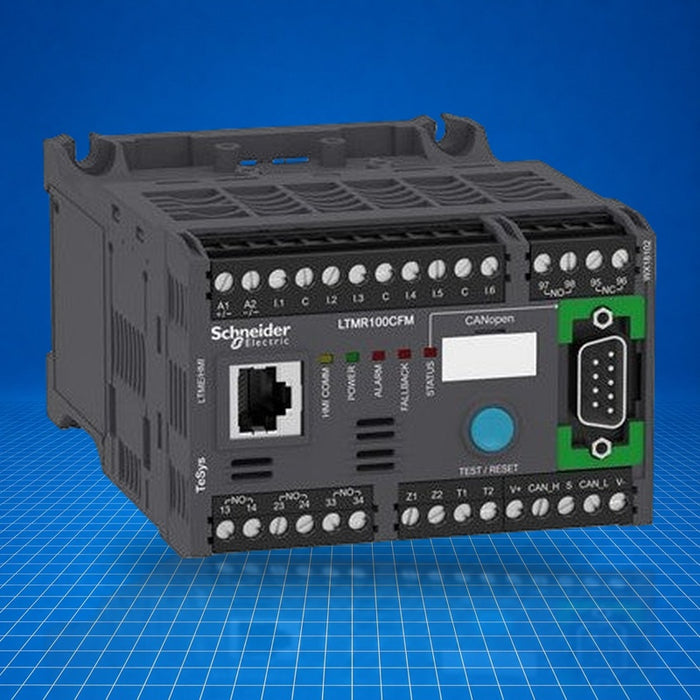

LTMR100CFM Schneider Electric
Original price
$0.00
-
Original price
$1,319.97
Original price
$1,319.97
$0.00
-
$1,319.97
Current price
$1,319.97
Trusted By
Product Details
Specifications provided for reference. Verify critical details against official manufacturer documentation before installation.
Product Overview
The LTMR100CFM is a TeSys T motor management controller by Schneider Electric, supporting CANopen communication. It supervises and protects three-phase motors in ranges of 5 A to 100 A under 100…240 VAC control voltages. Incorporated in automation systems, LTMR100CFM performs monitoring of current, ground current, motor temperature, and, with optional expansion, voltage and power. Typical industrial uses include motor protection, predictive fault detection, and integration within CANopen networks. Part number LTMR100CFM provides these functions without additional adaptation.
Best Suited For
- CANopen-based motor control networks
- Overload and thermal protection of 5-100 A motors
- Integration into critical-process motor management
- Use with optional expansion modules for voltage/power measurement
Control voltage
100…240 VAC
Current measurement range
5…100 A
Logic inputs
6 discrete logic inputs
Logic outputs
3 relay outputs (plus fault output)
Communication protocol
CANopen
Technical Specifications
I/O & Electrical
Logic inputs
6 discrete logic inputs
Logic outputs
3 relay logic outputs (volt-free)
Fault output
1 relay output (N.O. + N.C.)
Communication & Power
Control voltage
100…240 VAC
Communication protocol
CANopen
Current measurement accuracy
+/- 2 % for 100 A models
Line current resolution
0.01 A
Line current refresh
100 ms
Certifications
ULCSACEATEXBVDNV-GLRINAABSCCCNOMEAC
