LTMR100PFM Schneider Electric
Product Details
Specifications provided for reference. Verify critical details against official manufacturer documentation before installation.
Product Overview

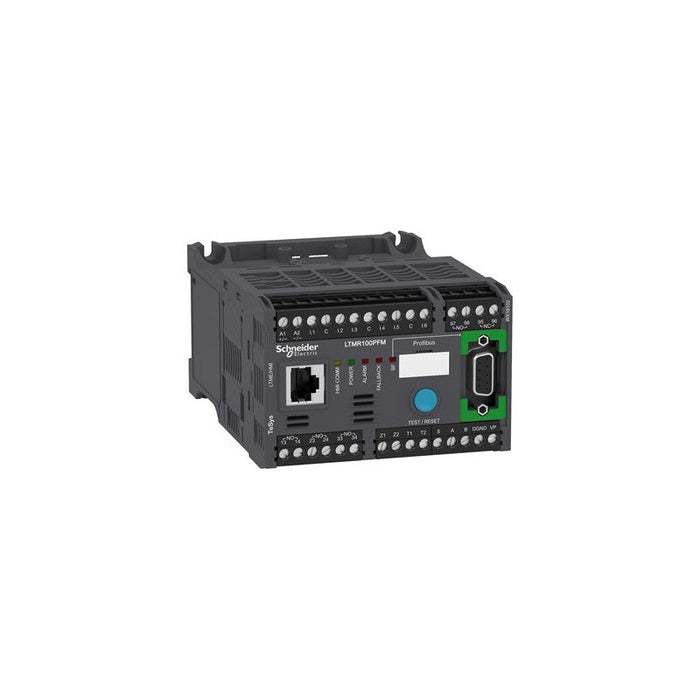

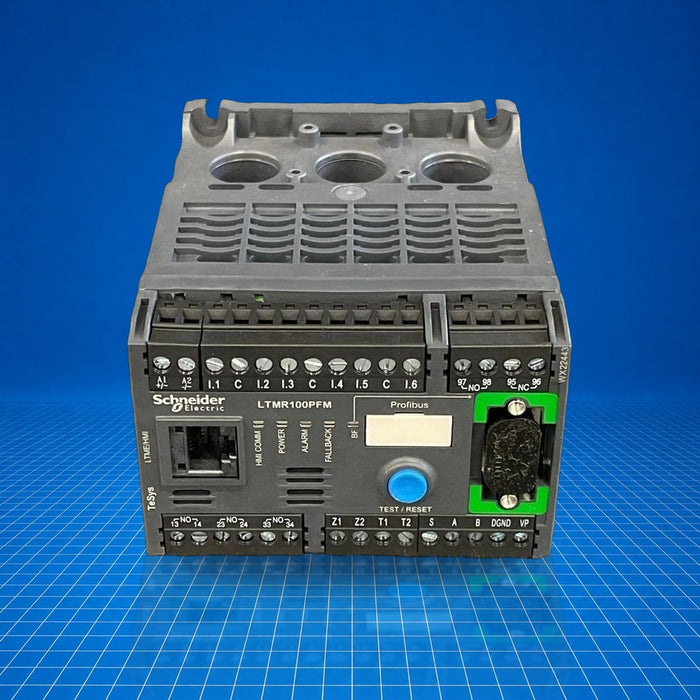

The Schneider Electric LTMR100PFM is a TeSys T-series motor controller offering motor protection, monitoring and control with Profibus DP communication. It supports motor current from 5 to 100 A and operates on a 100-240 VAC control voltage. The module integrates six logic inputs and three logic outputs, plus a fault relay, for direct control or integration into distributed Profibus DP systems. It is employed in industrial motor management tasks such as overload protection, phase-loss detection, and automatic trip logging. LTMR100PFM is part of Schneider's TeSys T Motor Management family and serves in PLC-based and automated manufacturing installations.
Best Suited For
- Profibus DP-based motor control networks
- Overload and phase-failure protection in motor circuits
- Integration into NEMA or IEC starter assemblies
- Logging of trip events and runtimes via communication link
Technical Specifications
I/O & Electrical
Communication & Power
Physical & Environmental
Certifications
Conforms to EN 60947-4-1, UL 508, CSA C22.2 No 14; insulation voltage 690 V; impulse withstand 4 kV (supply, I/O), 6 kV (measurement circuit), 10.8 kV (comm); short-circuit withstand 100 kA; overvoltage category III.
