LUB32 Schneider Electric
Original price
$420.00
-
Original price
$420.00
Original price
$420.00
$420.00
-
$420.00
Current price
$420.00
Trusted By
Product Details
Specifications provided for reference. Verify critical details against official manufacturer documentation before installation.
Product Overview

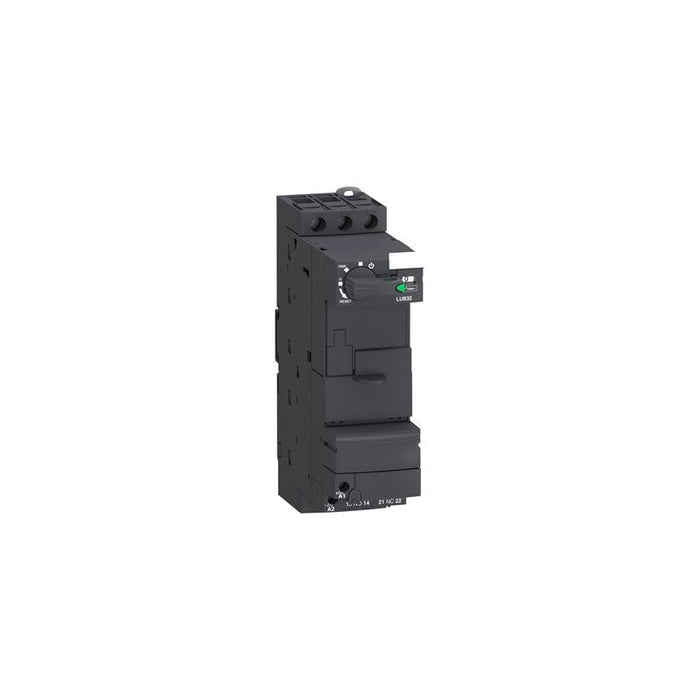

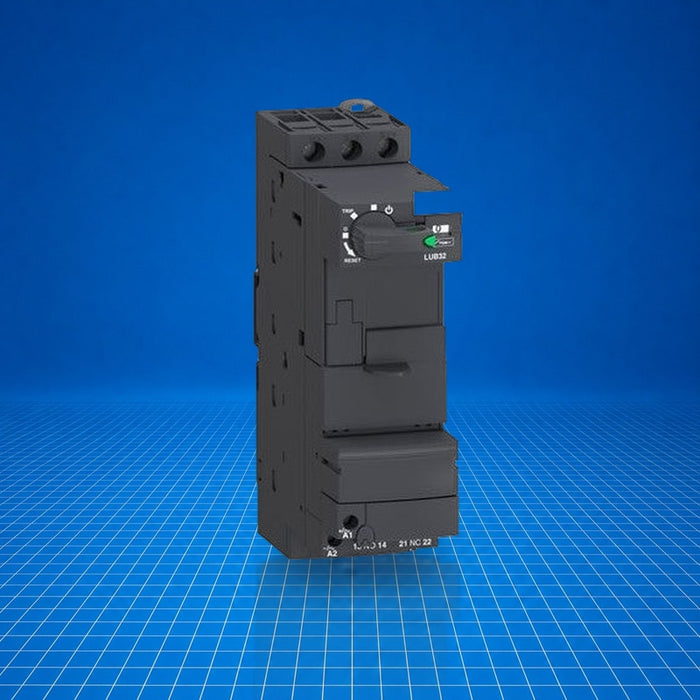

The LUB32 is a TeSys U power base from Schneider Electric, intended for three-phase motor starter assemblies. It functions as a non-reversing, full-voltage power base that must be completed with a LUC control unit to provide motor control and protection. It supports up to 32 A at conventional free-air thermal current and is suitable for motor applications up to 15 kW at 400 V. Part number LUB32 is part of the TeSys Ultra platform and serves as the foundation for modular combination motor starter construction.
Best Suited For
- Three-phase motor control up to 15 kW at 400 V
- Non-reversing starter configurations
- DIN-rail or plate mounting with modular control blocks
- Applications requiring high breaking capacity up to 50 kA @ 400 V
Conventional thermal current (Ith)
32 A
Rated operational voltage (Ue)
690 V AC
Utilisation category
AC-43, AC-41, AC-44
Breaking capacity (Icu)
50 kA @ 400 V
Width
45 mm
Technical Specifications
I/O & Electrical
Rated operational current (Ie)
32 A ≤ 440 V; 23 A @ 500 V; 21 A @ 690 V
Poles
3P (three poles)
Communication & Power
Network frequency
40…60 Hz
Conventional thermal current
32 A
Physical & Environmental
Mounting
DIN-rail or plate (screw-fixed)
Width
45 mm
Height
154 mm
Depth
126 mm
Weight
0.9 kg (2.0 lb)
Certifications
IEC 60947-6-2CEULCSACCCEACASEFAATEXMarine
