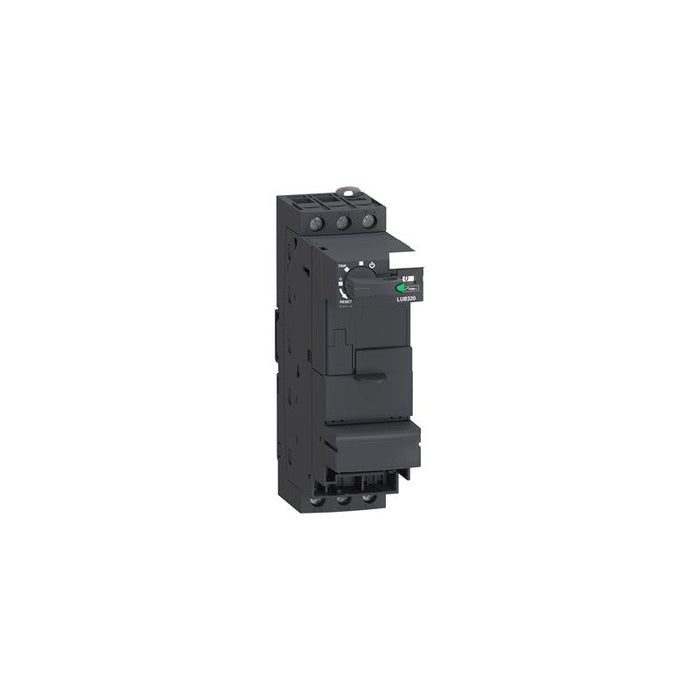

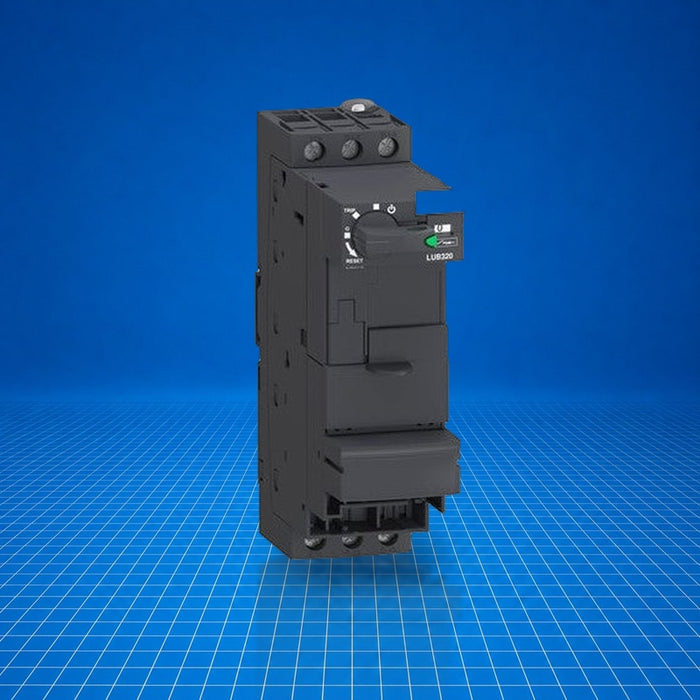

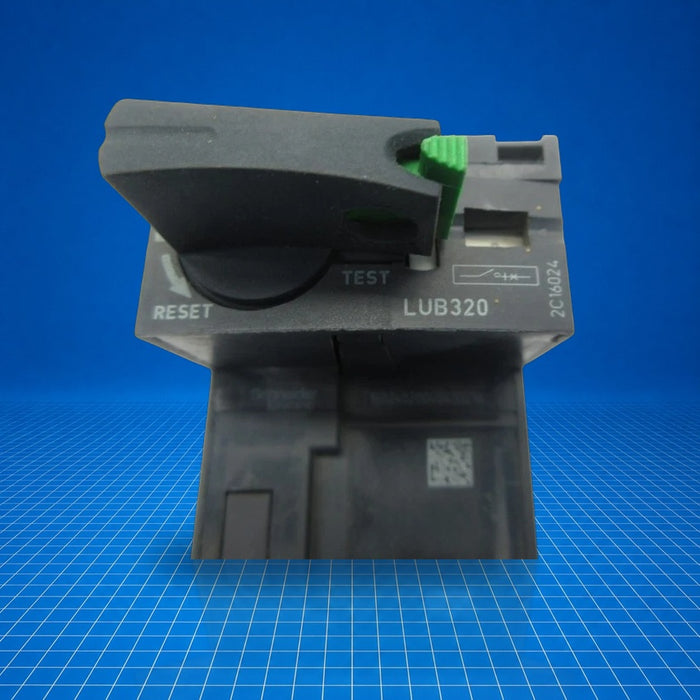

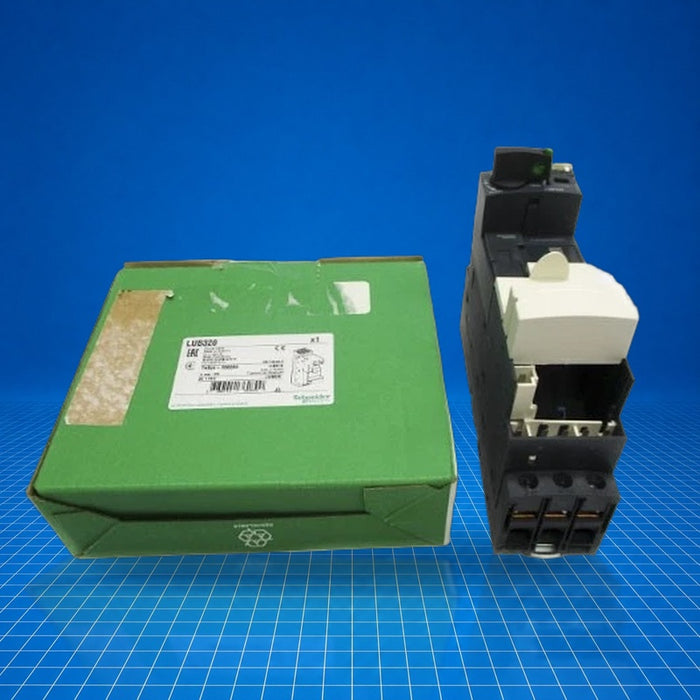

LUB320 Schneider Electric
Original price
$796.00
-
Original price
$1,001.00
Original price
$796.00
$796.00
-
$1,001.00
Current price
$796.00
Trusted By
Product Details
Specifications provided for reference. Verify critical details against official manufacturer documentation before installation.
Product Overview
The LUB320 is a TeSys Ultra non-reversing power base manufactured by Schneider Electric. It is part of the TeSys U family, designed to serve as the power base in combination motor starters, to be completed with a separate control unit (LUC). In a control system, the LUB320 supplies the main power contacts plus auxiliary contacts and accommodates control and protection modules. Typical industrial applications include three-phase motor starting and protection in motor control centers, machine tool drives, and factory automation systems. LUB320
Best Suited For
- Three-phase motor starters up to 32 A
- Combination starters using TeSys U control units
- Applications requiring padlockable rotary handle isolation
- DIN-rail or screw-fixed modular motor control assemblies
Rated operational voltage
690 V AC
Conventional thermal current Ith
32 A
Auxiliary contacts
1 NO + 1 NC
Breaking capacity Icu
50 kA @ 400 V
Mechanical durability
15 million cycles
Technical Specifications
I/O & Electrical
Operational voltage (Ue)
690 V AC
Conventional free-air thermal current (Ith)
32 A
Breaking capacity (Icu)
50 kA @ 400 V
Auxiliary contacts
1 NO + 1 NC
Communication & Power
Utilisation category
AC-41, AC-43, AC-44
Control circuit suitability
Isolation capable
Physical & Environmental
Mounting
DIN-rail or screw fixing
Width
45 mm (1.8 in)
Height
154 mm (6.06 in)
Depth
126 mm (5.0 in)
Weight
0.9 kg (2.0 lb)
Mechanical durability
15 million cycles
Max operating rate
3600 cycles/h
Certifications
IEC 60947-6-2UL 508CSACCCEACMarine
