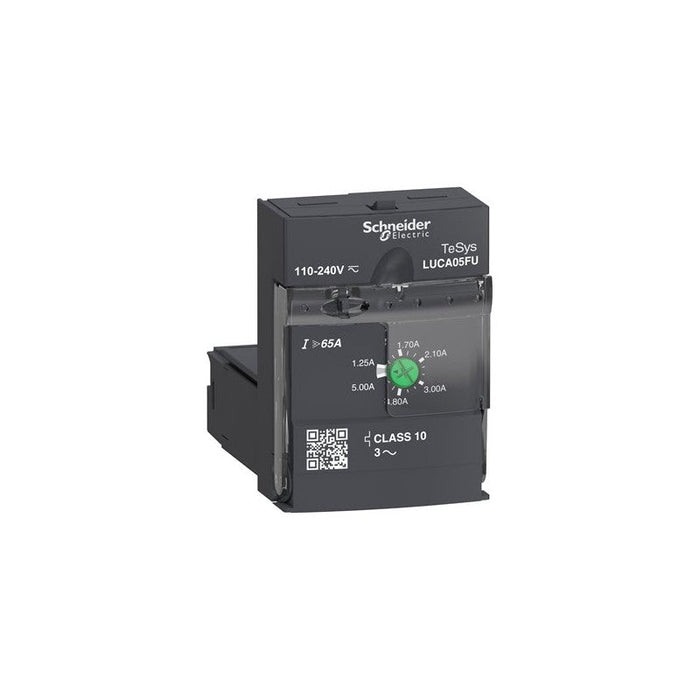

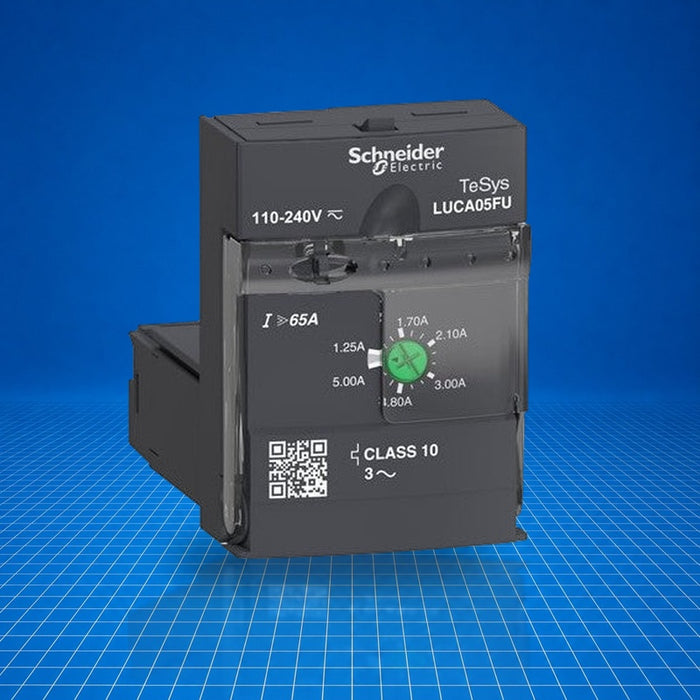

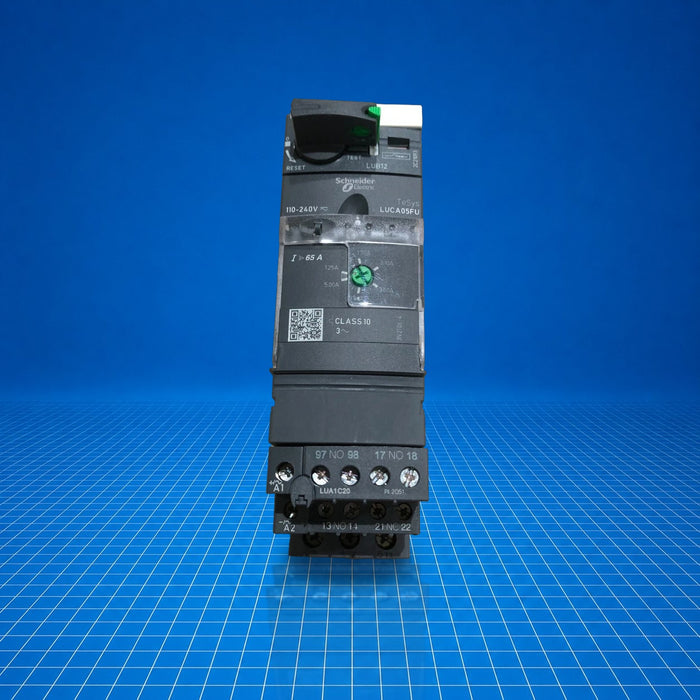

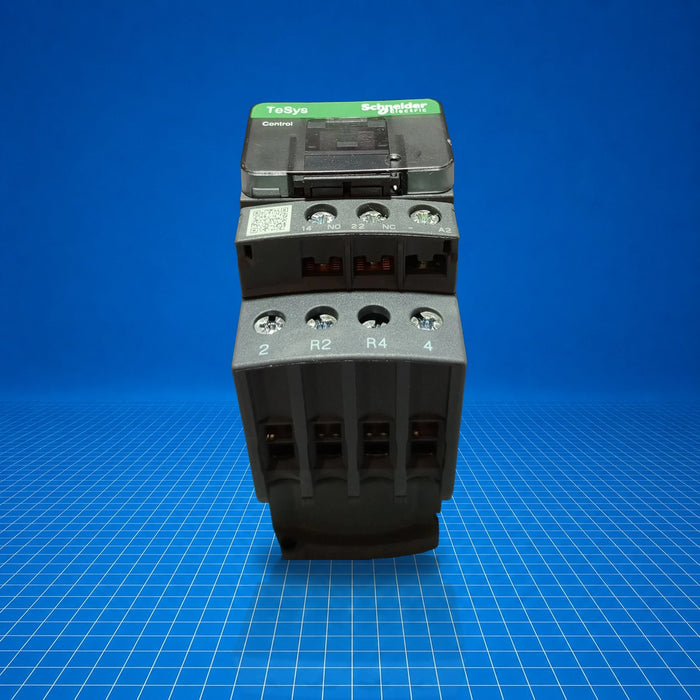

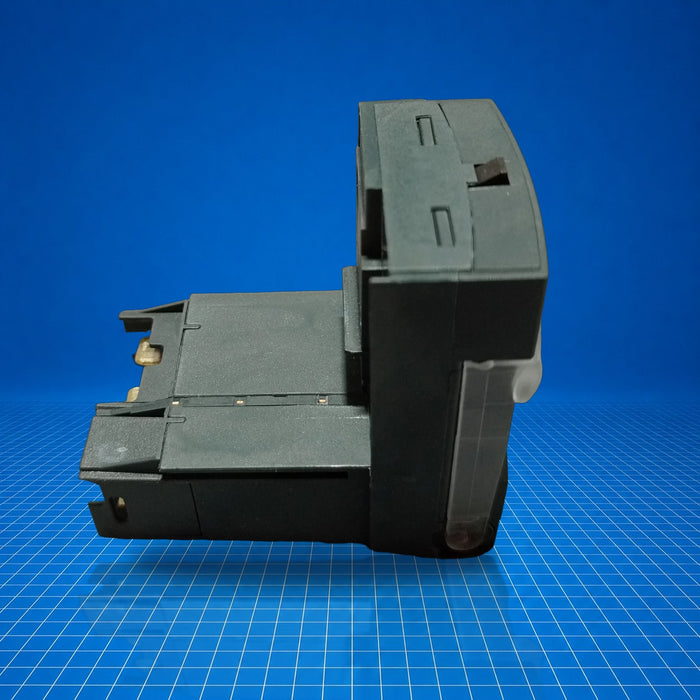

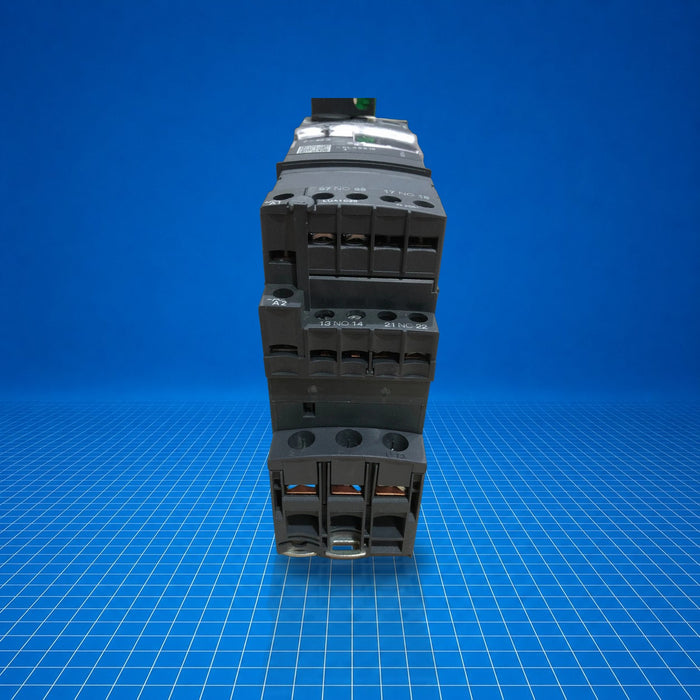

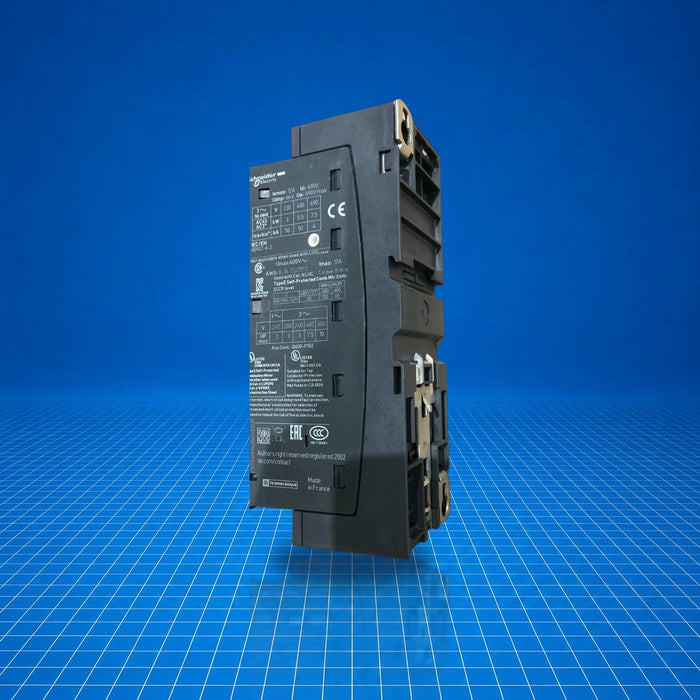

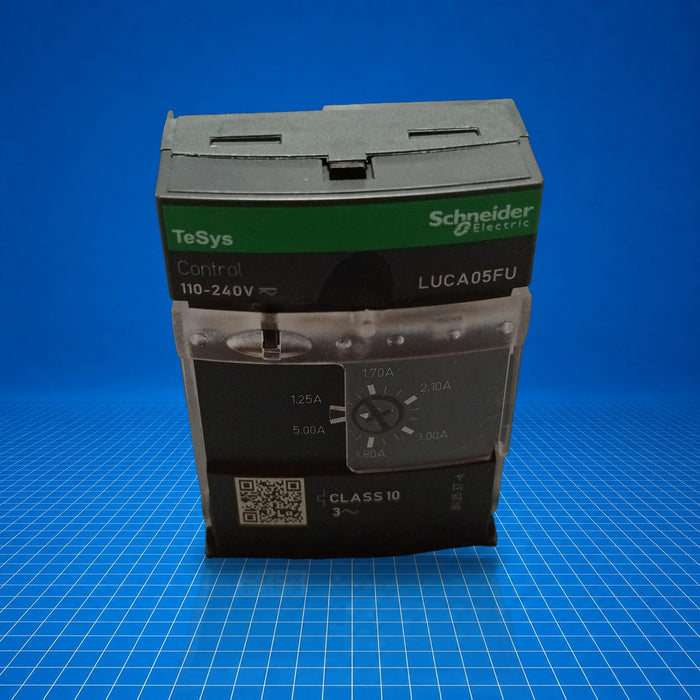

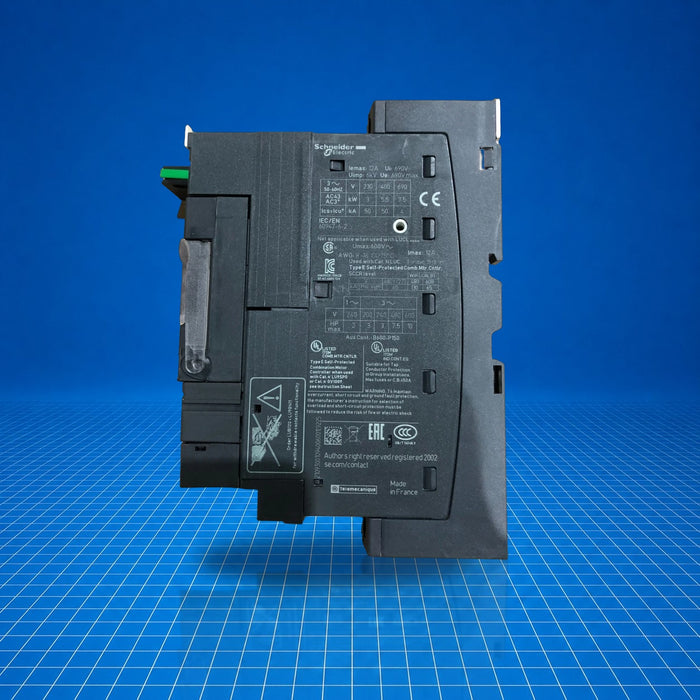

LUCA05FU Schneider Electric
Original price
$408.00
-
Original price
$450.00
Original price
$408.00
$408.00
-
$450.00
Current price
$408.00
Trusted By
Product Details
Specifications provided for reference. Verify critical details against official manufacturer documentation before installation.
Product Overview
The LUCA05FU is a TeSys Ultra standard control unit by Schneider Electric, part of the TeSys U family. It serves as the controller module in motor starter assemblies, providing thermal and magnetic protection (class 10) for three-phase and single-phase motors in combination with LUB power bases. It offers basic motor protection including overload, short-circuit, phase failure, phase imbalance, and earth fault functions. LUCA05FU accepts a control coil voltage of 110-240 V AC or 110-220 V DC and is used in industrial motor control applications.
Best Suited For
- TeSys U motor starter assemblies
- Three-phase motor protection up to 3 kW at 690 V AC
- Industrial motor starter maintenance and replacements
- Basic overload and short-circuit protection tasks
- Retrofit in LUB power base systems
Adjustable current range
1.25…5 A
Control coil voltage
110…240 V AC / 110…220 V DC
Thermal class
Class 10
Protection functions
Overload, short-circuit, phase failure, imbalance, earth fault
Dimensions (W×H×D)
45 mm × 66 mm × 60 mm
Technical Specifications
I/O & Electrical
Motor current adjustment
1.25…5 A
Rated motor power
1.5 kW at 400…440 V AC; 2.2 kW at 500 V AC; 3 kW at 690 V AC
Utilisation categories
AC-41, AC-43, AC-44
Communication & Power
Control coil voltage
110…240 V AC / 110…220 V DC
Physical & Environmental
Mounting mode
Plug-in (front face)
Protection index
IP20 (front panel and wired terminals), IP20 other faces, IP40 front panel outside connection zone
Ambient temperature (operation)
-25…70 °C
Ambient temperature (storage)
-40…85 °C
Operating altitude
2000 m
Dimensions (W×H×D)
45 mm × 66 mm × 60 mm
Weight
0.135 kg
