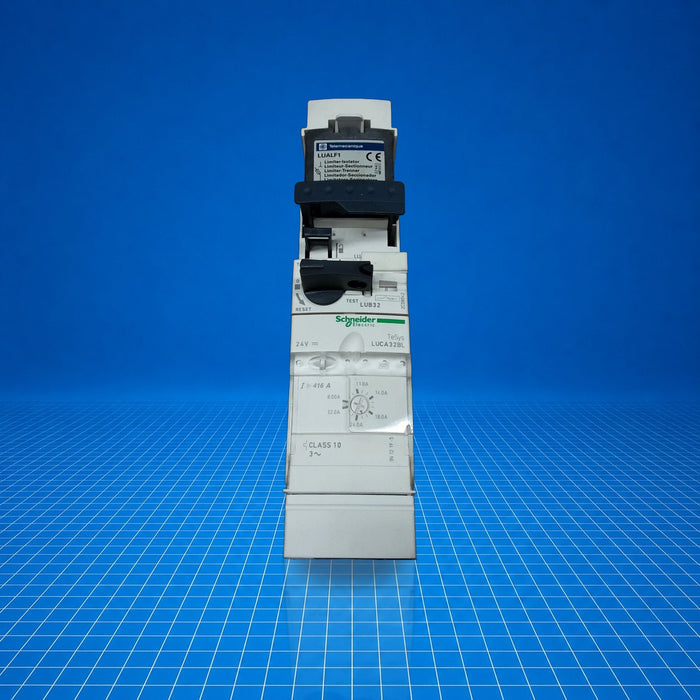

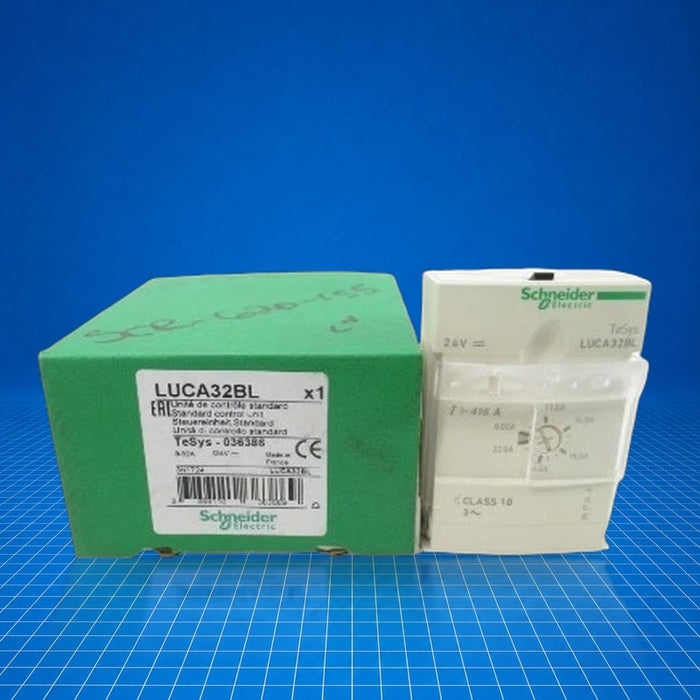

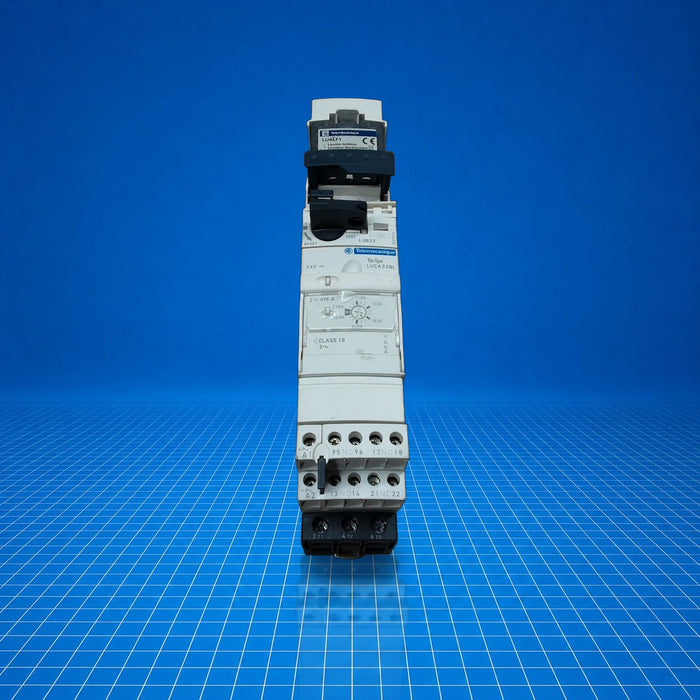

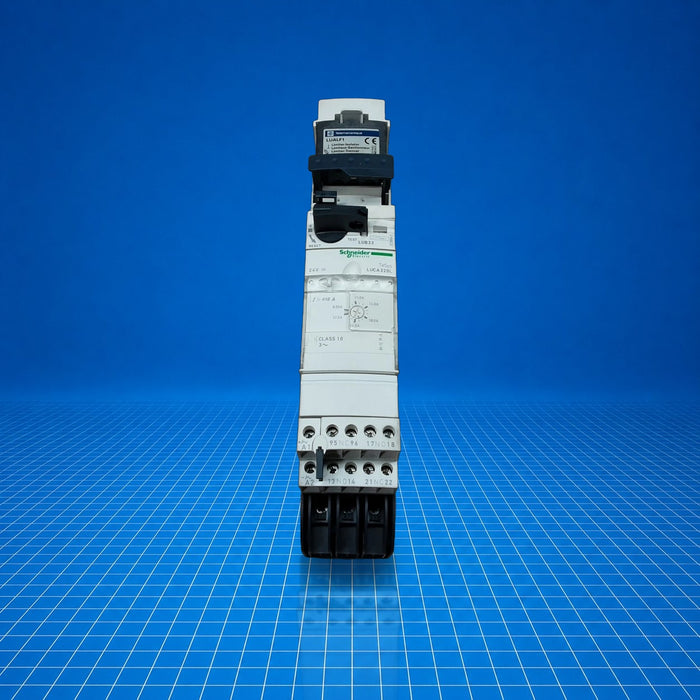

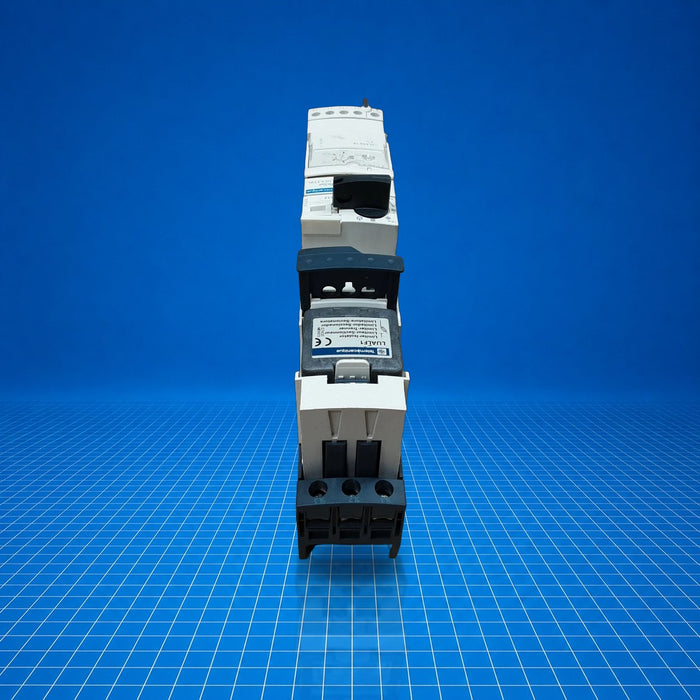

LUCA32BL Schneider Electric

Name: LUCA32BL Schneider Electric
Brand: Schneider
SKU: LUCA32BL
Price: 473.68 USD
Availability: InStock

$473.68 - $512.00

$473.68

$473.68 - $512.00

$473.68

Ships today if ordered by 1 PM CST

Overnight shipping available

Qty Available: (7) ✓ Verified Stock every 24hrs

Questions? (833) 800-7748

All products listed are sold by PLC Department, an independent supplier — not an authorized Schneider distributor. Covered by our 1-year warranty. By purchasing you acknowledge our full disclaimer. Read & agree ↓

Ships from Texas, USA

Same-day by 1 PM CST

Tested & inspected

Every unit, before it ships

1-year warranty

Backed direct by us

30-day returns

Hassle-free RMA

Stock verified / 24 hrs

Real-time availability

Photos on request

Your exact unit, ~5 min

Trusted By

Product Details

Description · Specifications · Product Overview

Specifications provided for reference. Verify critical details against official manufacturer documentation before installation.

Product Overview

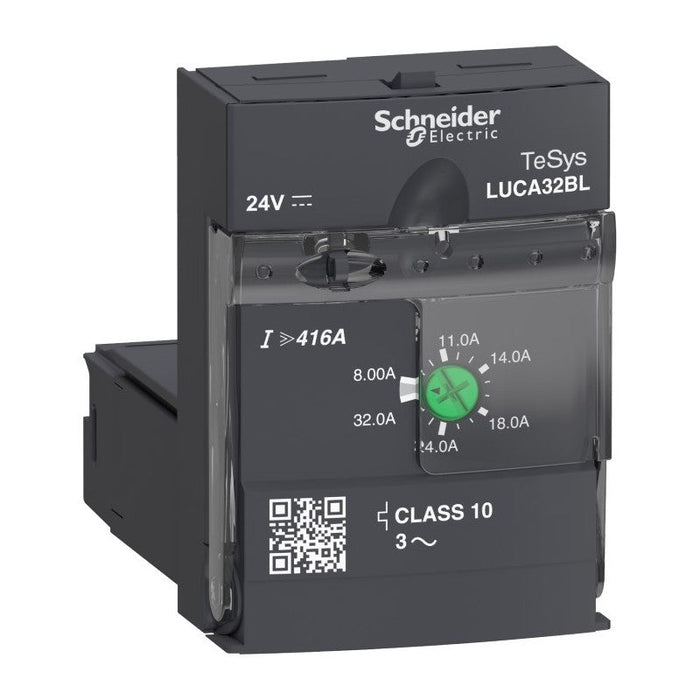

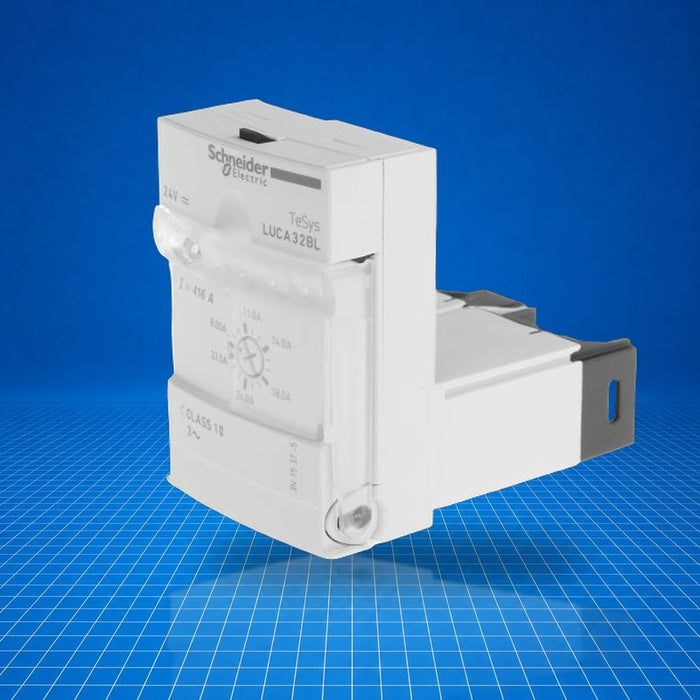

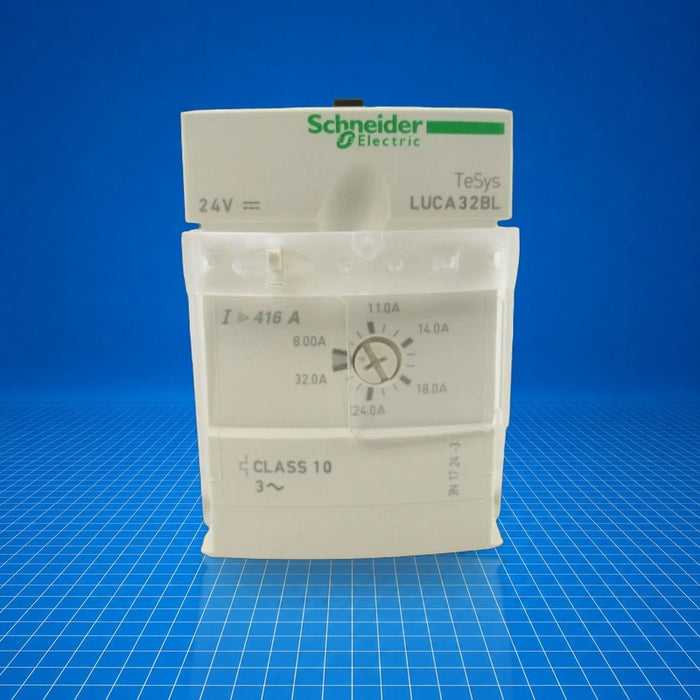

The LUCA32BL is a standard control unit in Schneider Electric's TeSys U (Ultra) family, designed for motor control and protection within motor starter systems. It combines thermal-magnetic protection (class 10) with a 24 V DC control coil, adjustable from 8 A to 32 A. Suited for three-phase, self-cooled motors up to 690 V AC, it protects against overload, short-circuit, earth-fault, phase failure, and imbalance. The LUCA32BL interfaces with Schneider TeSys U power bases such as LUB32 and supports modular, plug-in installation. LUCA32BL typically serves as the replaceable electronic module in combination motor starters.

Best Suited For

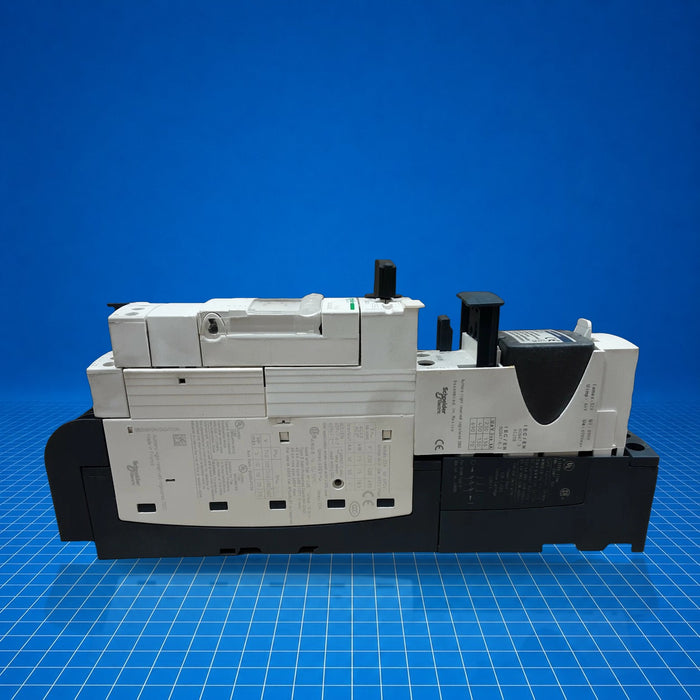

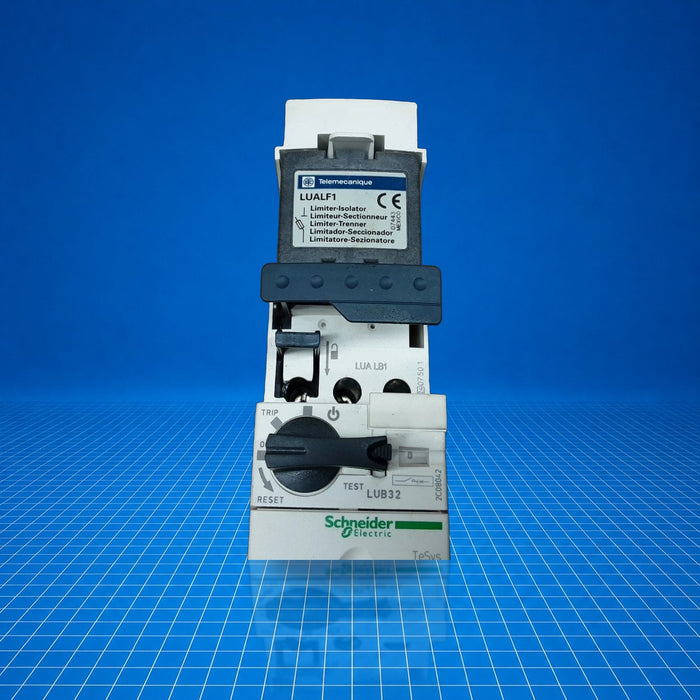

TeSys U motor starter assemblies (e.g. with LUB32 base)
Three-phase self-cooled motor protection systems
Applications requiring adjustable thermal-magnetic protection (8-32 A)
Maintenance scenarios requiring quick plug-in replacement of control units

Control coil voltage

24 V DC

Current adjustment range

8…32 A

Rated operational voltage

690 V AC

Protection functions

Overload, short-circuit, earth-fault, phase failure, phase imbalance

Technical Specifications

I/O & Electrical

Rated operational voltage (Ue)

690 V AC

Current adjustment range

8…32 A

Network frequency

40…60 Hz

Communication & Power

Control coil voltage

24 V DC

Physical & Environmental

Load type

3-phase motor, self-cooled
