Product Details
Specifications provided for reference. Verify critical details against official manufacturer documentation before installation.
Product Overview

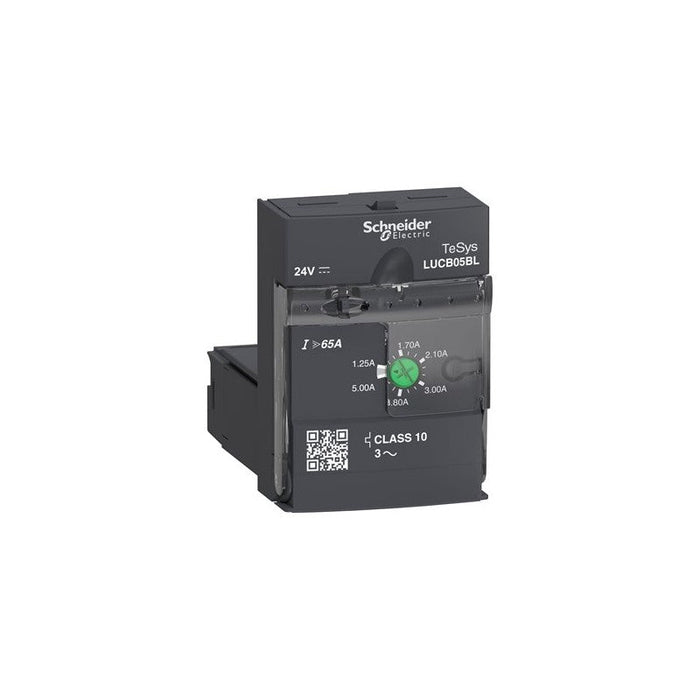

The LUCB05BL is a TeSys U advanced control unit (class 10) for motor starters with adjustable current range of 1.25-5 A and a 24 V DC control coil. It integrates overload and short-circuit protection into the control module and mounts onto compatible TeSys U power bases. Typical installations include three-phase motor control applications requiring plug-and-play modularity and manual reset protection.
Best Suited For
- Modular motor starter assemblies using TeSys U power bases
- Applications requiring adjustable 1.25-5 A motor protection
- Three-phase motor control with class 10 overload protection
- Systems needing plug-and-play advanced control units
Current setting range
1.25-5 A
Protection class
Class 10
Control coil voltage
24 V DC
Protection functions
Overload and short-circuit
Technical Specifications
I/O & Electrical
Current setting range
1.25-5 A
Protection functions
Overload and short-circuit
Communication & Power
Control coil voltage
24 V DC
Typical current consumption
130 mA at 24 V DC (closing)
Power circuit max insulation voltage
690 V AC
Rated insulation voltage (control)
600 V UL 508 / 690 V IEC 60947-1
Physical & Environmental
Width
45 mm
Height
145 mm
Depth
126 mm
Product weight
0.9 kg
Heat dissipation
2 W (control circuit)
Certifications
UL 508 ListedIEC 60947-1CSA C22.2 No 14
Conforms to UL 508, IEC 60947-1, CSA C22.2 No 14, rated impulse withstand voltage 6 kV, mechanical durability 15 million cycles.
