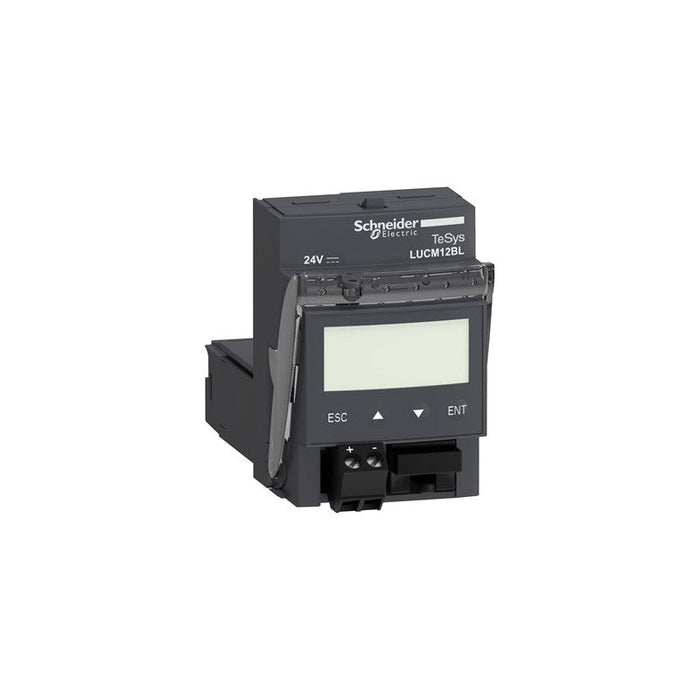

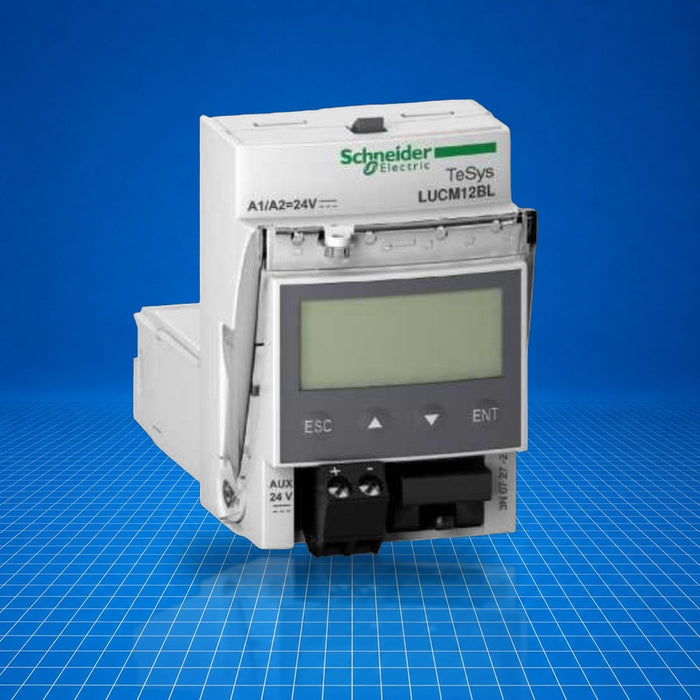

LUCM12BL Schneider Electric
Original price
$0.00
-
Original price
$800.00
Original price
$800.00
$0.00
-
$800.00
Current price
$800.00
Trusted By
Product Details
Specifications provided for reference. Verify critical details against official manufacturer documentation before installation.
Product Overview
The LUCM12BL is a TeSys U family multifunctional control unit, part of Schneider Electric's TeSys U motor starter platform. Serving as a protection and diagnostic module, LUCM12BL provides thermal overload, short-circuit, phase-loss and imbalance protection, along with local display of electrical measurements, parameter settings and event diagnostics. It operates in conjunction with TeSys U power bases for motor control in industrial applications such as machinery control panels, motor protection circuits, and local diagnostics.
Best Suited For
- TeSys U motor starters up to 12 A range
- Applications requiring local display of electrical values and alarms
- Replacement/upgrade of basic control units with multifunction features
- Control system installations with Modbus-capable diagnostics
Setting range
3 - 12 A
Display
LCD, 2 lines × 12 characters
Interface
4-button keyboard
Communication
RJ45 RS-485 Modbus
Technical Specifications
I/O & Electrical
Setting range (A)
3 - 12 A
Communication & Power
Communication port
RJ45 (RS-485 Modbus)
Display
LCD, 2 lines × 12 characters
Interface keys
4-button keyboard
Physical & Environmental
Coil voltage options
24 V DC (code BL); also available AC/DC 48-72 V (ES), 110-240 V (FU)
Mounting
Mounts on TeSys U power base
Display location
Local panel on unit
