LV430409 Schneider Electric

Name: LV430409 Schneider Electric
Brand: Schneider
Price: 3291.2 USD
Availability: InStock

$0.00 - $3,291.20

$3,291.20

$0.00 - $3,291.20

$3,291.20

Ships today if ordered by 1 PM CST

Overnight shipping available

Qty Available: (4) ✓ Verified Stock every 24hrs

Questions? (833) 800-7748

All products listed are sold by PLC Department, an independent supplier — not an authorized Schneider distributor. Covered by our 1-year warranty. By purchasing you acknowledge our full disclaimer. Read & agree ↓

Ships from Texas, USA

Same-day by 1 PM CST

Tested & inspected

Every unit, before it ships

1-year warranty

Backed direct by us

30-day returns

Hassle-free RMA

Stock verified / 24 hrs

Real-time availability

Photos on request

Your exact unit, ~5 min

Trusted By

Product Details

Description · Specifications · Product Overview

Specifications provided for reference. Verify critical details against official manufacturer documentation before installation.

Product Overview

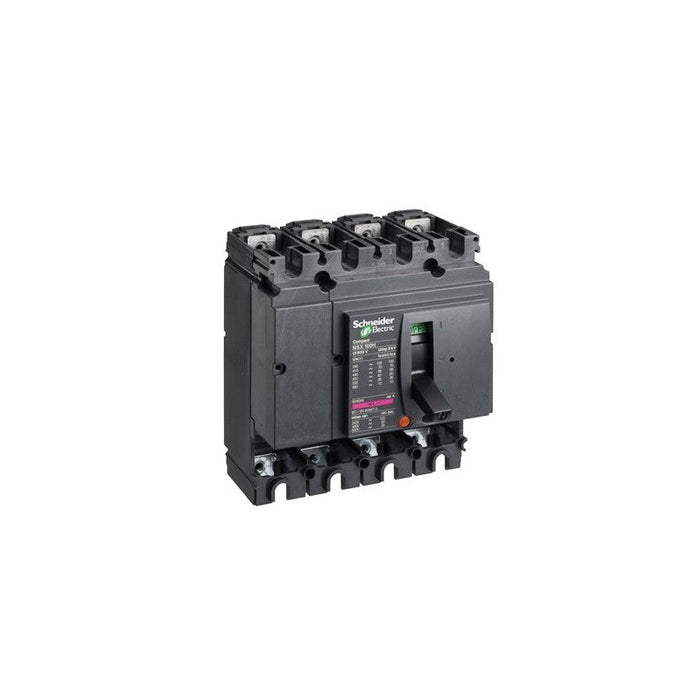

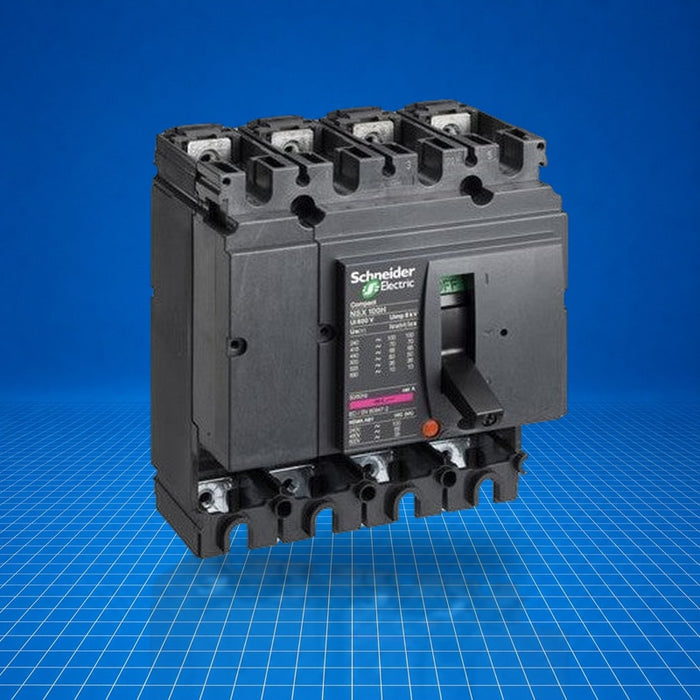

The LV430409 is the basic frame of a Compact NSX160H 4-pole circuit breaker from Schneider Electric, rated at 160 A frame rating without an integrated trip unit. It is part of the ComPacT NSX family, intended for use in low-voltage power distribution systems. The LV430409 serves as a foundational component into which protective trip units (e.g., MicroLogic or TMD types) are mounted to provide overload and short-circuit protection. It is suited for industrial panelboards, switchboards, and motor feeder protection applications where modularity and flexibility are required. LV430409 is now discontinued as of November 20, 2023.

Best Suited For

Industrial low-voltage distribution panels
Modular protective system designs where trip units are field-installed
Retrofit or replacement in ComPacT NSX160H frameworks
Applications requiring 4-pole breaker frames

Frame rating

160 A

Poles

4 P

Breaking capacity

70 kA at 415 VAC

Rated insulation voltage

800 V AC

Discontinued

Nov 20, 2023

Technical Specifications

I/O & Electrical

Rated current (In)

160 A at 40 °C

Rated operational voltage (Ue)

690 V AC 50/60 Hz

Breaking capacity (Icu)

70 kA at 415 V AC

Rated insulation voltage (Ui)

800 V AC 50/60 Hz

Communication & Power

Suitability for isolation

Yes (IEC 60947-2)

Utilisation category

Category A

Physical & Environmental

Mounting mode

Fixed, backplate support

Connection pitch

35 mm

IP rating

IP40

Impact protection (IK)

IK07

Ambient operating temperature

-25…70 °C

Storage temperature

-50…85 °C

Width

140 mm

Height

161 mm

Depth

86 mm

Certifications

IEC 60947-2UL 60947-4-1
