M9R41225 Schneider Electric
Product Details
Specifications provided for reference. Verify critical details against official manufacturer documentation before installation.
Product Overview

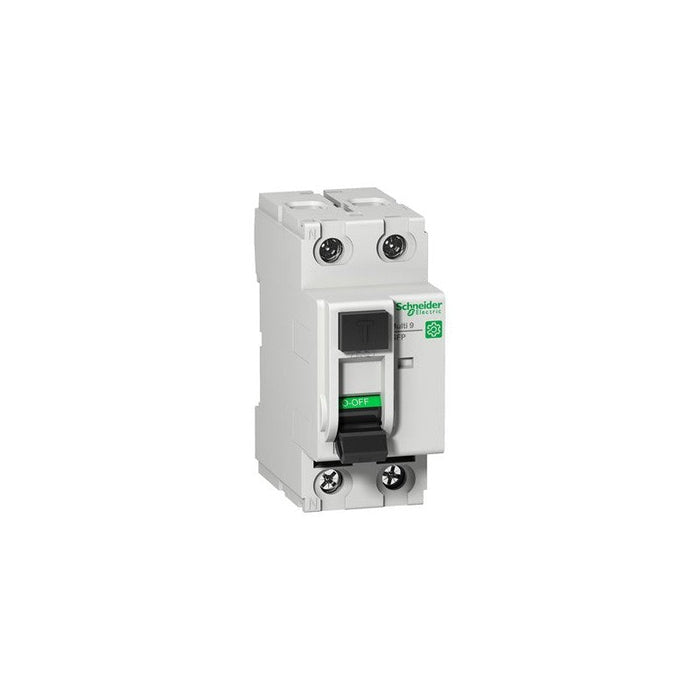

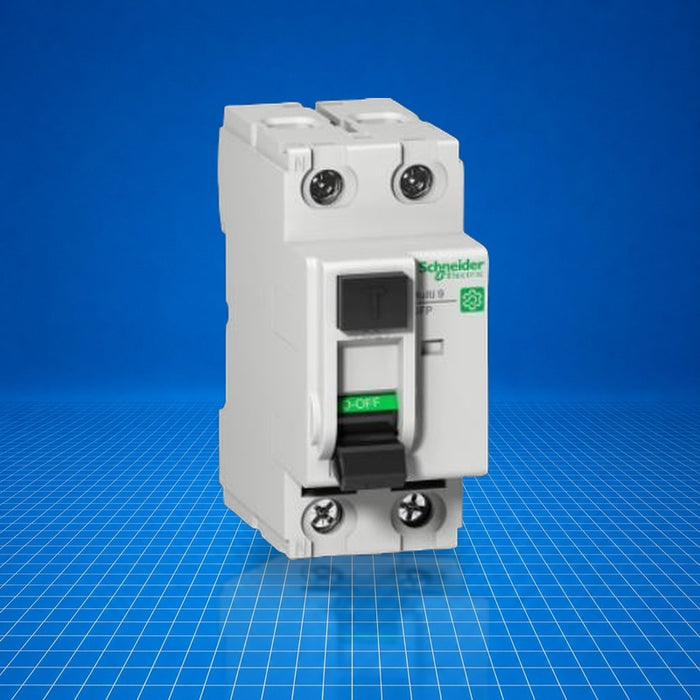

The Schneider Electric M9R41225 is a Multi 9 series ground-fault protector (GFP), UL 1053 A-SI type, 2-pole unit with 25 A rating and 30 mA sensitivity, designed to monitor leakage currents in two-pole circuits. It is part of the Miniature and Molded Case Circuit Breakers family and is used to detect ground-fault conditions and interrupt the circuit to prevent electric shock and equipment damage in industrial environments.
Best Suited For
- Detection of ground-faults in two-pole AC circuits
- Environments with humid or corrosive atmospheres (A-SI type)
- Panel-mounted protection in compact control panels
- Safety compliance in industrial electrical installations
Technical Specifications
I/O & Electrical
Physical & Environmental
Certifications
UL 1053 and IEC/EN 61008-1 compliant (Multi 9 GFP series).
