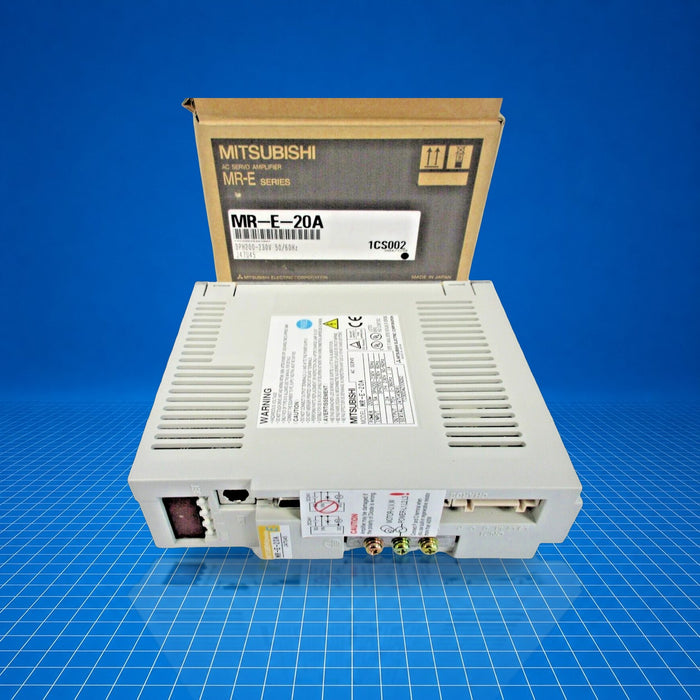

Product image is representative; revision or series may vary.
Contact us to request a specific version.
Contact us to request a specific version.
MR-E-20A Mitsubishi
Original price
$360.21
-
Original price
$1,375.00
Original price
$360.21
$360.21
-
$1,375.00
Current price
$360.21
Trusted By
Product Details
Specifications provided for reference. Verify critical details against official manufacturer documentation before installation.
Product Overview
The MR-E-20A is a Mitsubishi Electric MELSERVO-E series general-purpose AC servo amplifier, introduced in 2009 and discontinued in 2016. It occupies an intermediate position in the MR-E product family, providing 0.2 kW (200 W) output at 170 V AC to control compatible servo motors, such as HC-KFE or HC-SFE series. In a motion control system, it functions as the drive interface between control logic (e.g., PLC) and the servo motor. It is typically used in basic automation, packaging, or simple machine tool applications for replacement or maintenance purposes.
Best Suited For
- Legacy MR-E servo systems (discontinued units)
- Replacement in older packaging/machine tool equipment
- Basic point-to-point position or speed control
- Environments with MR-E compatible HC-KFE/HC-SFE servo motors
Output power
0.2 kW
Output voltage
170 V AC (3-phase)
Input voltage
200-240 V AC (single- or three-phase)
Cooling / IP rating
Natural-cooling, open (IP20)
Weight
0.7 kg (≈ 1.54 lb)
Technical Specifications
I/O & Electrical
Input voltage range
200-240 V AC (single- or three-phase)
Output voltage
170 V AC (3-phase)
Output power
0.2 kW
Communication & Power
Built-in dynamic brake
Yes
Physical & Environmental
Cooling / enclosure
Natural-cooling, open (IP20)
Ambient operation
0 °C to 55 °C (non-freezing)
Storage temperature
not specified
Weight
0.7 kg (≈ 1.54 lb)
Mounting screws
M5 (mount), M4 (terminals)
