MR-J2S-100A Mitsubishi

Name: MR-J2S-100A Mitsubishi
Brand: Mitsubishi
SKU: MR-J2S-100A
Price: 435.0 USD
Availability: InStock
Rating: 5.0 (1 reviews)

$435.00 - $8,593.50

$435.00

$435.00 - $8,593.50

$435.00

Ships today if ordered by 1 PM CST

Overnight shipping available

Qty Available: (4) ✓ Verified Stock every 24hrs

Questions? (833) 800-7748

All products listed are sold by PLC Department, an independent supplier — not an authorized Mitsubishi distributor. Covered by our 1-year warranty. By purchasing you acknowledge our full disclaimer. Read & agree ↓

Ships from Texas, USA

Same-day by 1 PM CST

Tested & inspected

Every unit, before it ships

1-year warranty

Backed direct by us

30-day returns

Hassle-free RMA

Stock verified / 24 hrs

Real-time availability

Photos on request

Your exact unit, ~5 min

Trusted By

Product Details

Description · Specifications · Product Overview

Specifications provided for reference. Verify critical details against official manufacturer documentation before installation.

Product Overview

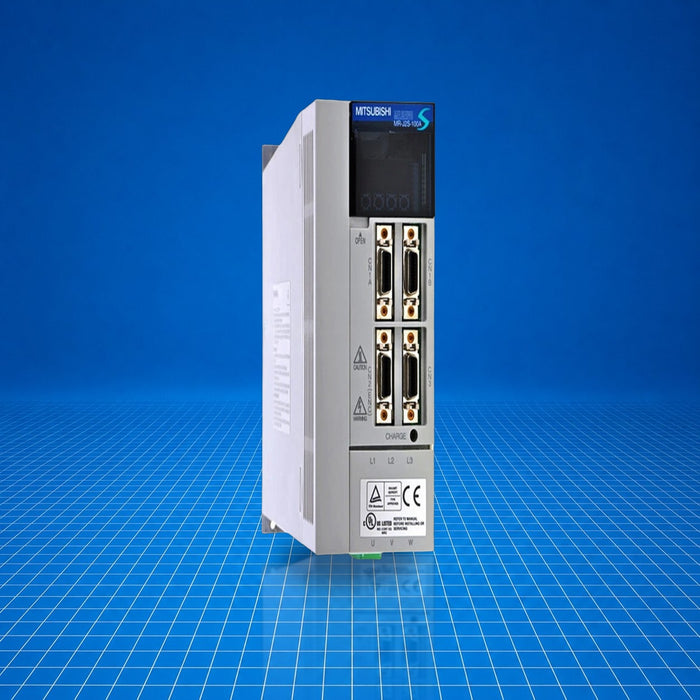

The MR-J2S-100A is a general-purpose AC servo amplifier in Mitsubishi Electric's MR-J2S family of legacy servo drives. Introduced in 1999 and discontinued in 2015, this amplifier provides sine-wave PWM current control and built-in dynamic braking, designed to pair with HC/HA series servo motors in servo control systems. It accepts 3-phase 200-230 VAC (50/60 Hz) power, and is typically employed for machine tool positioning, robotics, material handling, and motion control applications where precise torque and speed regulation is required. MR-J2S-100A supports command inputs via differential pulse/direction or open-collector signals and includes standard protection features.

Best Suited For

Position control with HC/HA servo motors
Machine tools and material handling systems
Replacement for MR-J2S platform in legacy systems
On-machine servo drive mounting

Power input

3-phase 200-230 VAC, 50/60 Hz

Control method

Sine-wave PWM current control

Dynamic brake

Built-in

Protection functions

Overcurrent, regenerative overvoltage, overload, motor overheat, encoder error, undervoltage, instantaneous power failure, overspeed

Technical Specifications

I/O & Electrical

Command pulse input

Differential receiver up to 500 kpps; open-collector up to 200 kpps

Analog torque command input

0 to 8 V DC (input impedance 10-12 kΩ)

Analog speed command input

0 to 10 V DC / rated speed

Communication & Power

Power supply range

3-phase 200-230 VAC, 50/60 Hz

Permissible voltage fluctuation

170 to 253 VAC (3-phase)

Permissible frequency fluctuation

Within ±5 %

Mass

≈ 1.7 kg (3.75 lb)

Physical & Environmental

Structure

Self-cooled, open (IP00)

Ambient temperature (operating)

0 to 55 °C (32 to 131 °F)

Ambient temperature (storage)

-20 to 65 °C

Ambient humidity

≤ 90 % RH (non-condensing)

Altitude

≤ 1000 m (3280 ft)

Vibration

≤ 5.9 m/s² (≈ 0.6 g), ≤ 19.4 ft/s²
